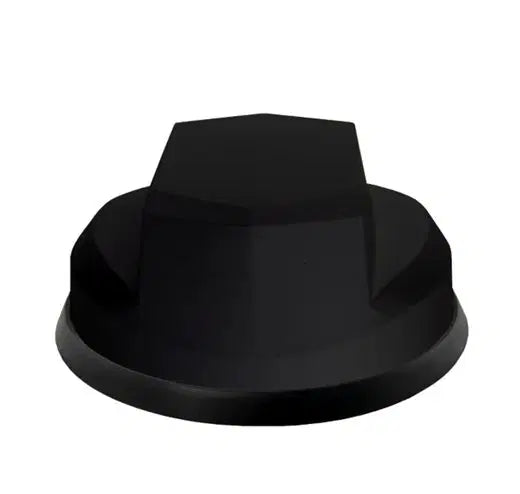

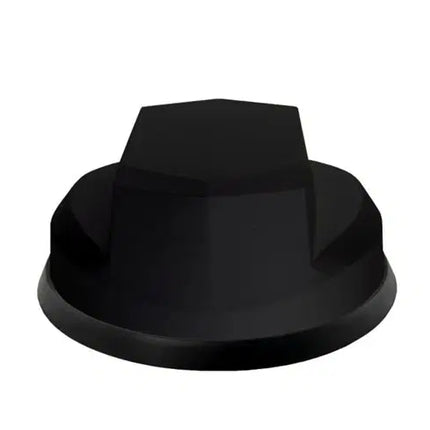

This Panorama dome combo antenna supports operation over frequency range 698-3800 MHz, 2x2 MIMO function on 5G, 4x4 MIMO function for Wi-Fi and an active GPS/GNSS element. The antenna maintains a high level of performance even when mounted on a non-metallic surface. The Panorama Great White 2x2 MIMO 3G/4G/5G, 4x4 Wi-Fi, GPS/GNSS Antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection. The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2x2 4G/5G MIMO performance from 617-960/1427-6000MHz in a robust low profile package. The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6x6 MIMO Wi-Fi 6e / 7 covering 2.4/4.9-7.2GHz. The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications. The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in band interference. The antenna meets IK10 for vandal resistance and IP69K for ingress protection. The range has been certified to EN50155 and EN45545-2 and is suitable for many tram and light rail applications.

Product Features:

• Consists of up to 9 elements:
• Two isolated high-performance antenna elements covering 617-960/1710-6000 MHz offer MIMO/diversity at cellular/LTE frequencies.
• Up to 6 optional dual-band elements covering 2.4 & 7.2 GHz support MiMo/diversity operation for WiFi.
• An optional high-performance GPS/GNSS antenna with an integrated 26 dB gain LNA and high-quality filtering offers unparalleled positioning accuracy.
• Does not require a metallic ground plane.
• Maintains a high level of performance even when mounted on non-metallic surfaces.

Documents:

Panorama LGMQMB-6-60-24-58 MIMO Antenna - Datasheet
