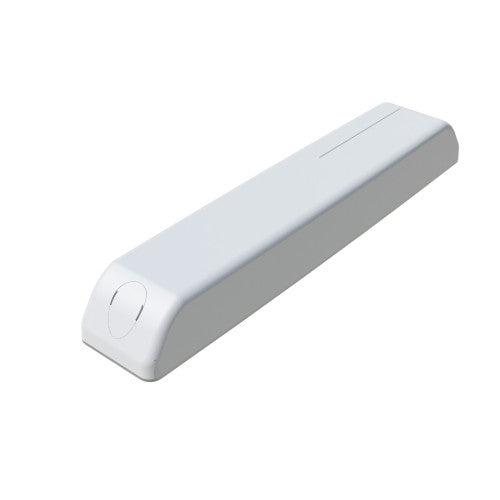

Panorama LPW-BC3G-26-2SP Low Profile Wall Mount Antenna, 698-2700 MHz, 2m, SMA-Male

Panorama LPW-BC3G-26-2SP Low Profile Wall Mount Antenna, 698-2700 MHz, 2m, SMA-Male

On backorder

Brand:
Item ID:
165022096
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LPW-BC3G-26-2SP
Send Request for Quote (RFQ) Discount Offers
Panorama LPW-BC3G-26-2SP 3G-4G Low profile, wall panel or enclosure mountMount by screw fixings or adhesive pad Supports 3G/4G, 698-960/1710-2700MHz
Regular price $115.00
Regular price $0.00 Sale price $115.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Panorama LPW-BC3G-26-2SP 3G-4G

The antenna can be installed using the supplied automotive grade adhesive pad or via the integrated screw mounting bosses. If the antenna is panel mounted the cable can be routed through a hole in the adhesive pad to run invisibly into the panel behind.

Product variation:

Part Number Cable Connector
LPW-BC3G-26-2SP 2m RG174 SMA Plug (m)

Product Specifications

MPN LPW-BC3G-26-2SP
Antenna cable type RG174
Antenna port connectors SMA (M)
Brands Panorama
Cable length m 2
Coverage type Omni-directional
Height 1.96
Ingress protection ip IP66
Installation type External mounting
GTIN/EAN 5715063158555
Length 3.2
Low pim No
Max frequency mhz 2700
Max gain dbd dbi 2
Mimo support No
Min frequency mhz 698
Min gain dbd dbi 2
Mount supported Adhesive mount
Mount supported detailed Adhesive mount
No of antenna ports 1
Power w 20
Technologies supported 2G, 3G, 4G
Width 16.5
