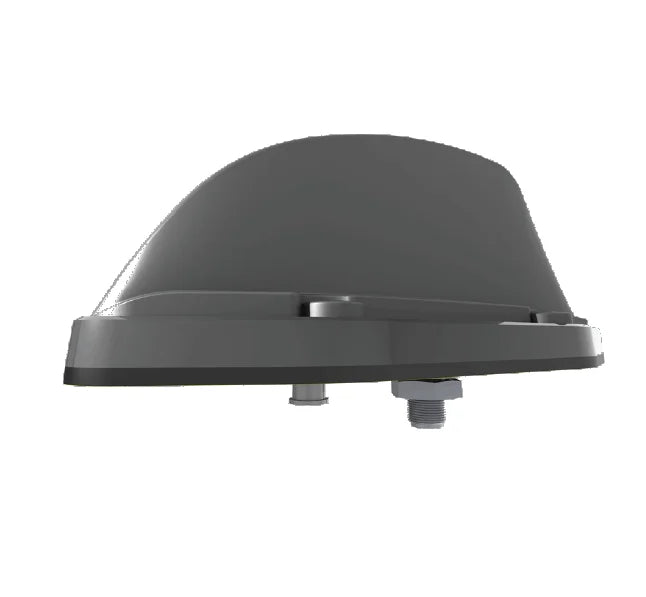

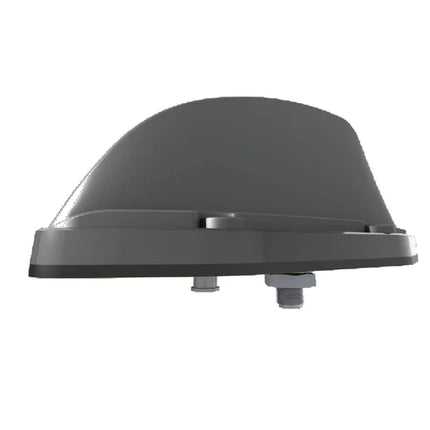

Panorama TRNCG-7-60 Transit Antenna, 4G-5G, WiFi, GNSS

    Panorama TRNCG-7-60 Transit Antenna, 4G-5G, WiFi, GNSS

      Product form
      Brand:
      Panorama
      Item ID:
      165022101
      MPN:
      TRNCG-7-60
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Panorama TRNCG-7-60 3G-5G WiFi GNSS Transit Antenna covers GSMR, and trunking bands along with all cellular and GSM frequencies, 2.4 & 5.8GHz WLAN

      Sold-out

      $689.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        Panorama TRNCG-7-60 3G-5G WiFi GNSSTransit Antenna meets stringent industry standards including EN50I55, EN45545-2 (HLI-3), EN50124 (40 KA 100 MS) and is ingress protected to IP69K when properly installed.

        Product Specifications

        Brand Panorama
        Length 26
        Width 8.7
        Height 11
        Antenna Port Connectors N (F), TNS (F)
        Coverage Type Omni-directional
        Ingress Protection (IP) IP67
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 6000
        Max Gain (dBd/dBi) 10
        MIMO Support No
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) 5
        Mount Supported Screw mount
        Mount Supported - Detailed Screw mount
        No. of Antenna Ports 1
        Power [W] 60
        Technologies Supported Wi-Fi, 2G, 3G, 4G, 5G, GPS
