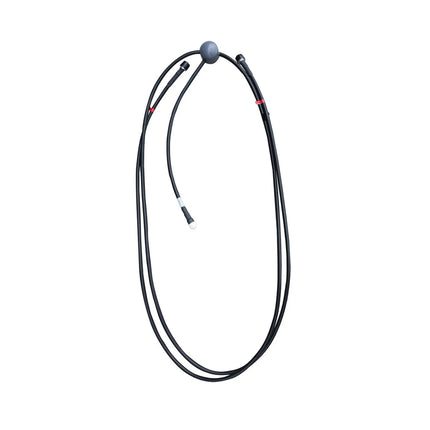

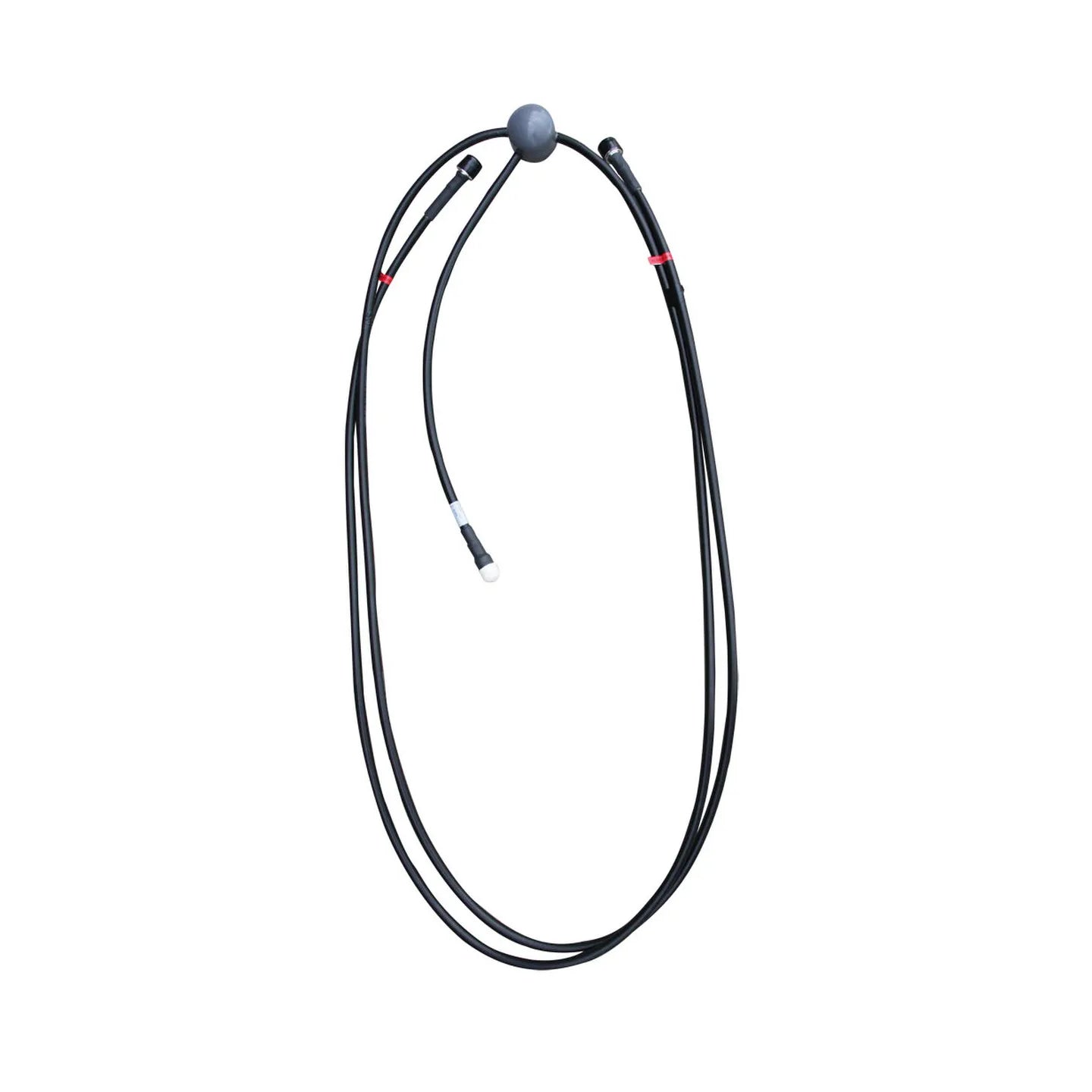

The RFI PH12-24 Phasing Harness is part of the PH Series 2-Way Harness range, designed for VHF antenna systems using side-mounted dipole or smaller Yagi antennas. The PH Series harnesses are standard solutions and are widely used in commercial, government, and industrial RF systems. For larger Yagi configurations requiring greater antenna spacing, the PHE Series (Extended Length) harnesses are recommended.

Product Features:

• Standard PH Series 2-way phasing harness for VHF applications.
• Designed for use with side-mounted dipole and smaller Yagi antennas.
• Provides impedance matching and proper phase distribution for array configurations.
• Factory-assembled for reliable performance and reduced installation time.
• Durable construction for long-term use in outdoor and industrial environments.

Application Areas:

• VHF radio communications systems requiring multi-antenna configurations.
• Broadcast and repeater stations using side-mount dipole arrays.
• Utility, transportation, and emergency networks with vertically polarized arrays.
• Installations requiring stable gain and controlled radiation patterns through phasing.

In the Box:

• 1 x RFI PH12-24 Phasing Harness (pre-terminated)

Documents:

RFI PH & PHE Series Phasing Harnesses - Datasheet RFI PH & PHE Series Phasing Harnesses - Installation Guide
