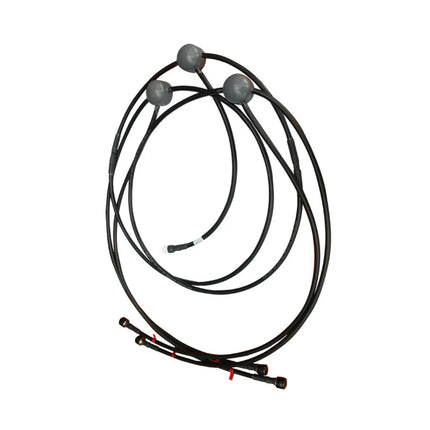

The RFI PH14-24 Phasing Harness is part of RFI's PH Series 4-way phasing harnesses, designed for VHF antenna systems using side-mounted dipole and smaller Yagi antennas. This harness is specifically optimized for use with custom antennas in the 70-85 MHz range and provides precise phase control and impedance matching for four antenna outputs. For larger Yagi arrays with extended spacing requirements, the PHE Series is recommended.

Product Features:

• 4-way VHF phasing harness for use with side-mounted dipole and small Yagi antenna arrays.
• Supports operation within the 70-85 MHz frequency range.
• Designed for custom antennas specific frequency must be specified during setup.
• Ensures accurate phase distribution and impedance matching across four antenna elements.
• Pre-assembled and factory tested for reliable field performance.

Application Areas:

• Side-mount dipole arrays in VHF communications systems.
• Custom-engineered phased antenna arrays in commercial, rail, and government radio networks.
• Environments requiring controlled pattern shaping and directional gain from multi-antenna systems.

In the Box:

• 1 x PH14-24 4-Way VHF Phasing Harness (pre-terminated)

Documents:

RFI PH & PHE Series Phasing Harnesses - Datasheet RFI PH & PHE Series Phasing Harnesses - Installation Guide
