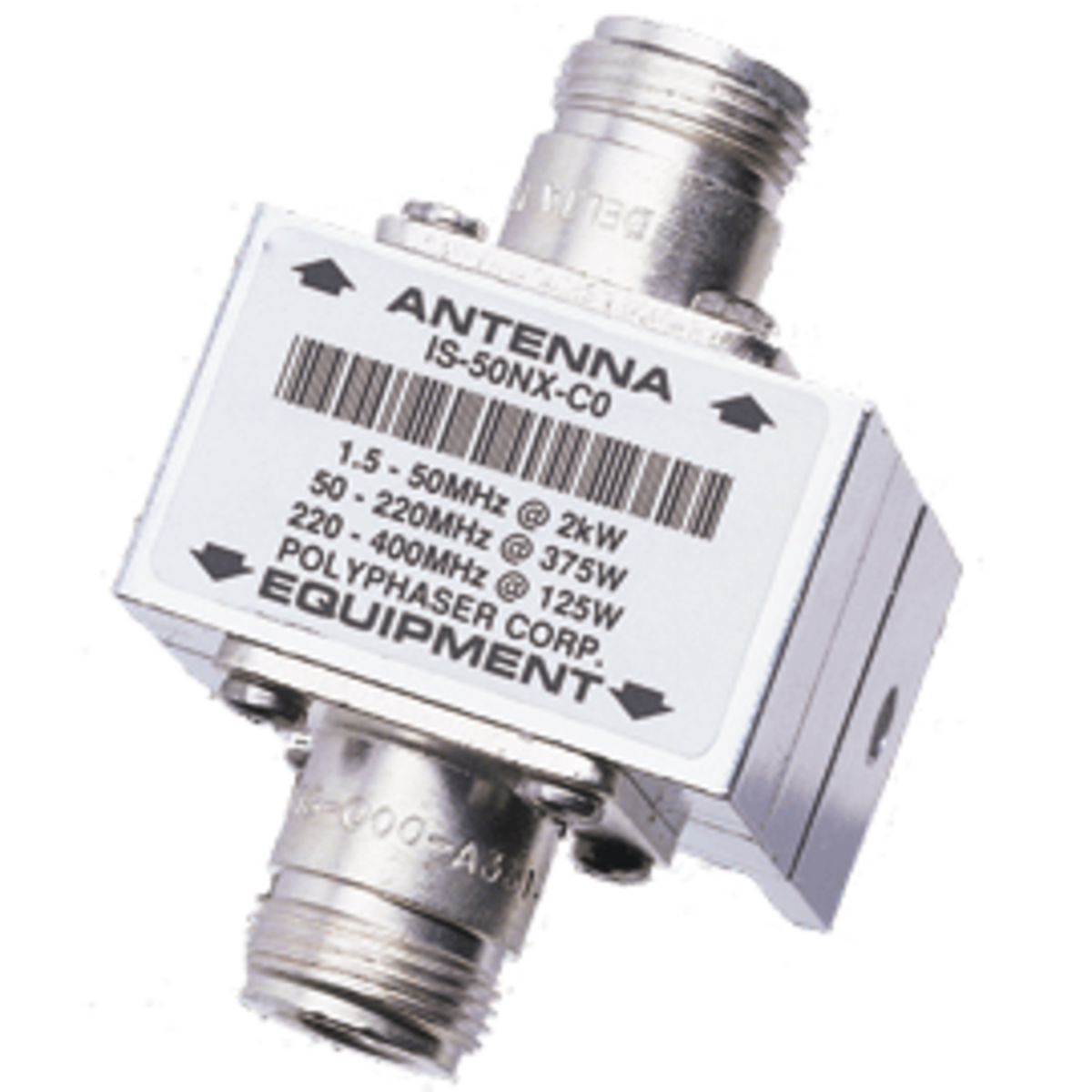

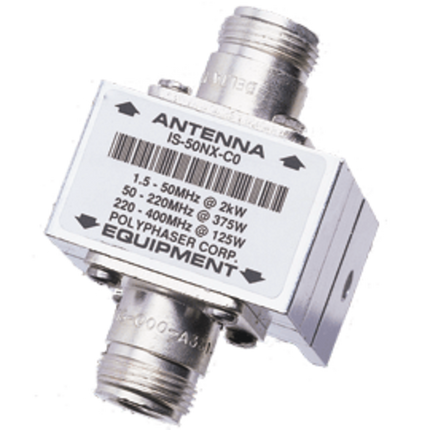

The PolyPhaser IS-50NX-C0 Coaxial RF Surge Protector is a powerful and efficient solution for protecting your equipment from lightning strikes and power surges. With a frequency range from 1.5 MHz to 700 MHz, this surge protector is designed to provide reliable protection across a wide range of applications.

Product Features:

• This surge protector can handle a surge current of 50kA.
• The maximum power rating is 2kW.
• It operates within a frequency range from 1.5 MHz to 700 MHz.
• The device features N Female to N Female connectors.
• It has a VSWR of less than 1.1:1.
• The surge protector has multi-strike capability.
• It is CE and RoHS compliant.
• The device integrates an RF blocking capacitor with a gas tube (GT or GDT).
• It is manufactured in a coaxial in-line design.

Application Areas:

• This surge protector is suitable for HF, UHF, and VHF radios.
• The device can be used for ham radios.
• It is ideal for remote industrial monitoring.
• The surge protector is also suitable for other RF communication systems.

In the Box:

• 1 x PolyPhaser IS-50NX-C0 Coaxial RF Surge Protector

Documents:

PolyPhaser IS-50NX-C0 Surge Protector - Datasheet PolyPhaser IS-50 Series Surge Protector - Datasheet
