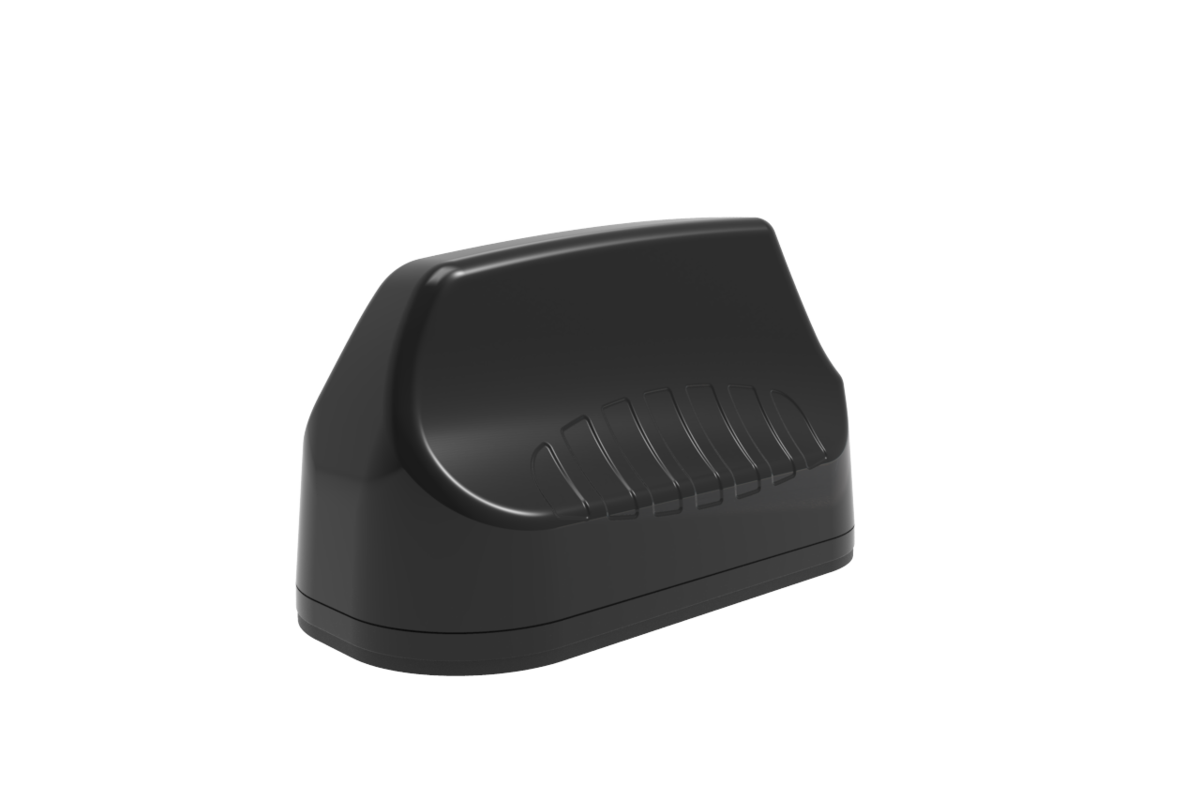

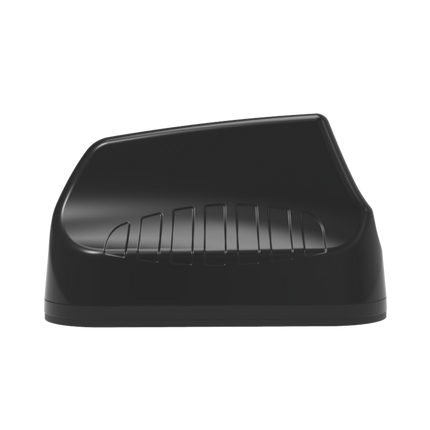

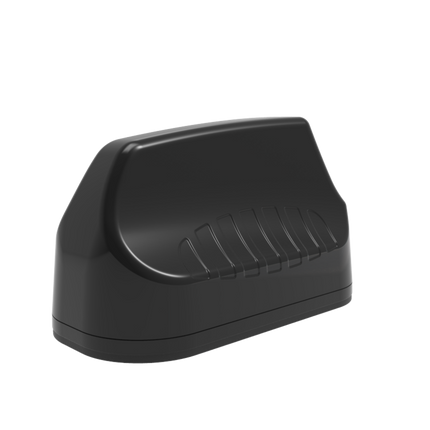

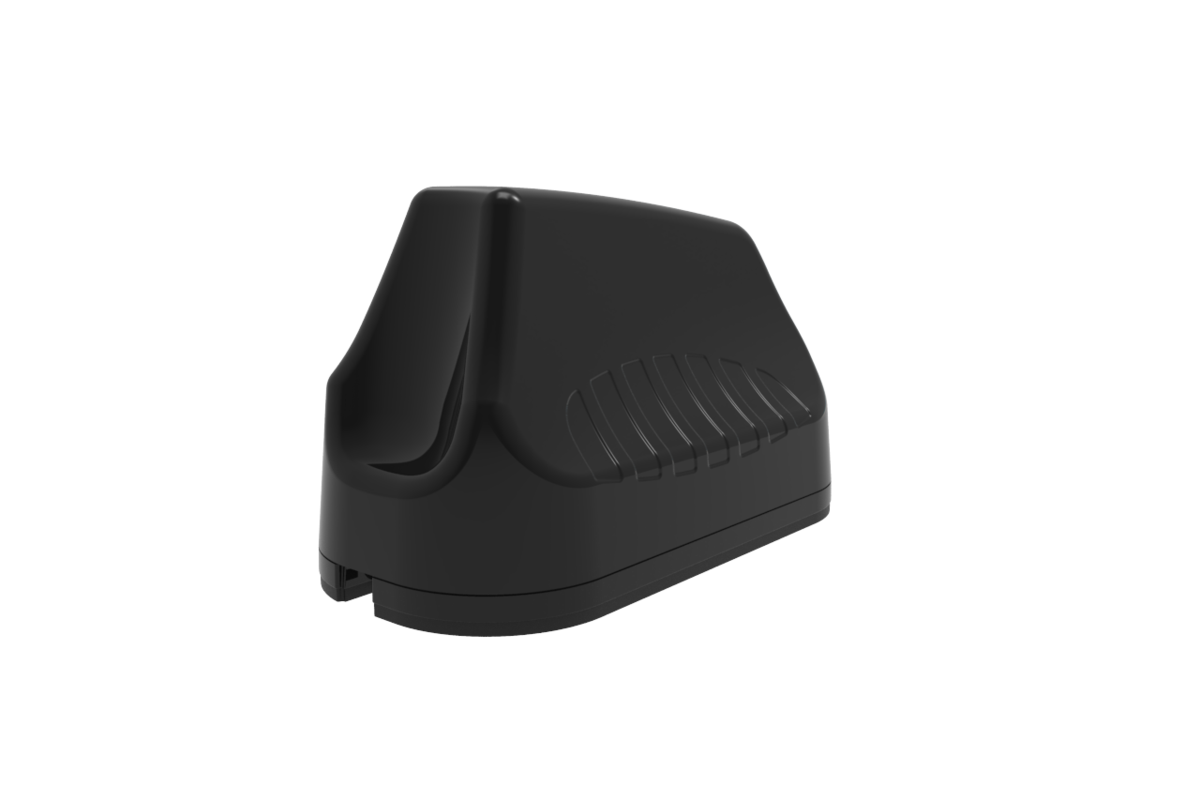

Poynting HELI-51 Circular Polarised Uni-Directional 2x2 MIMO Mine/Tunnel Wi-Fi Antenna (5000-6000 MHz); 14 dBi, features a uni-directional design. It is specifically engineered for deployment in mining vehicles and equipment within tunnels. Offering Left-Hand Circular (LHC) and Right-Hand Circular (RHC) polarization, it ensures optimal decorrelation in MIMO deployments, enhancing reliability and link stability. The circular polarisation allows the Wi-Fi signal frequency to propagate around tunnel bends in a non-line of sight scenario. This provides improved performance with enhanced link stability and reliability.
Product Features:
- The antenna is available in both left-hand and right-hand circular polarisation for superior MIMO performance and enhanced RF reliability.
- The antenna is equipped with two 5.0 GHz Wi-Fi ports and supports 2x2 MIMO configurations, optimizing wireless communication in challenging underground environments.
- It radiates in a single direction within tunnels, providing focused coverage that is ideal for telemetry, mining automation, and other critical applications.
- The antenna is built to withstand harsh environments with an IK10 rating, ensuring durability under extreme conditions.
- It is IP69K rated for superior protection against water and dust ingress, making it resilient in demanding operational settings.
Application Areas:
- It supports communications, telemetry, and automation (M2M & IoT) for mining vehicles and heavy machinery.
- It enables industrial factory automation, robotic machinery operations, and other machine-to-machine telemetry systems.
- It creates comprehensive underground in-tunnel connections for vehicle tracking and personnel safety.
In the Box:
- Poynting A-HELI-0051-V1-01 Antenna - Black
Documents:
Poynting HELI-51 Antenna - Datasheet
