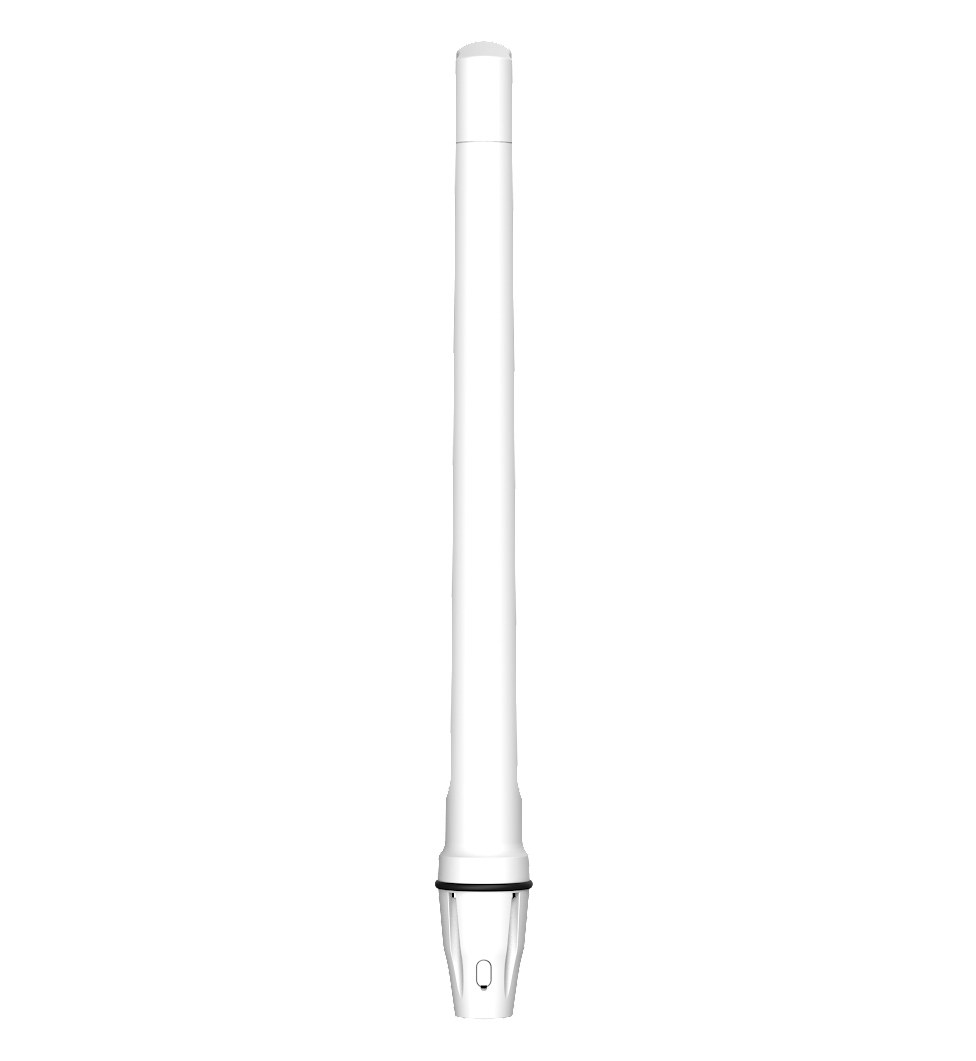

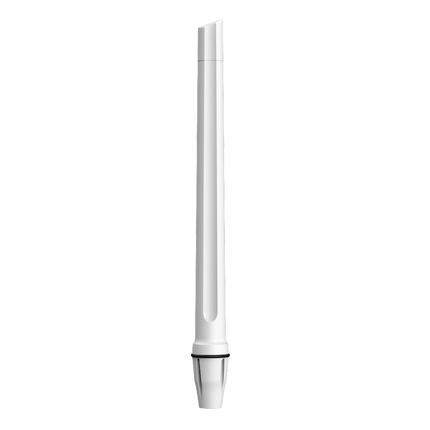

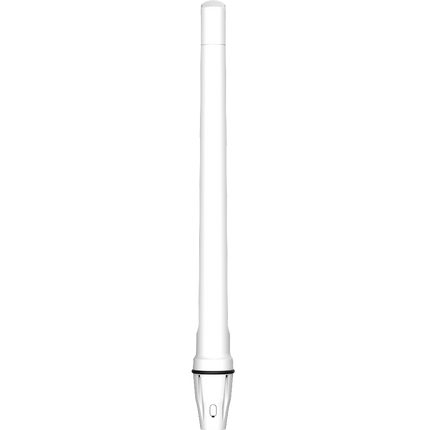

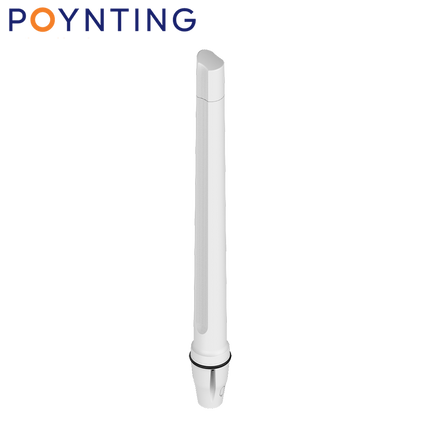

The Poynting OMNI-414 Omni-Directional, 4×4 MIMO Marine & Coastal 5G/LTE Antenna; 617 – 3800 MHz, 4 dBi, 2m SMA/m is an ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with excellently balanced gain across all frequencies from 617 to 3800 MHz This antenna also offers 4×4 MIMO capability from its vertically separated radiating elements, all in the same single radome. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-414 a true omnidirectional 4×4 MIMO antenna, suitable for marine and coastal applications. The antenna also comes with an IP68 protection rating against dust and water ingress, making it ideal for most severe storms at sea. The radome is also fully saltwater protected so that it can be used in highly corrosive environments, thanks to the UV-stable ASA radome material. The OMNI-414 guarantees signal reception almost everywhere and is usable in all parts of the world. The ultra-wideband performance makes the antenna future-proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use.

Product Features:

• The 4×4 MIMO design delivers improved performance and enhanced data throughput.
• It provides wideband omni-directional coverage from 617 MHz to 3800 MHz.
• The antenna supports Band 71 (617–698 MHz) and the 3.5 GHz 5G band for extended spectrum compatibility.
• The robust, weather-resistant enclosure carries an IP68 rating to protect against dust ingress and water immersion.
• The UV- and salt-water-resistant housing ensures reliable operation in harsh marine environments.

Application Areas:

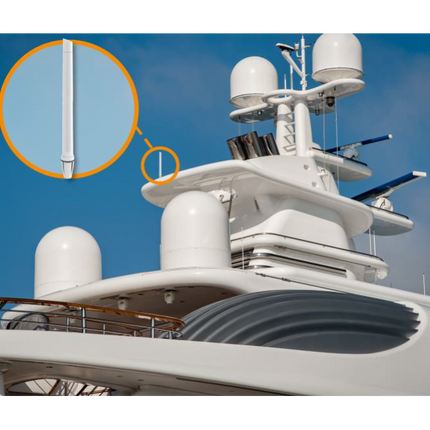

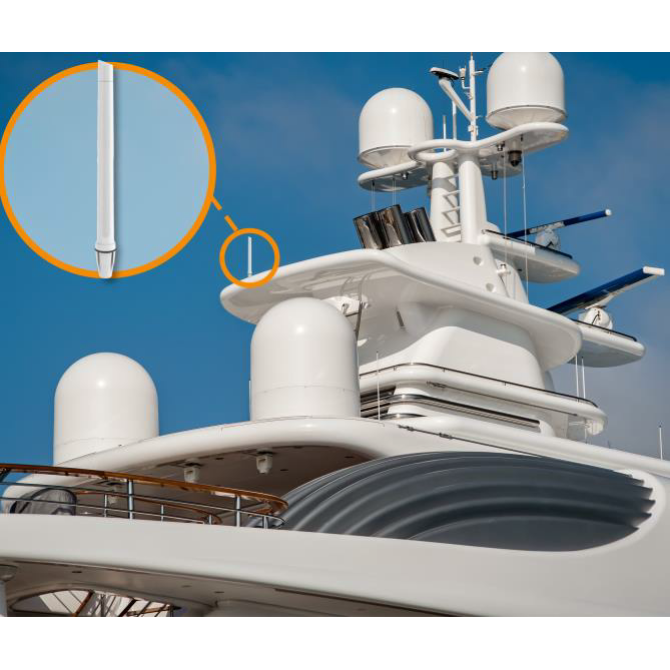

• It is ideal for marine applications, including yachts, boats, and ferries.
• The antenna enhances LTE/4G and 5G reception in challenging outdoor and maritime settings.
• It increases system transmission reliability for critical communication links.
• It supports high-end industrial-grade router installations requiring stable broadband connectivity.
• It enables industrial and commercial LTE/5G network deployments across a variety of sectors.
• It provides LTE and 5G data distribution for agricultural and farming operations in remote areas.

In the Box:

• Poynting OMNI-414 5G/LTE Marine Antenna
• 2m cable
• SMA-Male connector

Documents:

Poynting A-OMNI-0414-V1-01 Antenna - Datasheet
