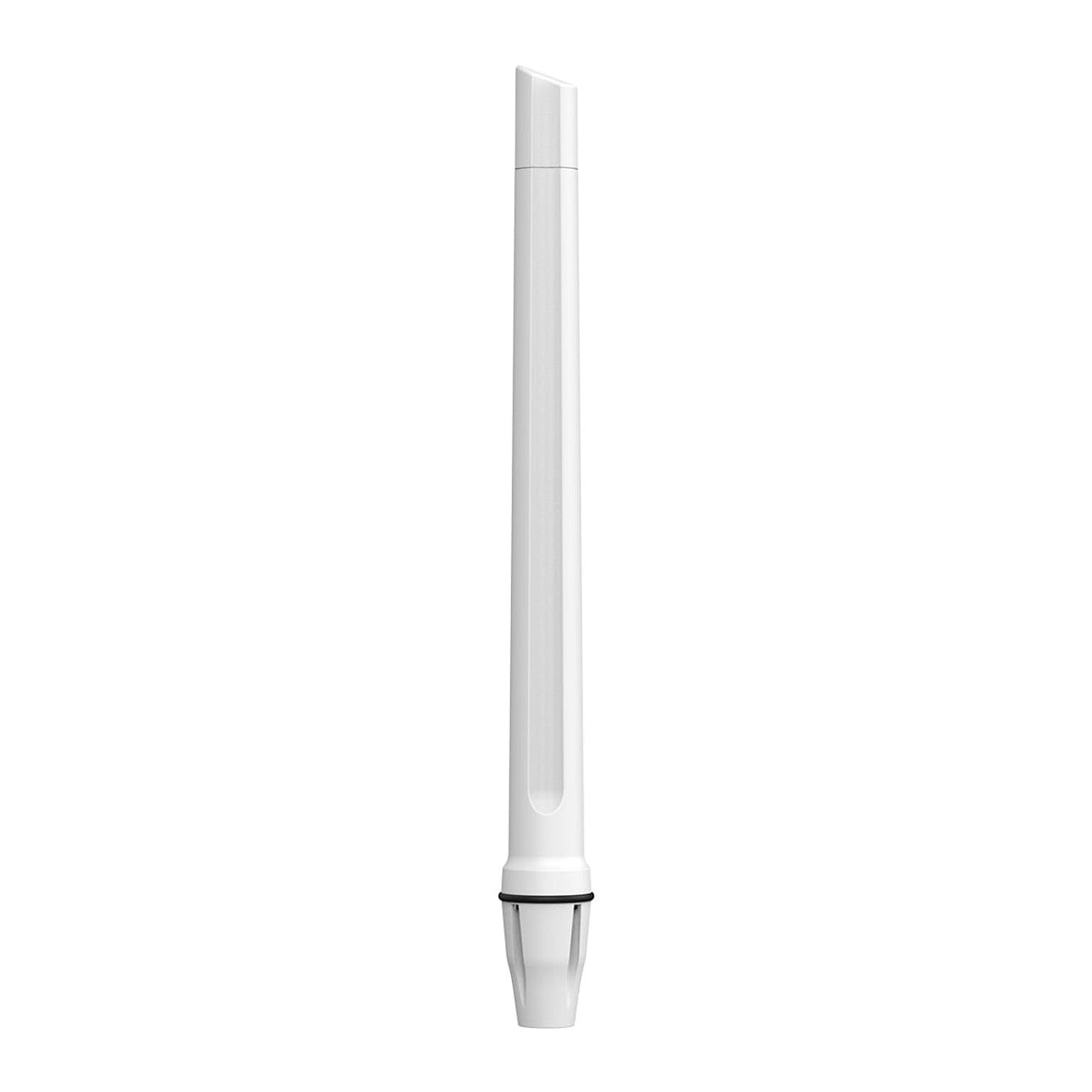

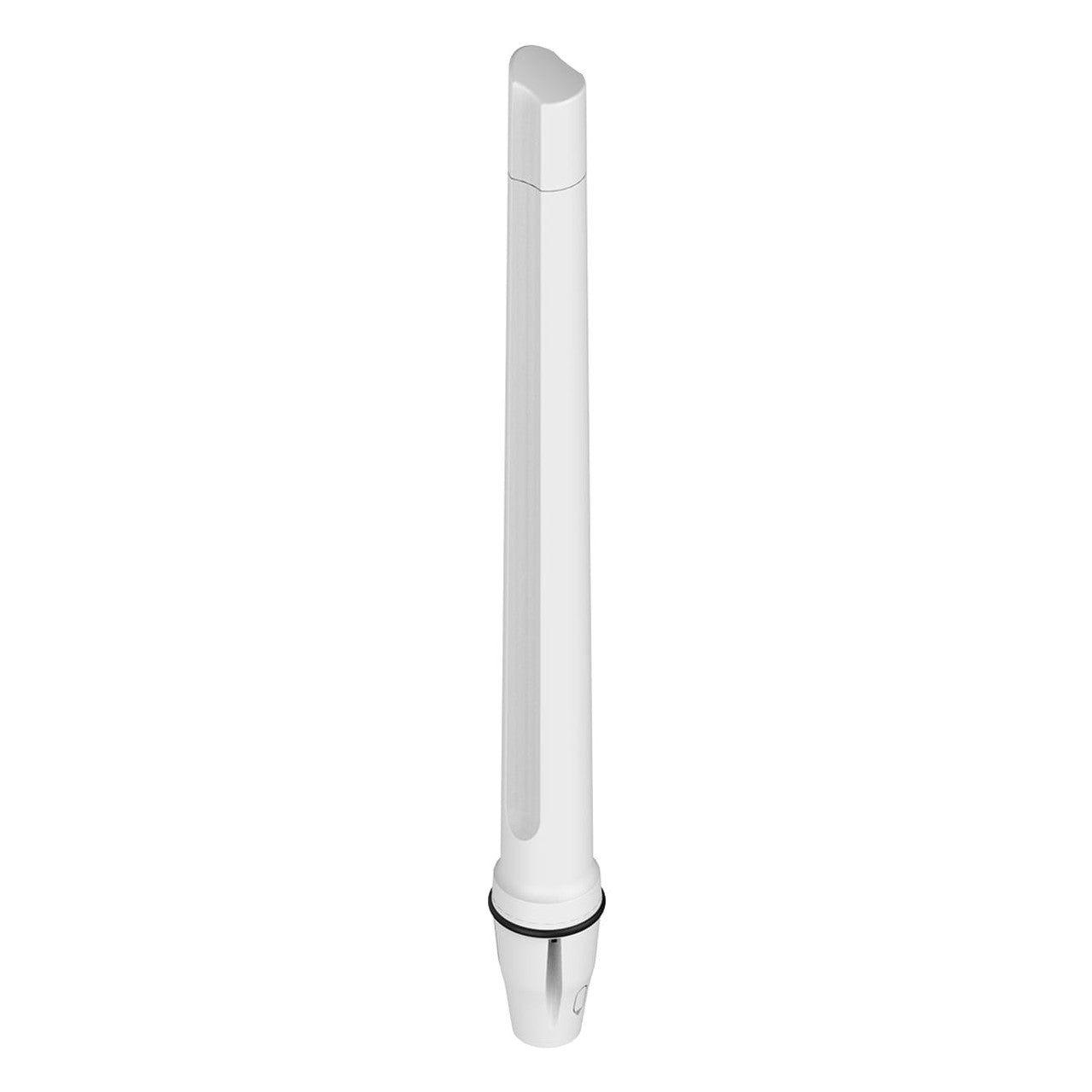

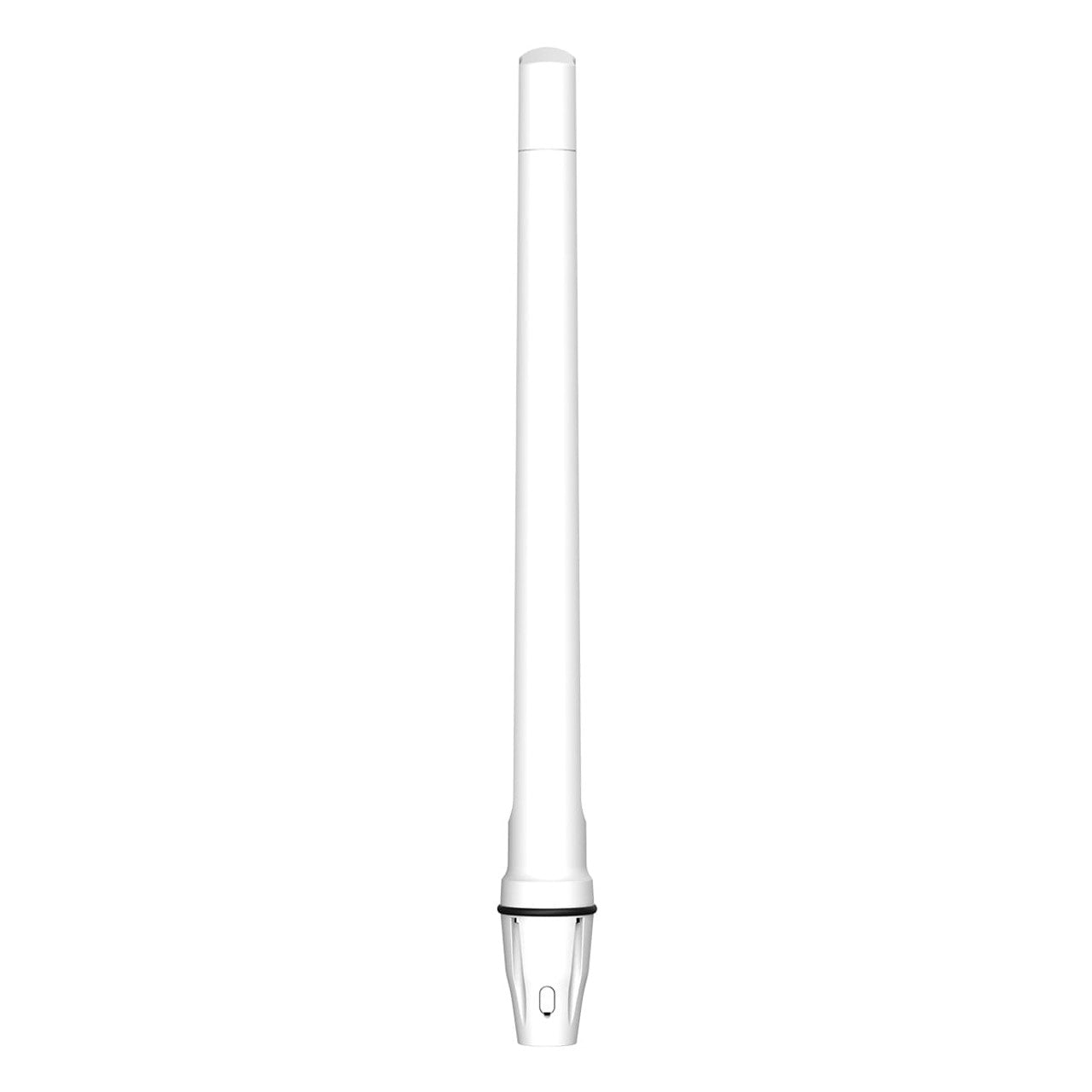

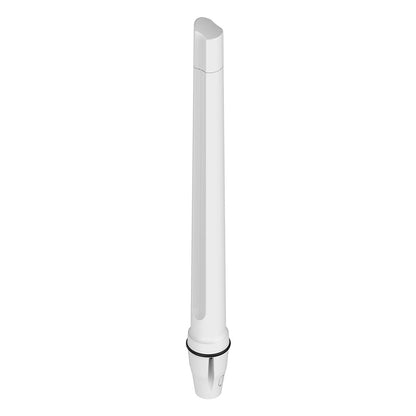

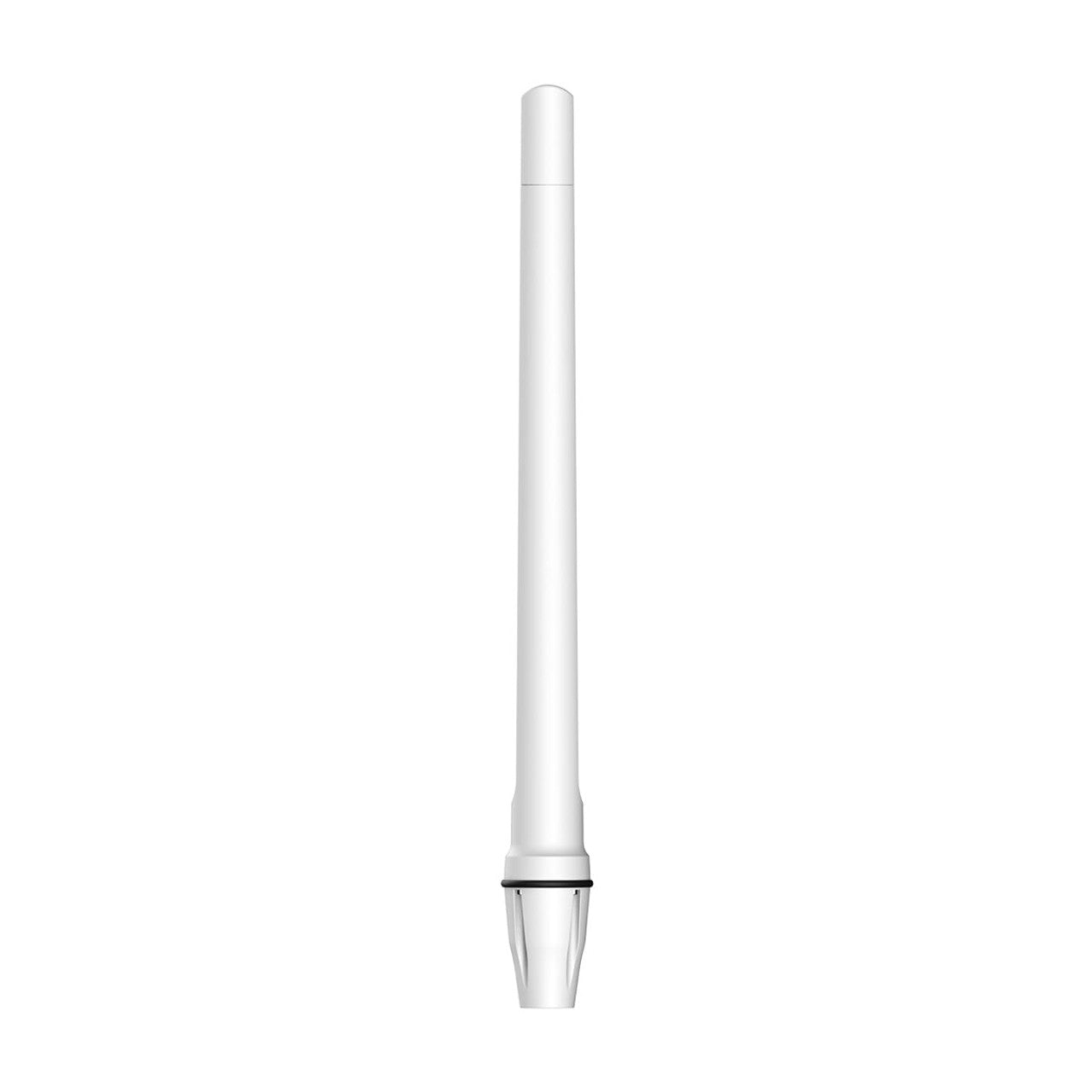

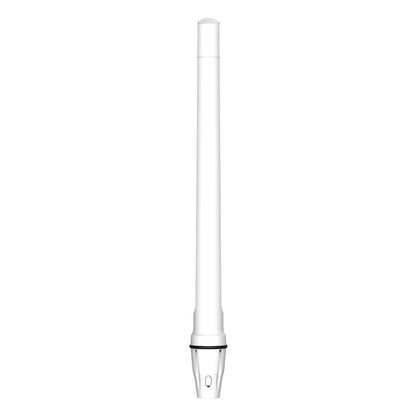

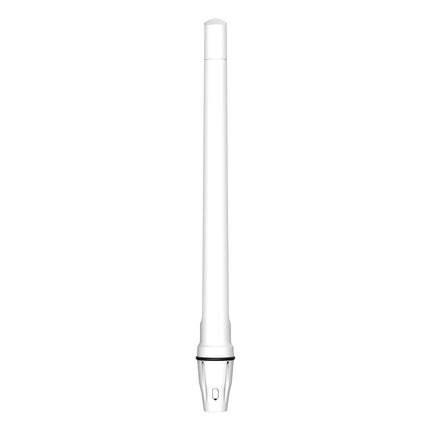

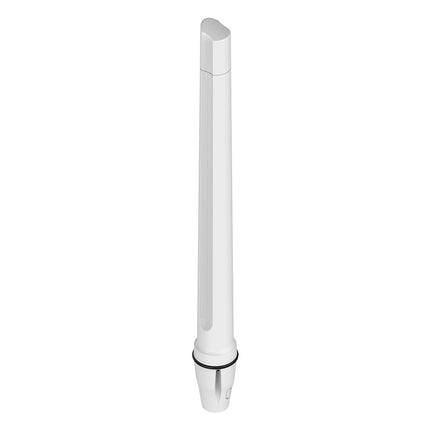

Poynting OMNI-493 5G/LTE Marine Antenna, 617-3800 MHz, 9 dBi, N-Female

Poynting OMNI-493 5G/LTE Marine Antenna, 617-3800 MHz, 9 dBi, N-Female

Available

Brand:
Item ID:
165022201
Export:
Accepted
Shipping:
Ships out in 3-4 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-OMNI-0493-V1-01
Send Request for Quote (RFQ) Discount Offers
Poynting Omni-493 Omni-Directional, Marine & Coastal LTE/5G Antenna is an ultra-wideband antenna to operate from 617 to 3800 MHz, with a peak gain of 9 dBi.
Regular price $513.00
Regular price $480.00 Sale price $513.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Poynting Omni-493 Omni-Directional, Marine & Coastal LTE/5G Antenna is an ultra-wideband, high performance, omni-directional antenna that covers the contemporary 4G/LTE and future 5G operating frequencies with excellent balanced gain across all frequencies. The ultra-wideband performance from the antenna allows it to operate from 617 to 3800 MHz, with a peak gain of 9 dBi. This makes the antenna usable in all parts of the world and guarantees signal reception almost everywhere. The antenna design allows for superior pattern control over the entire frequency range, making the OMNI-493 a true high performance omni-directional antenna, suitable for marine and coastal applications. Poynting antennas achieves this performance through new antenna design, where multiple dipoles and a unique (patented) feed network is implemented. The antenna is future proof as it covers the up and coming 617 to 698 MHz band, as well as 3400 to 3800 MHz which will be utilized for future 5G applications.

Product Features:

  • The antenna delivers high-gain omni-directional coverage for reliable signal reception.
  • It includes support for Band 71 (617–698 MHz) and the 3.5 GHz 5G bands to extend your network reach.
  • The wideband operation future-proofs the antenna for evolving LTE and 5G standards.
  • The antenna is purpose-built for marine and coastal environments to withstand harsh saltwater conditions.
  • The UV- and saltwater-resistant enclosure carries an IP68 rating for exceptional protection against water and dust ingress.

Application Areas:

  • It is ideal for marine applications, including yachts, boats, and ferries operating near coastlines.
  • The antenna enhances 4G/LTE and 5G reception in challenging outdoor or maritime settings.
  • It supports IoT and M2M applications by providing stable connectivity for remote devices.
  • The device excels in areas with poor data signal reception, boosting network reliability.
  • It improves the stability and reliability of data transmission connections for critical operations.

In the Box:

  • Poynting OMNI-493 5G/LTE Marine Antenna
  • N-Female connector

Documents:

Poynting A-OMNI-0493-V1-01 Antenna - Datasheet

Videos:

Poynting A-OMNI-0493-V1-01 Antenna - Product Overview

Product Specifications

MPN A-OMNI-0493-V1-01
Antenna port connectors N (F)
Brands Poynting
Coverage type Omni-directional
Height 10
Ingress protection ip IP68
Installation type External mounting
GTIN/EAN 6009710922262
Length 70.4
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 9
Mimo support No
Min frequency mhz 617
Min gain dbd dbi 6
Mount supported Bracket mount, Marine mount
Mount supported detailed L-bracket, Marine mount
No of antenna ports 1
Power w 10
Technologies supported 2G, 3G, 4G, 5G
Width 14.7
Wind gust km h <160
