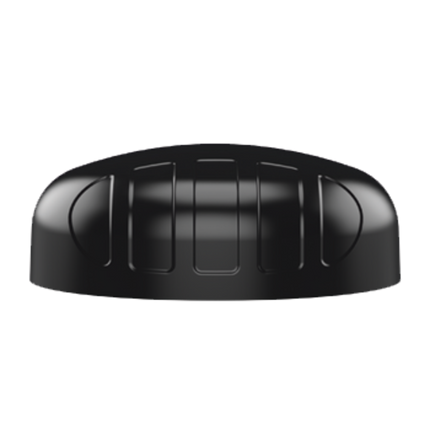

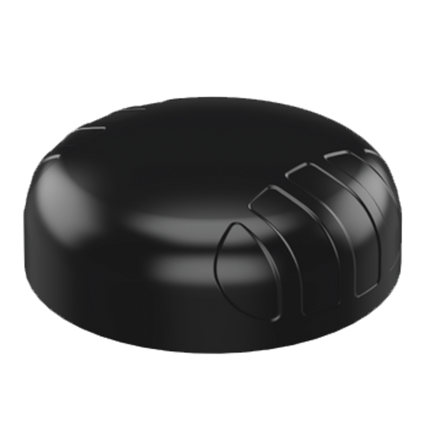

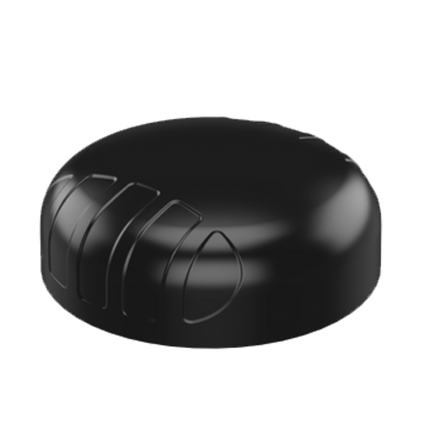

Poynting Puck-1-B Transportation Antenna, SISO, 617-4200 MHz, 2m, SMA-Male - Black

Poynting Puck-1-B Transportation Antenna, SISO, 617-4200 MHz, 2m, SMA-Male - Black

Sold out

Brand:
Item ID:
168014310
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-PUCK-0001-V1-01
Send Request for Quote (RFQ)
Poynting PUCK-1-B 5G/LTE SISO Transportation and M2M Antenna (617-4200 MHz); SMA(M) (Black) use in the IoT/M2M, smart meter, smart utilities, transportation
Regular price $109.50
Regular price $0.00 Sale price $109.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Poynting PUCK-1-B Low-Profile SISO LTE Antenna delivers broadband 617 – 4200 MHz coverage including the 3.2 – 3.8 GHz CBRS/early-5G band inside a compact Ø100 mm × 36 mm housing. Precision radiation design gives this single-element antenna balanced omnidirectionality and excellent elevation gain, ensuring stable LTE throughput and link reliability even at the highest frequencies. Its IP69K, fire-resistant, UV-stable enclosure plus four mounting options make the PUCK-1 a rugged, versatile choice for smart-utility, IoT/M2M, transport, marine, and agricultural deployments. Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, smart meter, smart utilities, transportation, marine and the agricultural/farming markets. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability.

Product Features:

  • The antenna features an ultra-compact, low-profile form factor (Ø100 mm × 36 mm H) that minimises visual impact and wind load.
  • The IP69K-rated enclosure resists high-pressure water jets, dust ingress, and corrosion, and its fire-resistant, UV-stable polymer ensures long outdoor life.
  • The single-input single-output LTE element covers 617–4200 MHz and is fully 5G-ready with CBRS support.
  • The ground-plane-independent element delivers consistent omnidirectional radiation patterns on both metal and non-metal surfaces.
  • The antenna is tested to operate from –40 °C to +80 °C and withstands shock and vibration in mobile and industrial environments.
  • Quick installation is enabled via four standard mounting kits: spigot, magnetic pad, high-bond adhesive disk, and surface bracket.

Application Areas:

  • It is ideal for smart-utility AMI/AMR metering applications for power, gas, and water.
  • The device supports smart-building systems, including HVAC monitoring, access control, security, and irrigation automation.
  • It provides resilient cellular backhaul for digital signage, kiosks, and payment terminals.
  • It supports communications in warehouse and logistics hubs, including asset-tracking gateways and automated guided vehicles (AGVs).
  • It is well suited for transport fleets—such as buses, utility trucks, and public-safety vehicles—with limited roof clearance.
  • It enables telemetry and remote control for mining vehicles and heavy machinery.
  • It provides LTE and 5G connectivity for agricultural equipment, enabling precision-farming solutions.
  • It is ideal for small boats and yachts operating near coastlines and inland waterways.

In the Box:

  • Poynting Puck-1 Transportation Antenna - Black
  • 2m cable
  • SMA-Male connector

Documents:

Poynting PUCK-1-B Antenna - Datasheet

Videos:

Poynting PUCK Antenna - Unboxing
