The Poynting PUCK-1-W Low-Profile SISO LTE Antenna delivers broadband 617 to 4200 MHz coverage including the 3.2 to 3.8 GHz CBRS/early-5G band inside a compact 100 mm 36 mm housing. Precision radiation design gives this single-element antenna balanced omnidirectionality and excellent elevation gain, ensuring stable LTE throughput and link reliability even at the highest frequencies. Its IP69K, fire-resistant, UV-stable enclosure plus four mounting options make the PUCK-1 a rugged, versatile choice for smart-utility, IoT/M2M, transport, marine, and agricultural deployments. Poynting's new PUCK range offers a small profile antenna for use in the IoT/M2M, smart meter, smart utilities, transportation, marine and the agricultural/farming markets. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability.

Product Features:

• The antenna features an ultra-compact, low-profile form factor measuring 100 mm - 36 mm H, which minimizes visual impact and wind load.
• The IP69K-rated enclosure resists high-pressure water jets, dust ingress, and corrosion, and its fire-resistant, UV-stable polymer ensures a long outdoor service life.
• The single-input single-output LTE element covers 617 to 4200 MHz and is fully 5G-ready with CBRS support.
• The ground-plane-independent element delivers consistent omnidirectional radiation patterns on both metal and non-metal surfaces.
• The antenna is tested to operate from 40 °C to +80 °C and withstands shock and vibration in mobile and industrial environments.
• Quick installation is achieved using any of the four standard mounting kits: spigot, magnetic pad, high-bond adhesive disk, or surface bracket.

Application Areas:

• It is ideal for smart-utility AMI/AMR metering applications in power, gas, and water networks.
• The device supports smart-building systems, including HVAC monitoring, access control, security, and automated irrigation.
• It provides resilient cellular backhaul for digital signage, kiosks, and payment terminals.
• It enables reliable communications in warehouse and logistics hubs, supporting asset-tracking gateways and automated guided vehicles (AGVs).
• The antenna is suited for transport fleets such as buses, utility trucks, and public-safety vehicles that have limited roof clearance.
• It supports telemetry and remote-control applications for mining vehicles and heavy machinery.
• It delivers LTE and 5G connectivity for agricultural equipment, enabling precision-farming solutions.
• It is suitable for installation on small boats and yachts operating near coastlines and on inland waterways.

In The Box:

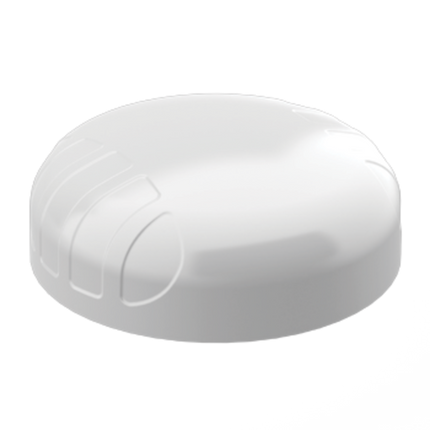

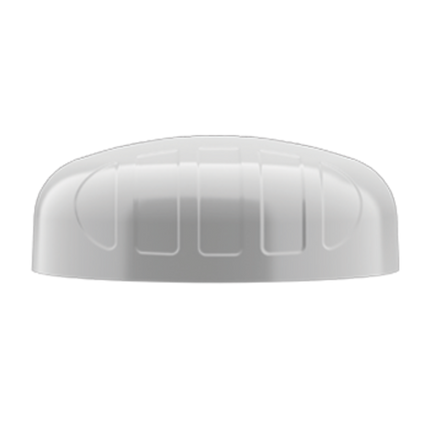

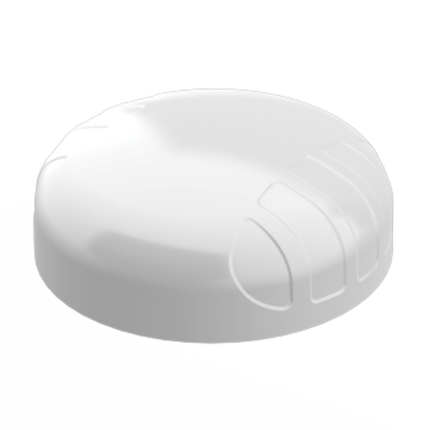

• Poynting PUCK-1-W Antenna - White
• 2m cable
• SMA-Male connector

Documents:

Poynting PUCK-1 Antenna - Datasheet

Videos:

Poynting PUCK Antenna - Unboxing
