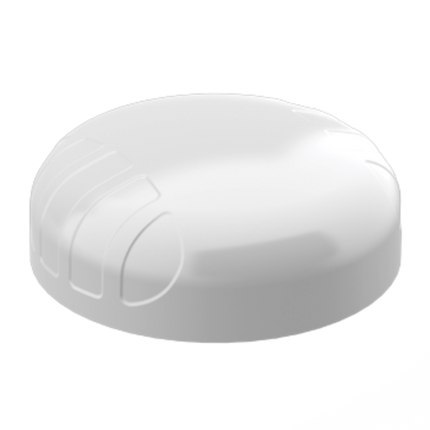

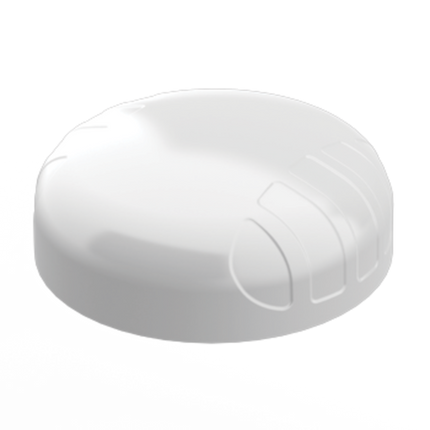

Poynting Puck-12 Antenna, 2-In-1, MIMO, 2400-6000 MHz, 7.5 dBi, 2m, SMA-Male - White

Poynting Puck-12 Antenna, 2-In-1, MIMO, 2400-6000 MHz, 7.5 dBi, 2m, SMA-Male - White

Sold out

Brand:
Item ID:
168014309
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-PUCK-0012-V1-01-W
Send Request for Quote (RFQ)
Poynting PUCK-12 antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4 GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax
Regular price $142.50
Regular price $0.00 Sale price $142.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Poynting Puck-12 Antenna system within a single housing, featuring 2x2 MIMO Wi-Fi (Dual-band 2.4 GHz & 5 GHz). The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4 GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for Wi-Fi throughput and connection stability.

Product Features:

  • The antenna features a compact, low-profile design measuring Ø100 mm × 36 mm for easy installation and minimal space usage.
  • It is engineered for ruggedness, providing resistance to corrosion, water, and dust, with an IP69K rating.
  • The enclosure is fire-resistant and UV-stable, ensuring long-lasting durability in harsh conditions.
  • Installation is straightforward, with multiple mounting options available, including spigot mount, magnetic mount, adhesive tape mount, and bracket mount.

Application Areas:

  • It is ideal for industrial factory automation, robotic machinery, and other machine-to-machine (M2M) systems.
  • It supports digital signage applications for dynamic content delivery.
  • It enhances communication and tracking in warehouse and logistics systems.
  • It is suitable for transport applications, including buses, utility vehicles, and public safety fleets.
  • It enables communications, telemetry, and automation (M2M & IoT) for mining vehicles and machinery.
  • It provides reliable connectivity for agricultural machinery in modern farming operations.
  • It serves marine applications on small boats and yachts operating near coastlines or in inland waters.

In the Box:

  • 1x Poynting Puck-12 Antenna - White
  • 1x 2m cable
  • 1x SMA-Male connector

Documents:

Poynting PUCK-12 Antenna - Datasheet

Videos:

Poynting PUCK Antenna - Unboxing
