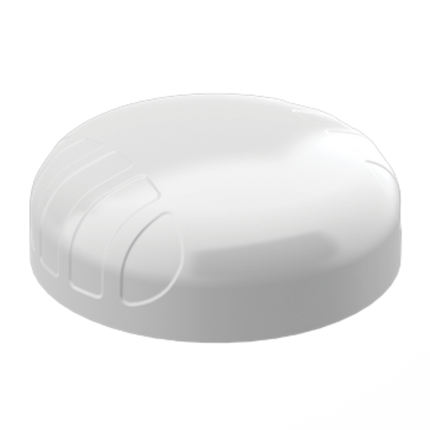

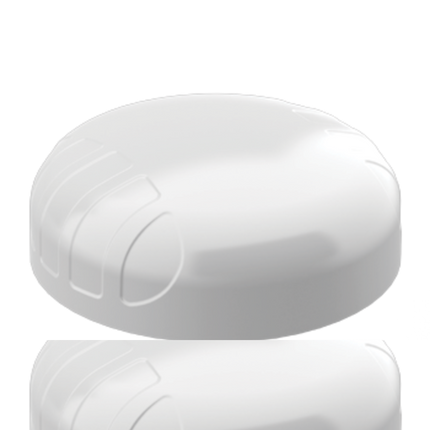

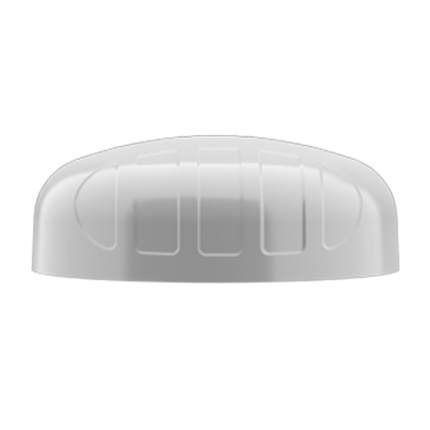

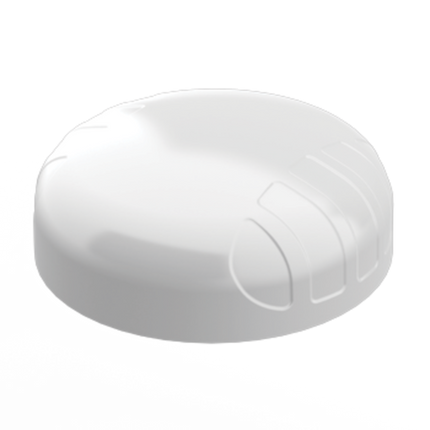

The Poynting PUCK-2 Transportation Antenna integrates twin MIMO LTE elements (2 × 2) into a compact Ø100 mm × 36 mm housing, delivering dependable 617 – 4200 MHz coverage from legacy 2 G/3 G to CBRS and early 5 G bands. Careful RF design produces balanced, near-omnidirectional patterns and robust pattern diversity for high LTE throughput and link stability, even at the upper frequency ranges. An IP69K, fire-resistant, UV-stable enclosure and four mounting options (spigot, magnet, adhesive, or bracket) make the PUCK-2 a versatile choice for smart-utility, IoT/M2M, transport, and marine deployments. Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.

Product Features:

• The antenna features a small, low-profile form factor (Ø 100 mm × 36 mm H) that minimises visual impact and wind load.
• The 2 × 2 MIMO LTE antenna system covers 617 – 4200 MHz, including the 3.2 – 4.2 GHz CBRS/5G band.
• The ground-plane-independent radiation elements deliver omnidirectional coverage and elevation gain for stable links on metal or non-metal surfaces.
• The IP69K-rated, fire-resistant, UV-stable enclosure withstands extreme wash-downs, corrosion, and prolonged sunlight exposure.
• The antenna can be easily installed using the included spigot, magnetic pad, high-bond adhesive tape, or surface-mount bracket.
• The unit is engineered to maintain performance from –40 °C to +80 °C in harsh industrial or mobile environments.

Application Areas:

• This antenna is ideal for smart-utility metering applications for power, gas, and water (AMI/AMR).
• It supports smart-building systems, including HVAC monitoring, access control, security, and automated irrigation.
• It provides resilient cellular backhaul for digital signage, kiosks, and payment terminals.
• It enhances communications in warehouse and logistics hubs, supporting asset-tracking gateways and AGVs.
• It is suitable for transport fleets such as utility trucks and public-safety vehicles with limited roof clearance.
• It enables telemetry and remote-control applications for mining vehicles and heavy machinery.
• It delivers LTE and 5G connectivity for agricultural equipment, supporting precision-farming solutions.
• It provides reliable connectivity for marine craft such as small boats and yachts operating near coastlines and inland waterways.

In the Box:

• 1 × Poynting PUCK-2 Low-Profile 2 × 2 MIMO LTE Antenna (white housing).
• 2 m twin-lead RF cable pre-terminated with SMA-male connectors.
• Spigot mount hardware with gasket and locknut.
• Magnetic base pad for temporary or steel-surface mounting.
• High-bond double-sided adhesive disk.
• Surface-mount bracket with screws and gasket.
