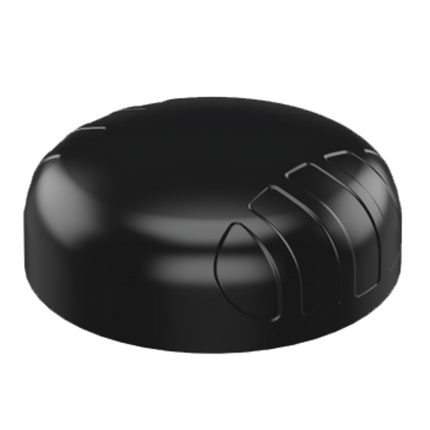

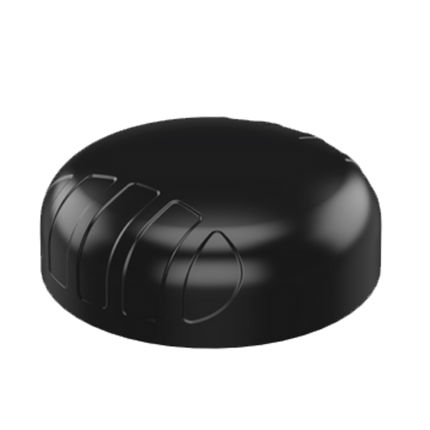

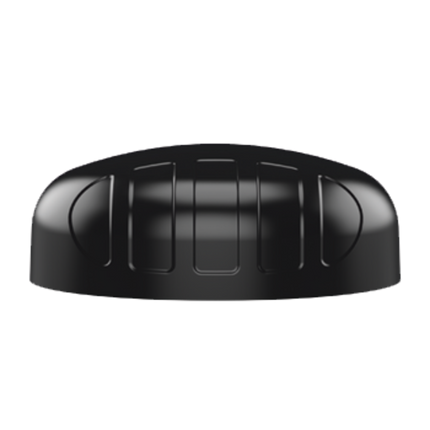

The Poynting PUCK-2-V1 Low-Profile MIMO LTE Antenna integrates two LTE elements (2 × 2 MIMO) into a compact Ø100 mm × 36 mm housing, delivering broadband coverage from 617 MHz to 4.2 GHz including the 3.2-4.2 GHz CBRS/early-5G band. Engineered for robust IoT, smart-utility, transport, and marine deployments, the PUCK-2 combines rugged IP69K, fire-resistant, UV-stable construction with balanced omnidirectional radiation patterns that ensure stable throughput and connection integrity, even at the highest LTE frequencies.
Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.
Product Features:
- The ultra-compact, low-profile design (Ø 100 mm × 36 mm H) minimises visual impact and wind load.
- The 2 × 2 MIMO LTE antenna system covers 617–4200 MHz and is fully ready for CBRS and 5G rollouts.
- The ground-plane-independent elements deliver true omnidirectional coverage and elevation gain on both metal and non-metal surfaces.
- The IP69K-rated enclosure resists high-pressure water jets, dust ingress, and corrosion, and its fire-resistant, UV-stable polymer ensures long outdoor service life.
- Multiple mounting options including spigot, magnetic pad, high-bond adhesive tape, and surface bracket are included for quick and flexible installation.
- The antenna is engineered to operate from –40 °C to +80 °C and withstand shock and vibration in mobile and industrial environments.
Application Areas:
- It is ideal for smart-utility AMI/AMR metering applications in power, gas, and water networks.
- The device supports smart-building systems for HVAC monitoring, access control, security, and automated irrigation.
- It provides resilient cellular backhaul for digital signage, kiosks, and payment terminals.
- It enhances communications in warehouse and logistics hubs, supporting asset-tracking gateways and AGVs.
- The antenna is suited to transport fleets such as buses, utility trucks, and public-safety vehicles with limited roof clearance.
- It enables telemetry and remote-control applications for mining vehicles and heavy machinery.
- It delivers LTE and 5G connectivity for agricultural equipment, supporting precision-farming solutions.
- It is suitable for small boats and yachts operating near coastlines and on inland waterways.
In the Box:
- Poynting Puck-2-V1 Transportation Antenna - Black
- 2m cable
- SMA-Male connector
Documents:
Poynting PUCK-2 Antenna - Datasheet
Videos:
Poynting PUCK Antenna - Unboxing
