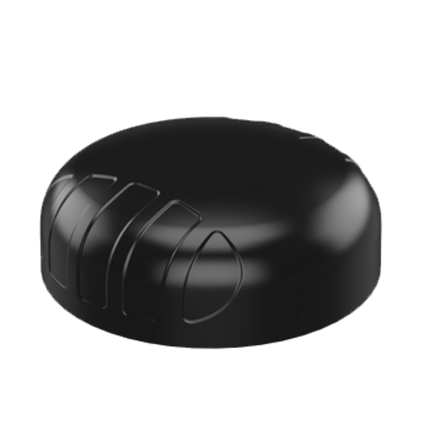

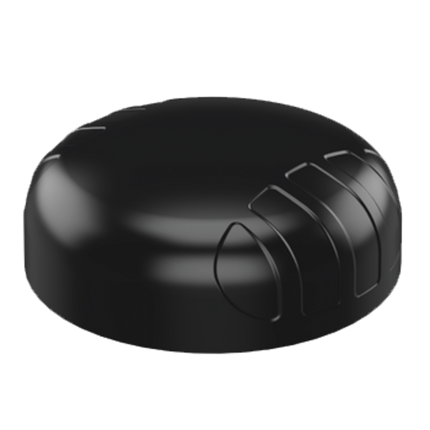

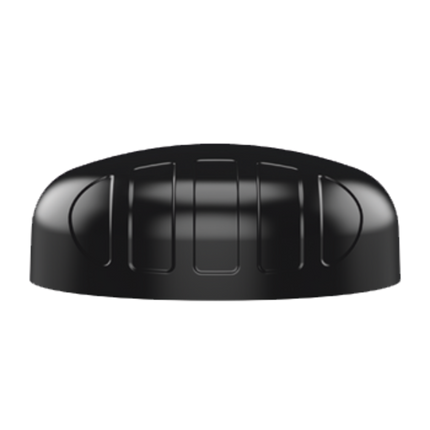

Poynting Puck-4 Transportation Antenna, 3-In-1, 617-6000 MHz, 2m, SMA-Male - Black

Poynting Puck-4 Transportation Antenna, 3-In-1, 617-6000 MHz, 2m, SMA-Male - Black

Sold out

Brand:
Item ID:
168014315
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-PUCK-0004-V1-01
Send Request for Quote (RFQ)
Poynting PUCK-4 3-In-1 5G/LTE 2x2 MIMO and GPS Transportation and IoT/M2M Antenna (617-4200 MHz and GPS); 6 dBi (Black) use in the IoT/M2M, Smart Meter,
Regular price $201.00
Regular price $0.00 Sale price $201.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Poynting PUCK-4 consists of a 3-in-1 antenna system within a single housing, featuring 2X2 MIMO LTE, and GPS/GLONASS. Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The 2X2 Cellular MIMO antennas (for 2G/3G/4G) cover the 617 to 4200 MHz band, this includes the most popular international LTE bands. The third antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.

Product Features:

  • The ultra-compact, low-profile design (Ø100 mm × 36 mm H) minimises visual impact and wind load.
  • The careful mechanical design achieves IP69K-rated protection against water and dust ingress and provides corrosion resistance for harsh outdoor use.
  • The fire-resistant, UV-stable polymer housing ensures long-term durability in extreme temperatures and under direct sunlight.
  • The antenna delivers 5G-ready performance, including coverage of the CBRS band (3.2 – 3.8 GHz) for private-LTE and future 5G rollouts.
  • The multiple mounting options including spigot mount, magnetic pad, high-bond adhesive tape, and surface bracket enable quick installation on flat or curved surfaces.
  • The rugged internal construction is tested for shock and vibration, making the antenna suitable for vehicles, heavy equipment, and industrial plants.

Application Areas:

  • It is ideal for smart-utility deployments, such as power, gas, and water AMI/AMR metering networks.
  • It supports smart-building systems, including HVAC monitoring, access control, security, and automated irrigation.
  • It is suited for industrial factory automation, robotics, and other machine-to-machine (M2M) and Industrial IoT (IIoT) networks.
  • It provides reliable cellular backhaul for digital signage, kiosks, and payment terminals.
  • It enhances warehouse and logistics infrastructure, supporting autonomous guided vehicles and asset-tracking gateways.
  • It is designed for transport fleets such as buses, utility trucks, and public-safety vehicles where limited roof height and tunnel clearance demand low-profile antennas.
  • It supports telemetry, collision-avoidance, and remote-control communications for mining vehicles and heavy machinery.
  • It provides dependable data links for small boats and yachts operating near coastlines and inland waterways.

In the Box:

  • Poynting Puck-4 Transportation Antenna - Black
  • 2m cable
  • SMA-Male connector

Documents:

Poynting PUCK-4 Antenna - Datasheet

Videos:

Poynting PUCK Antenna - Unboxing
