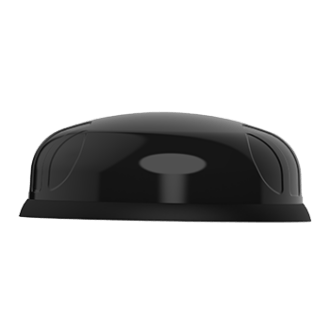

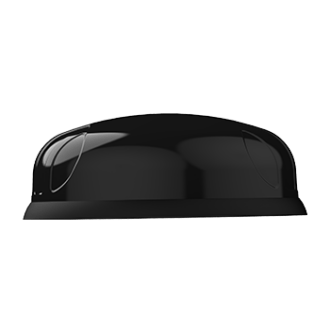

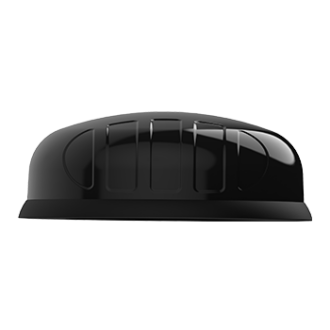

Poynting PUCK-5-V2 5-in-1 exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application. The 2x Cellular MIMO antennas (for 2G/3G/4G/5G) cover the 617 MHz to 6000 MHz band, this includes the most popular international LTE bands and 5G band up to 4200 MHz. The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2x2 MIMO. The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC.

Product Features:

• The Poynting PUCK-5-V2 antenna features a small, low-profile design measuring Ø9.3 cm x 3.6 cm for minimal visual impact.
• Its rugged mechanical construction provides corrosion, water, and dust resistance, achieving an IP69K rating for reliable outdoor performance.
• The fire-resistant, UV-stable enclosure ensures long-term durability even under prolonged exposure to harsh weather conditions.
• The PUCK-5-V2 supports 5G across the 617-4200 MHz range, including the 3.2-3.8 GHz CBRS band for private-LTE and future 5G deployments.
• Installation is straightforward, with multiple mounting options available to suit various mounting surfaces and configurations.
• It can be installed using a spigot mount, magnetic mount, adhesive tape mount, or bracket mount to accommodate different application requirements.

Application Areas:

• It is ideal for smart power, gas, and water metering, climate control, access control, security, and irrigation systems.
• It supports industrial factory automation, robotic machinery, and other machine-to-machine (M2M) systems.
• It is suitable for digital signage, warehouse, and logistics systems.
• It is designed for transport applications including buses, utility vehicles, and public safety fleets.
• It enables mining vehicle and machinery communications, telemetry, and automation (M2M & IoT).
• It provides connectivity and data transfer for agricultural machinery.
• It can be used in marine applications on small boats and yachts operating near coastlines or in inland waters.

In the Box:

• 1x Poynting A-PUCK-0005-V2-01 - Black

Documents:

Poynting PUCK-5 Antenna - Datasheet

Videos:

Poynting PUCK Antenna - Unboxing How to connect a Poynting 5-in-1 MIMO antenna to a Teltonika RUT955 Router?
