Poynting PUCK-5-W-V2 5-in-1 exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. Please see other derivatives of the PUCK range that are more suitable for a SISO application.
The 2x Cellular MIMO antennas (for 2G/3G/4G/5G) cover the 617 MHz to 6000 MHz band, this includes the most popular international LTE bands and 5G band up to 4200 MHz. The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax with 2×2 MIMO. The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC.
Product Features:
- The antenna features a small, low-profile design measuring Ø9.3 cm × 3.6 cm.
- Its rugged mechanical construction provides corrosion, water, and dust resistance (IP69K).
- The enclosure is fire-resistant and UV-stable to withstand harsh environmental conditions.
- The PUCK-5-V2 supports 5G connectivity across 617–4200 MHz, including the 3.2–3.8 GHz CBRS band.
- Installation is simple, with multiple implementation options available for the Poynting 5-in-1 antenna.
- It supports spigot, magnetic, adhesive tape, and bracket mounting methods.
Application Areas:
- This antenna is ideal for smart power, gas, and water metering, as well as climate control, access control, security, and irrigation systems.
- It is designed for industrial factory automation, robotic machinery, and other machine-to-machine (M2M) systems.
- This product is perfect for digital signage in warehouses and logistics environments.
- It is suited for transport applications, including buses, utility vehicles, and public safety fleets.
- The antenna enables communications, telemetry, and automation (M2M & IoT) for mining vehicles and machinery.
- It provides reliable connectivity for agricultural machinery.
- This unit serves marine applications on small boats and yachts operating near coastlines or in sheltered waters.
In the Box:

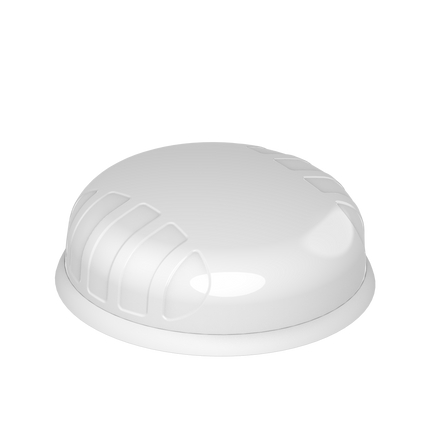

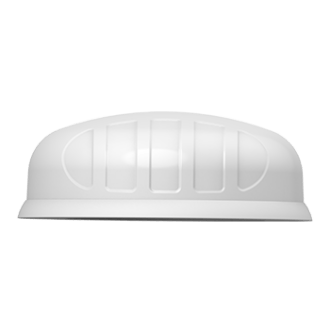

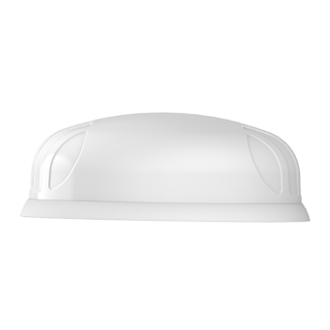

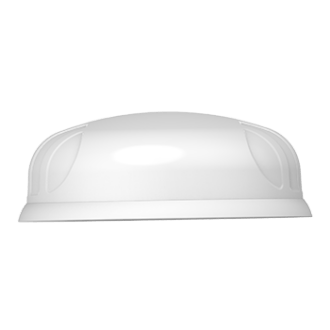

- 1x Poynting PUCK-5-W-V2 Transportation Antenna - White
