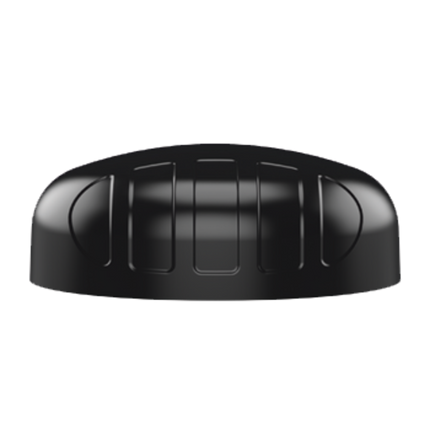

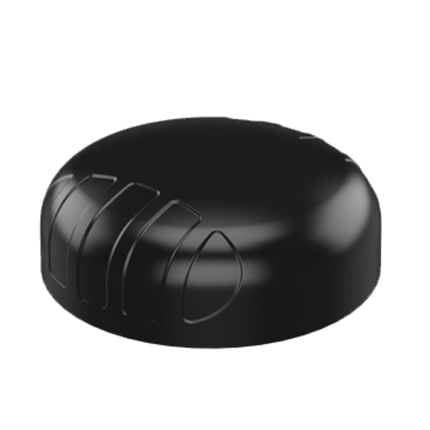

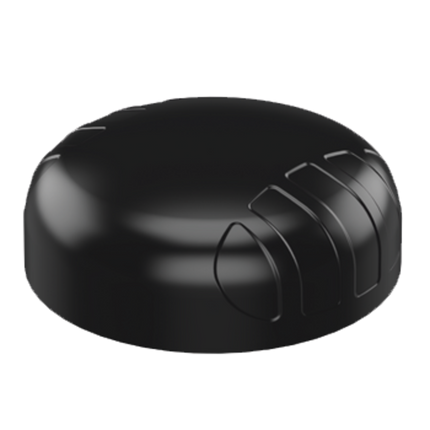

Poynting Puck-8 Transportation Antenna, 3-In-1, 617-7200 MHz, 2m, SMA-Male - Black

Poynting Puck-8 Transportation Antenna, 3-In-1, 617-7200 MHz, 2m, SMA-Male - Black

Sold out

Brand:
Item ID:
168014319
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-PUCK-0008-V1-01
Send Request for Quote (RFQ)
Poynting PUCK-8 3-In-1 5G/LTE 2x2 MIMO and Wi-Fi SISO IoT/M2M Antenna (617-4200 MHz); 6/7.5 dBi Black design of this high-performance antenna
Regular price $214.50
Regular price $0.00 Sale price $214.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Poynting’s new PUCK range offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The Poynting PUCK-8 consists of a 3-in-1 antenna system within a single housing, featuring 2x2 MIMO LTE and Wi-Fi (Dual-band 2.4 GHz & 5 GHz). The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 617MHz to 4200 MHz band, this includes the most popular international LTE bands. The antenna provides a dual-band Wi-Fi antenna offering concurrent 2.4 GHz and 5 GHz bands, capable of 802.11n and 802.11ac/ax. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna. Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.

Product Features:

  • The antenna features a small, low-profile form factor measuring Ø100 mm × 36 mm H.
  • Its careful mechanical design provides ruggedness and IP69K-rated resistance to corrosion, water, and dust.
  • The housing is fire-resistant to ensure safety under high-temperature conditions.
  • The UV-stable enclosure maintains its appearance and performance under prolonged sunlight exposure.
  • The device is 5G-ready, including support for the 3.2–3.8 GHz CBRS band.
  • Installation is quick and flexible, with multiple mounting options available including spigot mount, magnetic mount, adhesive tape mount, and bracket mount.

Application Areas:

  • It is ideal for smart-utility networks, including power, gas, and water metering systems.
  • It supports smart-building applications such as climate control, access control, security, and automated irrigation.
  • It is designed for industrial factory automation, robotic machinery, and other machine-to-machine (M2M) systems.
  • It provides reliable connectivity for digital signage installations.
  • It enhances communication and tracking in warehouse and logistics systems.
  • It is suitable for transport fleets, including buses, utility vehicles, and public-safety units.
  • It delivers robust connectivity for agricultural machinery.
  • It serves marine applications on small boats and yachts operating near coastlines and inland waterways.

In the Box:

  • Poynting Puck-8 Transportation Antenna - Black
  • 2m cable
  • SMA-Male connector

Documents:

Poynting PUCK-8 Antenna - Datasheet

Videos:

Poynting PUCK Antenna - Unboxing
