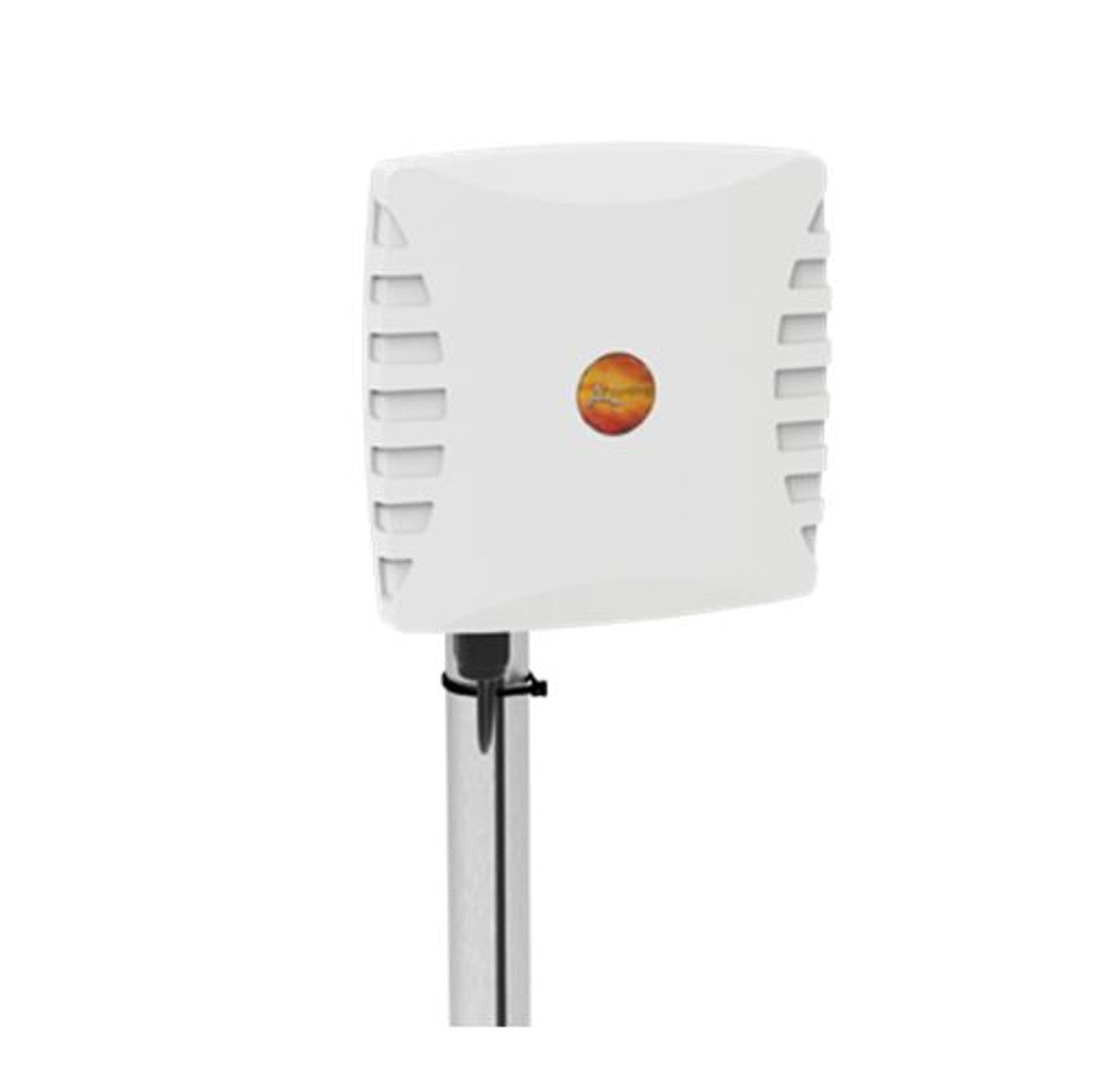

The Poynting WLAN-61 is a high-performance dual-band Wi-Fi antenna designed to deliver reliable and flexible wireless connectivity across a wide frequency range. Operating in both the 2.4 GHz and 5 to 6 GHz bands, this antenna supports legacy and modern Wi-Fi technologies, including Wi-Fi 6 (802.11ax), making it suitable for a wide variety of wireless networking environments.

Product Features:

• The Poynting WLAN-61 antenna operates across the 2.4 GHz and 5 to 6 GHz Wi-Fi bands, ensuring compatibility with a broad range of Wi-Fi devices and standards.
• It is a high-gain, directional antenna, providing focused signal strength for improved range and performance.
• This device features 4x4 MIMO capability, with four different antenna orientations in a single enclosure, supporting 2x2, 3x3, or 4x4 configurations.
• It is designed for optimal performance in environments with high channel saturation and radio frequency noise.
• The antenna has a robust, vandal-resistant, and dust-resistant housing rated to IP65, suitable for both indoor and outdoor use.

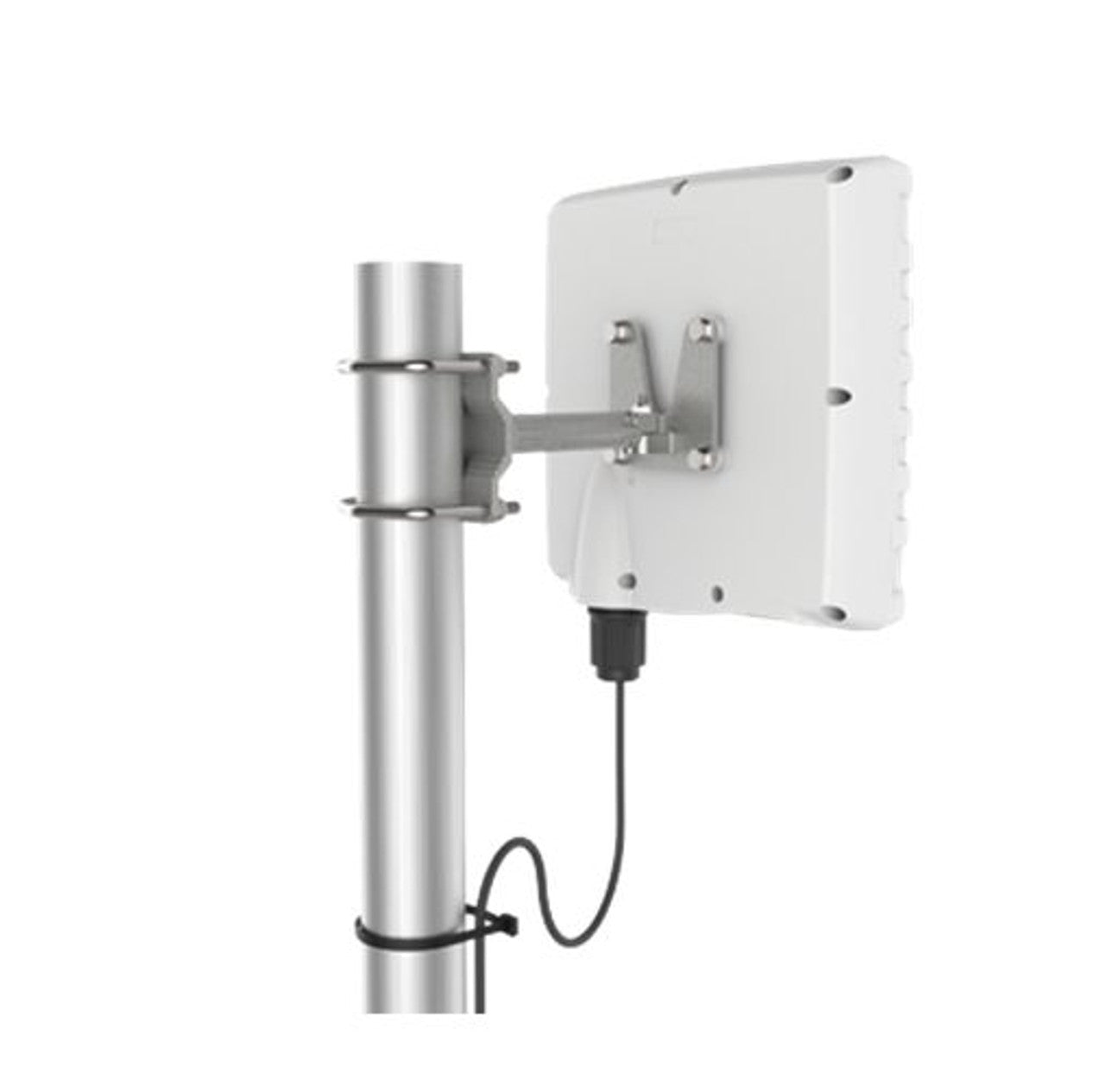

• It is easily mountable on poles, offering flexible installation options in various settings.

Application Areas:

• The antenna is ideal for offices, warehouses, and factories requiring strong and stable Wi-Fi coverage.
• It is suitable for areas with poor data signal reception, whether indoors or outdoors.
• This device is effective in open mine areas and other challenging environments with high RF noise.
• It is also applicable in M2M and IoT applications where reliable wireless communication is essential.

In the Box:

• 1x WLAN-61 Dual-band Wi-Fi Antenna, 4x4 MIMO

Documents:

Poynting WLAN-61 Antenna - Datasheet

Videos:

Poynting WLAN-61 Antenna - Product Overview
