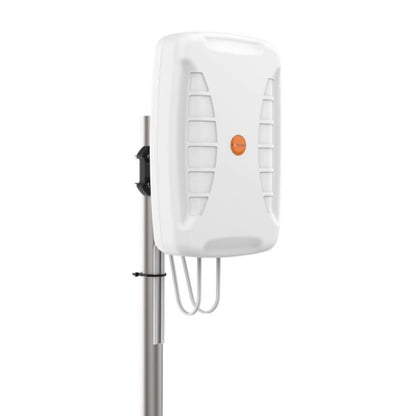

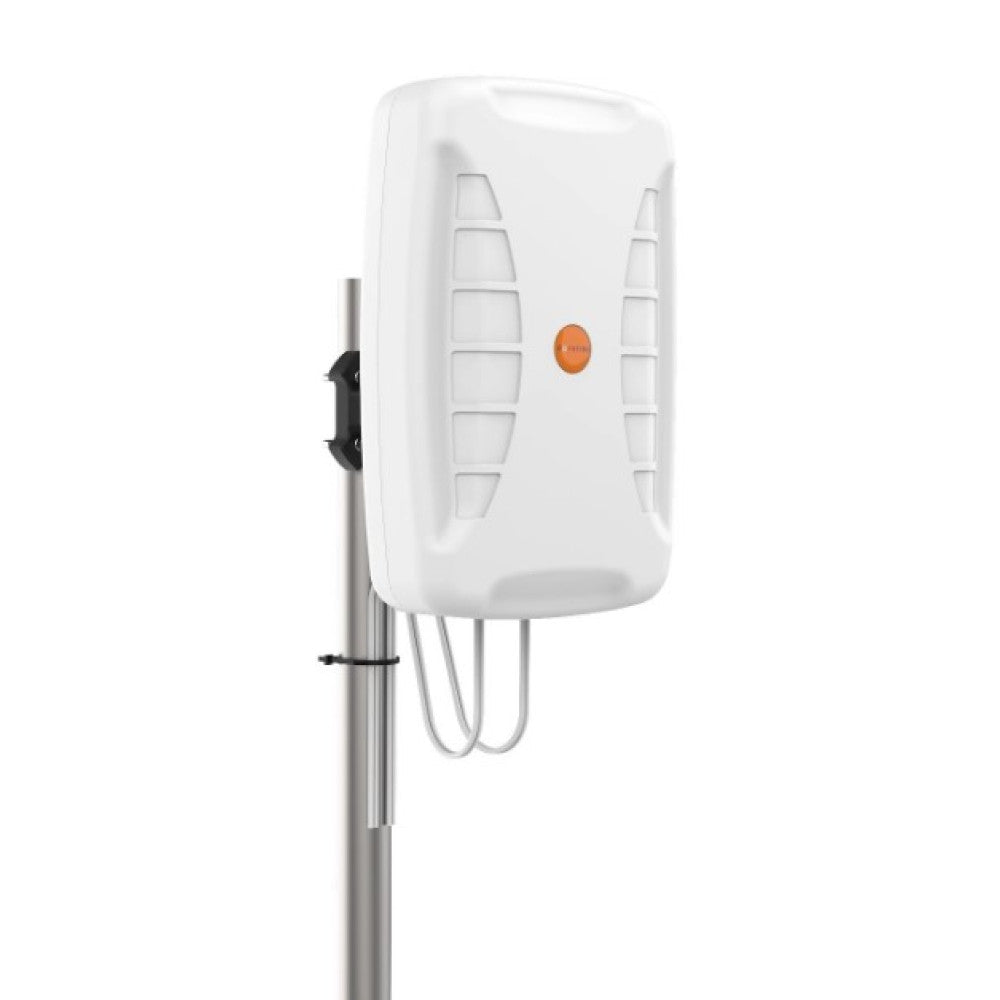

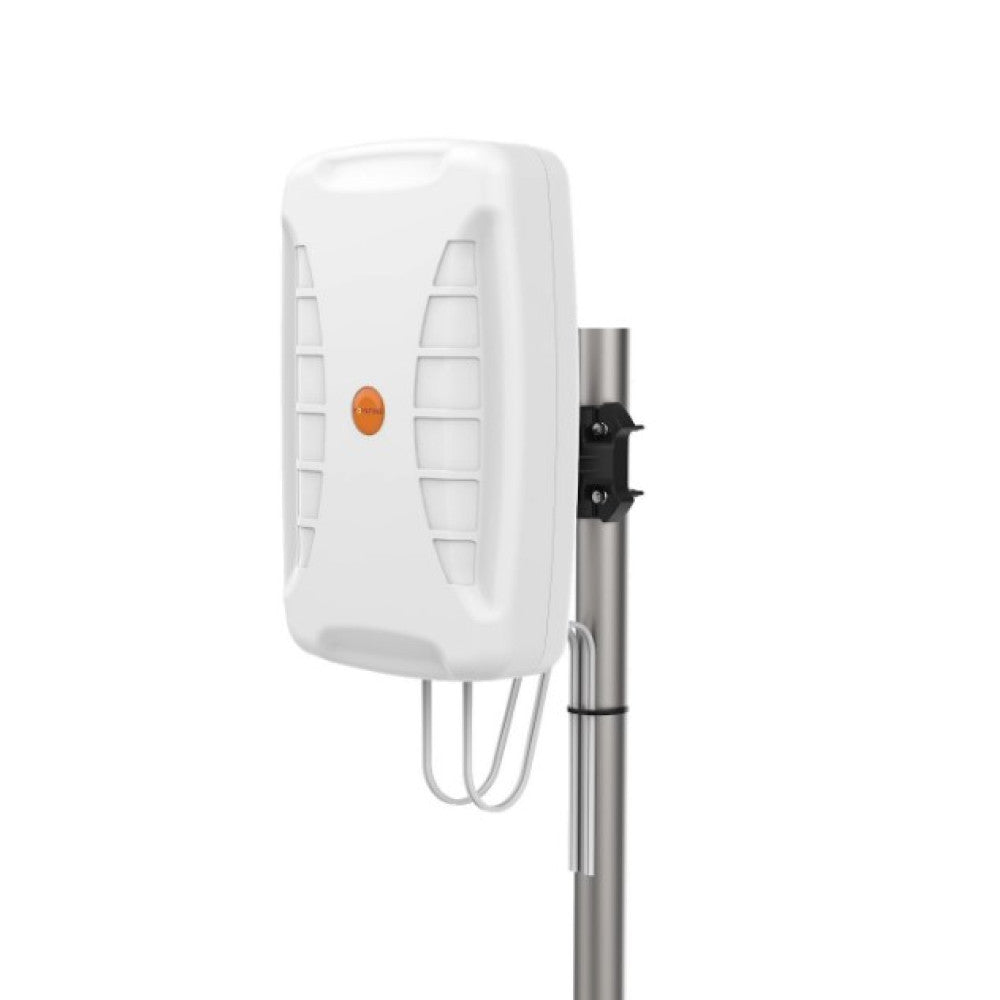

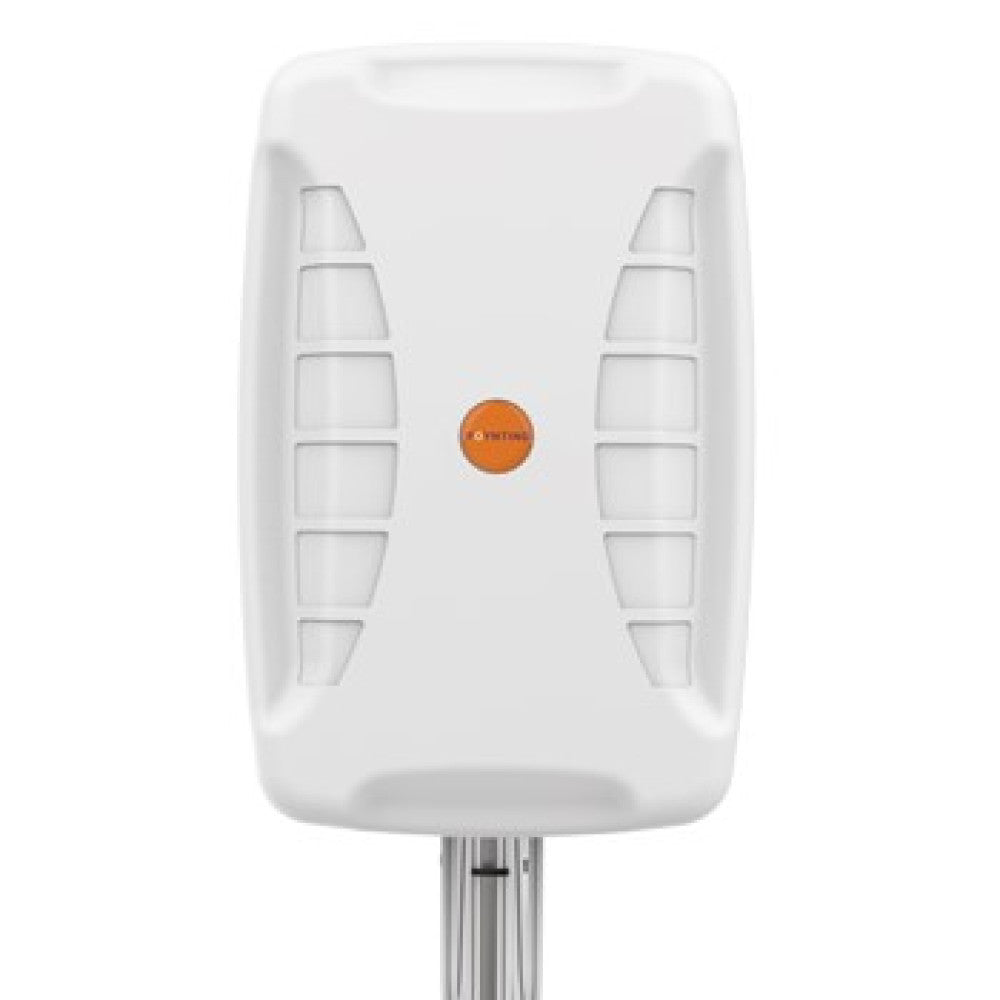

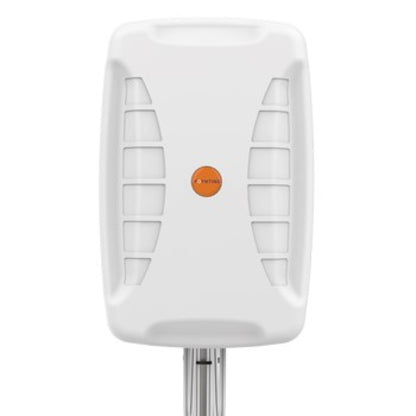

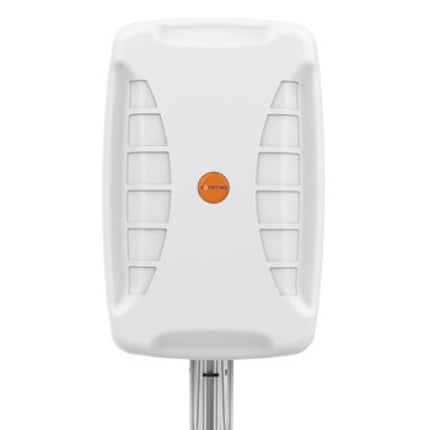

Poynting XPOL-24 Uni-Directional Antenna, 4x4 MIMO, 617-4200 MHz, 11 dBi, N-Female

Poynting XPOL-24 Uni-Directional Antenna, 4x4 MIMO, 617-4200 MHz, 11 dBi, N-Female

Available

Brand:
Item ID:
165022191
Export:
Accepted
Shipping:
Ships out in 3-4 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
A-XPOL-0024-V1-02
Send Request for Quote (RFQ) Discount Offers
Poynting XPOL-24 performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz.
Regular price $668.00
Regular price $0.00 Sale price $668.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Poynting XPOL-24 offers wideband frequency coverage from 617 to 4200 MHz, with a peak gain of 11 dBi across the bands of operation. The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz. The exceptional wideband performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously. This makes the XPOL-24 the go-to solution for current and future 5G/LTE antenna deployments. The Poynting A-XPOL-0024-V1-02 Uni-Directional 4×4 MiMo 5G/LTE Antenna; 617-960 MHz; 1710-4200 MHz, 11dBi is Pointing’s first-ever 4×4 MIMO 5G/LTE bands with exceptional performance. This is due to the incorporation of advanced metamaterial technology, making use of an Artificial Magnetic Conductor (AMC) and a new registered/patent configuration, which has proven to yield exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well-controlled, which further adds to the exceptional performance of the antenna.

Product Features:

  • The antenna provides X-polarised 4×4 MIMO support for both current and future wireless technologies.
  • It offers wideband coverage with exceptional performance across its entire operating range.
  • It operates from 617 to 4200 MHz and delivers a peak gain of 11 dBi.
  • The design ensures consistent broadband performance under varying conditions.

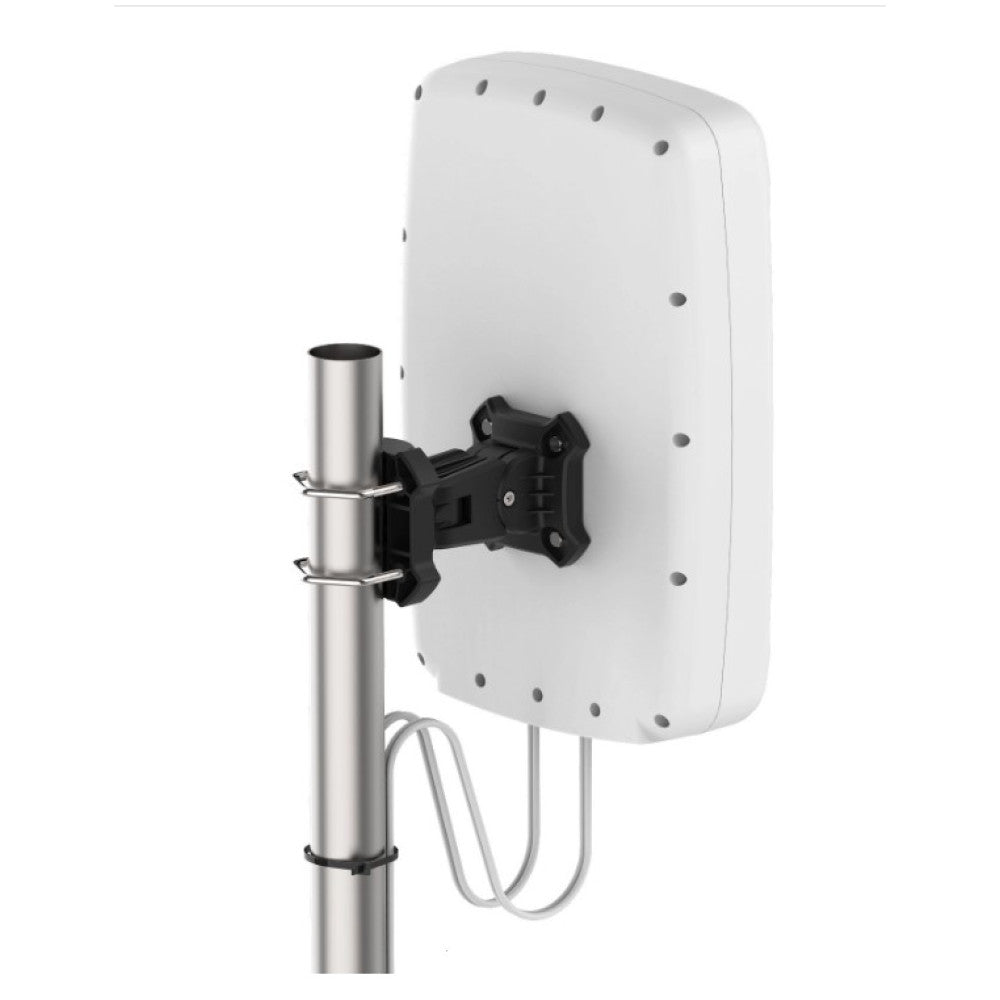

  • It includes multiple mounting options such as wall or pole installation for ease of deployment.
  • The weatherproof, waterproof enclosure is rated IP65 for reliable outdoor operation.

Application Areas:

  • The antenna serves as an outdoor solution for Fixed Wireless Access (FWA) deployments.
  • It enhances consumer LTE and 5G connectivity in residential and small-business environments.
  • It is ideal for industrial and commercial LTE/5G network deployments.
  • It improves signal reception in both urban and rural household settings.
  • The device supports agricultural and farming LTE/5G data distribution applications.
  • It provides telemetry access for power, energy, and water utility systems.
  • It is suitable for communication systems in oil and gas operations.
  • It can be paired with repeaters and coverage-enhancement amplifiers to extend network reach.

In the Box:

  • Poynting XPOL-24 Uni-Directional Antenna
  • N-Female connector

Documents:

Poynting A-XPOL-0024-V1-02 Antenna - Datasheet

Videos:

Poynting A-XPOL-0024-V1-02 Antenna Poynting A-XPOL-0024-V1-02 Antenna - Product Overview Poynting A-XPOL-0024-V1-02 Antenna - Unboxing

Product Specifications

MPN A-XPOL-0024-V1-02
Antenna port connectors N (F)
Brands Poynting
Coverage type Directional
Height 29
Ingress protection ip IP65
Installation type External mounting
GTIN/EAN 6009710925003
Length 11
Low pim No
Max frequency mhz 4200
Max gain dbd dbi 11
Mimo support Yes
Min frequency mhz 617
Min gain dbd dbi 8.5
Mount supported Wall mount, Pole mount
Mount supported detailed Wall mount, Pole mount
No of antenna ports 4
Power w 10
Technologies supported 2G, 3G, 4G, 5G
Width 44.4
Wind gust km h ?160
