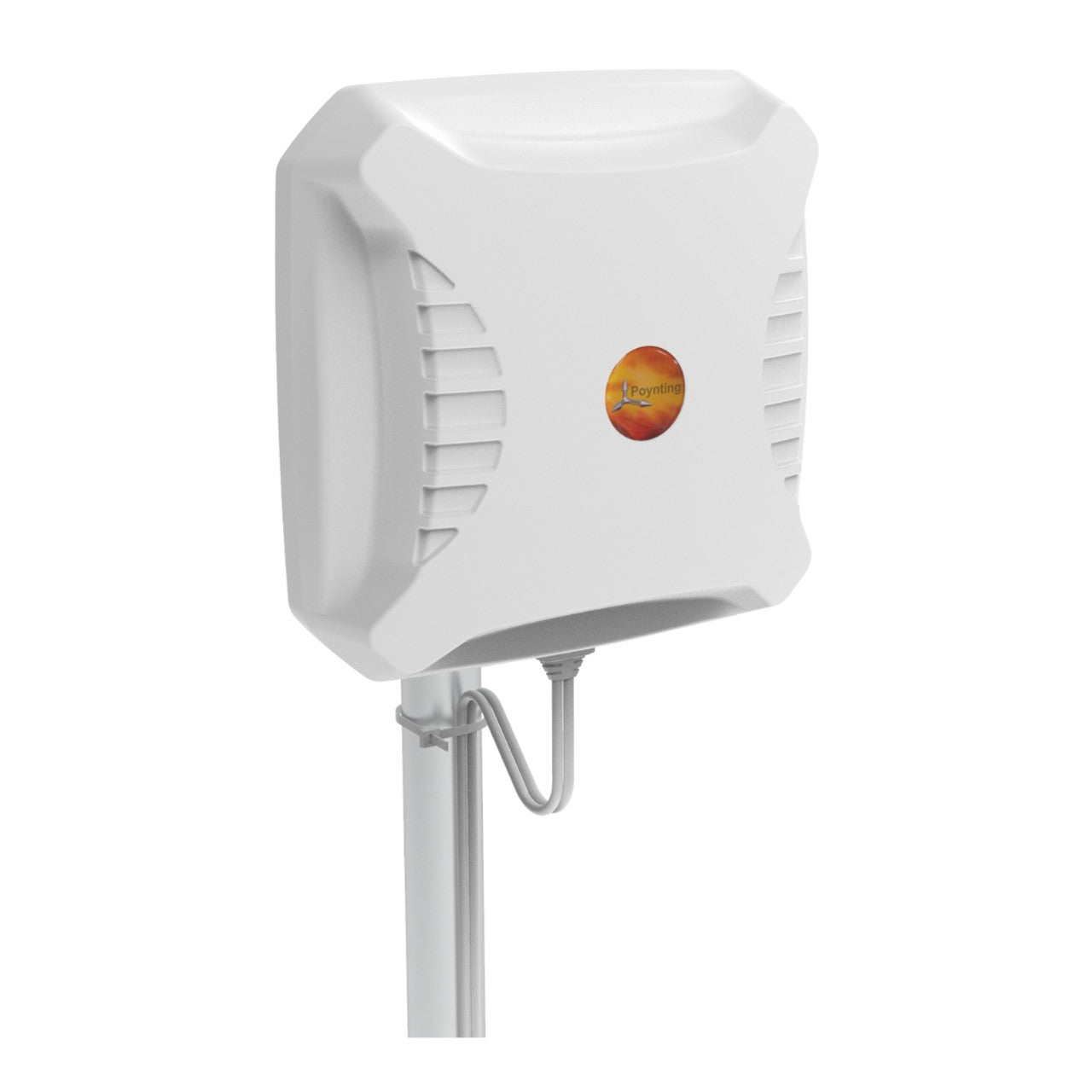

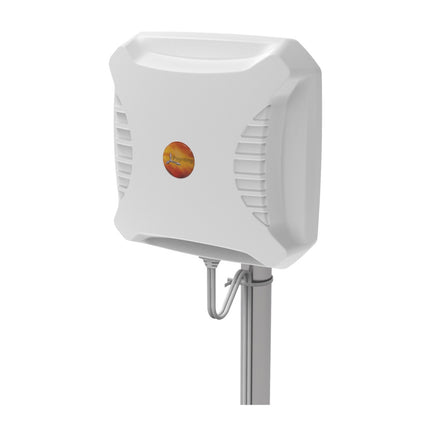

The Poynting XPOL-V2 Antenna is a high-performance Omni-Directional 2x2 LTE MIMO Antenna, covering a wide frequency range (617-3800 MHz) to support 2G, 3G, 4G, and 5G networks. With 0.5-3.5 dBi gain, it ensures stable and reliable signal reception, making it ideal for urban, rural, agricultural, and commercial applications.

Product Features:

• This antenna Supports 2G, 3G, 4G, and 5G for future-proof connectivity
• It provides Omni-directional coverage for broad signal reception
• 0.5 - 3.5 dBi gain for improved data speeds
• Dual-port 2X2 MIMO technology for enhanced network performance
• It has IP65-rating and weatherproof enclosure for outdoor durability

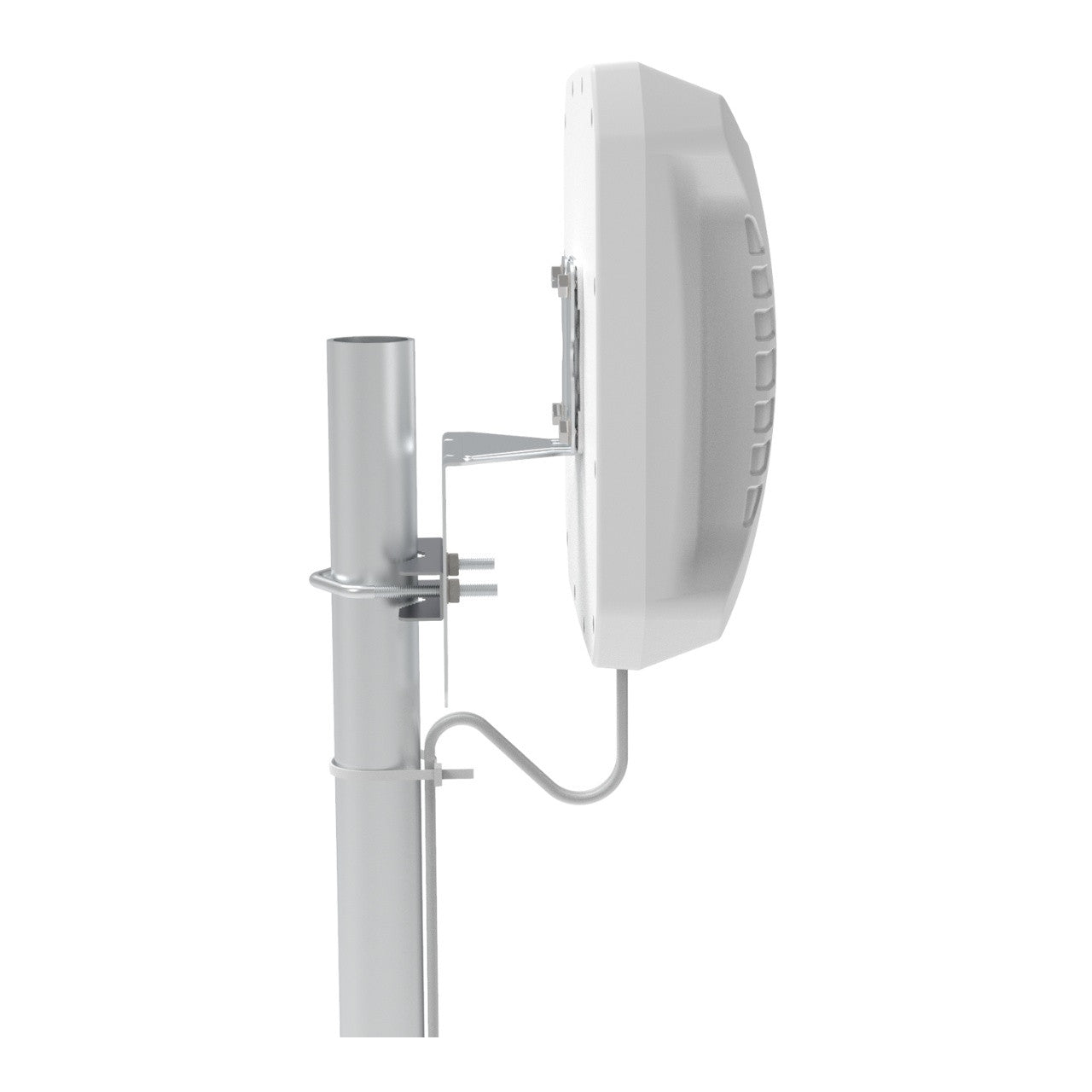

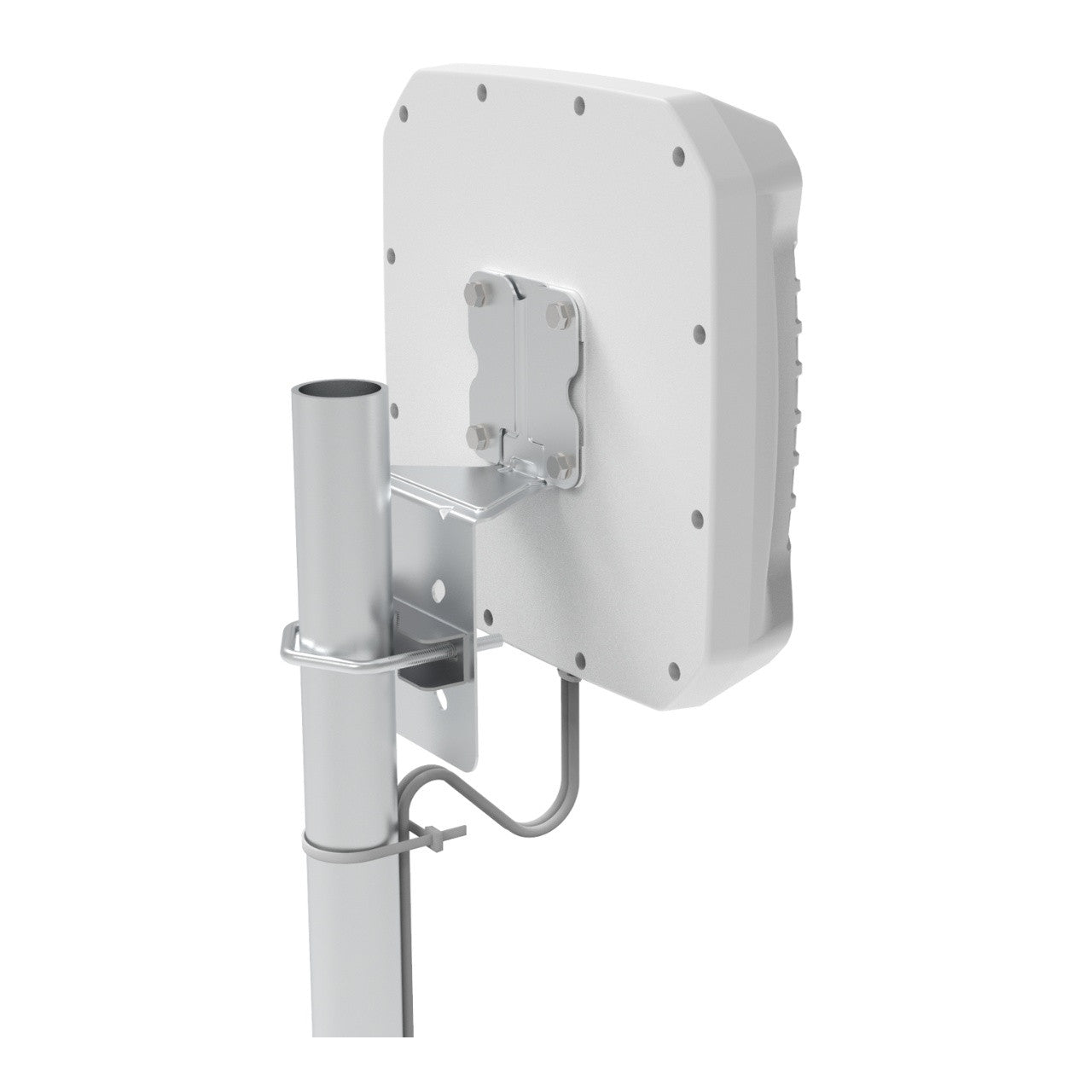

• Multiple mounting options: Pole, Wall, or Window mount
• 5m HDF-195 cable with SMA (M) connectors for easy installation
• Its design is compact and lightweight (1.05 kg, 27 x 19 x 10 cm)

Application Areas:

• This antenna is ideal for outdoor use in Fixed Wireless Access (FWA).
• It is suitable for consumer LTE/5G internet connectivity.
• The antenna can be used in industrial and commercial LTE/5G deployments.
• It enhances urban household reception.
• The antenna is perfect for power, energy, and water telemetry access.
• It is used in oil and gas communication systems.
• The antenna is suitable for municipal and government systems.
• It can be used with repeaters and coverage enhancement amplifiers.

In the Box:

• 1x Poynting XPOL-V2 Antenna Unit
• 1x 5m HDF-195 cable
• SMA-Male connector

Documents:

Poynting XPOL Antenna - Technical-Specifications Poynting XPOL Antenna - User Guide

Videos:

Poynting XPOL Antenna - Unboxing
