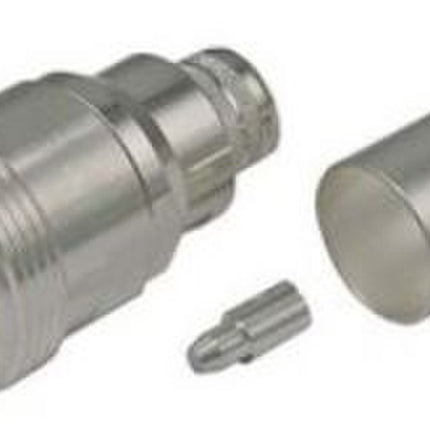

Pulse 716-30 7-16 DIN-Female Connector, Crimp - White Bronze - RG214 Cable

Pulse 716-30 7-16 DIN-Female Connector, Crimp - White Bronze - RG214 Cable

Sold out

Brand:
Item ID:
168018266
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
716-30
Send Request for Quote (RFQ)
The Pulse 716-30 7-16 DIN-Female Connector is a high-performance, straight cable plug designed for use with RG214 cables. It features a white bronze finish.
Regular price $25.70
Regular price $0.00 Sale price $25.70
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse 716-30 7-16 DIN-Female Connector is a high-performance, straight cable plug designed for use with RG214 cables. This connector features a white bronze finish and is known for its robust construction and excellent electrical performance, making it suitable for a wide range of RF applications.

Product Features:

  • This connector is a 7-16 DIN-Female connector.
  • It is designed for use with RG214 cables.
  • The connector has a VSWR of 1.3:1 max, ensuring minimal signal reflection.
  • The centre contact can be crimped or soldered for secure connections.
  • The outer contact is crimped.
  • The mating is a M29 x 1.5 threaded coupling.
  • The connector has a durability of 500 matings.
  • The coupling nut retention is 60 lbs max.
  • The cable retention is 80 lbs min.
  • The connector meets vibration standards MIL-STD-202 Test Cond B, salt spray standards MIL-STD-101 Test Cond B, and thermal shock standards MIL-STD-107 Test Cond B.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG214 cables.

In the Box:

  • 1 x Pulse 716-30 7-16 DIN-Female Connector
