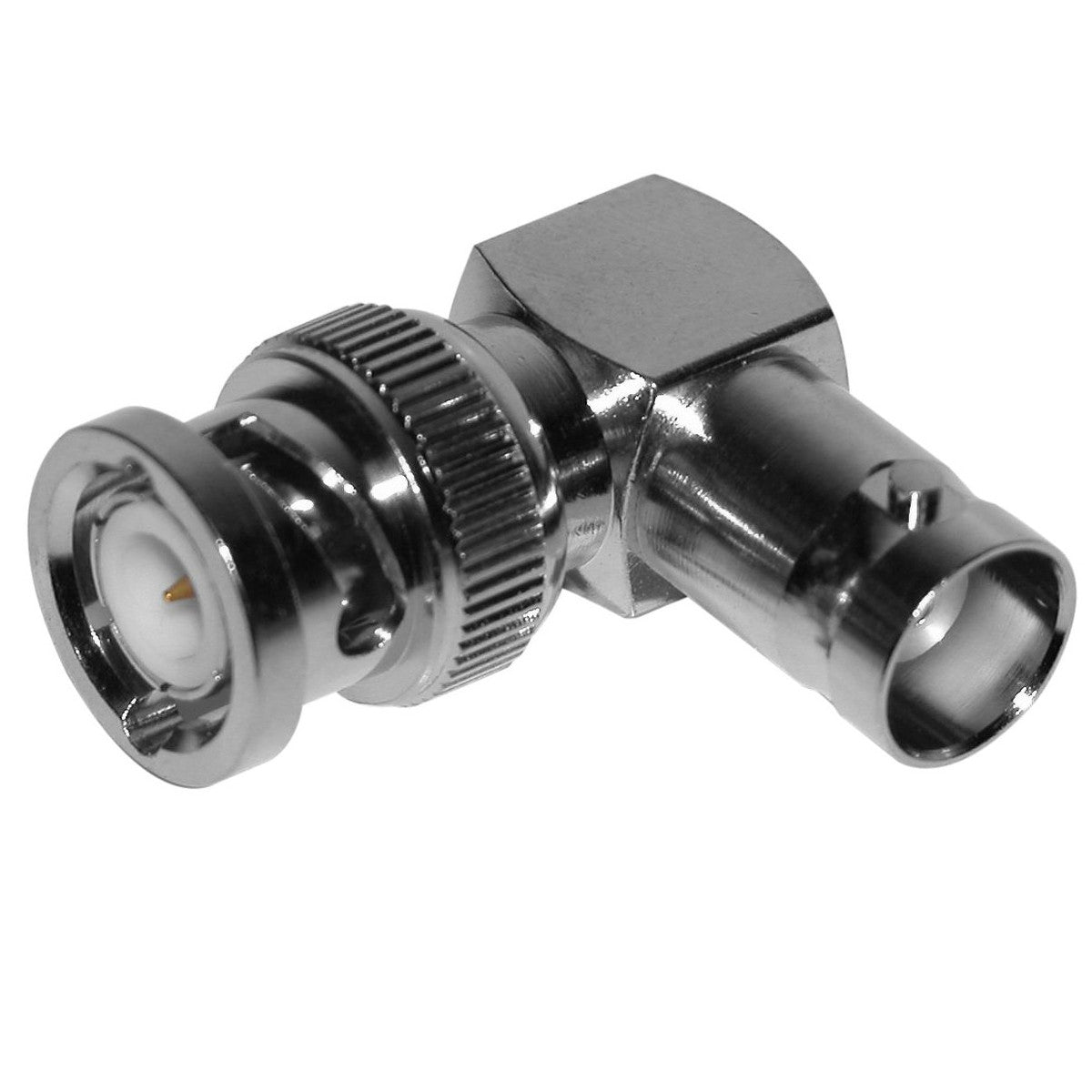

The Pulse BNC-49 Right Angle BNC-Male to BNC-Female Adaptor is designed for high-frequency RF applications, providing a reliable connection between BNC-Male and BNC-Female interfaces. This right-angle adaptor ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

Product Features:

• This adaptor operates over a wide frequency range from 0 MHz to 4000 MHz.
• It has an impedance of 50 ohms, ensuring compatibility with standard RF systems.
• The connector ends are BNC-Male and BNC-Female, providing a secure and stable connection.
• The mounting angle is right, facilitating easy installation in tight spaces.

Application Areas:

• This adaptor is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The adaptor can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable connections between BNC-Male and BNC-Female interfaces.

In the Box:

• 1 x BNC-49 Right Angle BNC-Male to BNC-Female Adaptor.

Please note that when specifying adaptors the specification of the lower frequency series connector over rides that of the higher frequency connector. eg; N Male – SMA Male, the N-type is used as the reference for the specification.

Documents:

Pulse BNC-49 Adaptor - Datasheet
