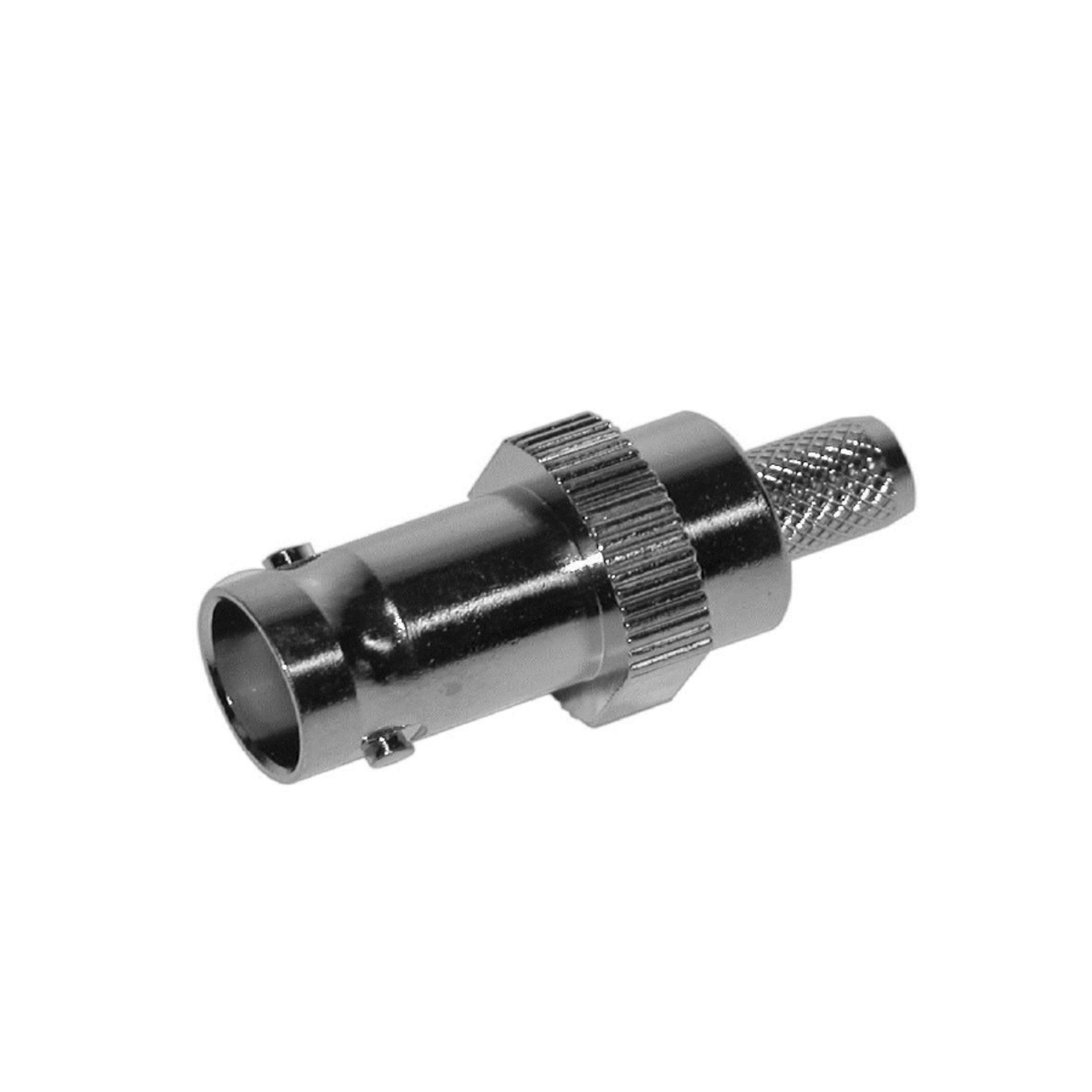

Pulse BNC-86 BNC-Female Connector, Crimp - RG141, RG303 and RG58 Cables

    Pulse BNC-86 BNC-Female Connector, Crimp - RG141, RG303 and RG58 Cables

      Product form
      Brand:
      Pulse
      Item ID:
      168018421
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      BNC-86
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The Pulse BNC-86 BNC-Female Connector is designed for versatile RF applications, providing a reliable connection for RG141, RG303, and RG58 cables.

      Available

      $4.80

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse BNC-86 BNC-Female Connector is designed for versatile RF applications, providing a reliable connection for RG141, RG303, and RG58 cables. This straight mounting connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

        Product Features:

        • This connector features a BNC-Female crimp for RG141, RG303, and RG58 cables.
        • It is designed for straight mounting, providing a secure and stable installation.
        • The connector supports a frequency range from 0 MHz to 4000 MHz.
        • It has an impedance of 50 ohms.
        • Suggested prep toolset: RCT-58S.

        Application Areas:

        • This connector is ideal for use in RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable connections for RG141, RG303, and RG58 cables.

        In the Box:

        • 1 x BNC-86 BNC-Female Connector

        Documents:

        Pulse BNC-86 Connector - Datasheet

        Product Specifications

        MPN BNC-86
        Brands Pulse
        Cable retention 40 lbs min
        Cable supported RG58/U, RG141/U, RG303/U
        Cable type RG58
        Cable type connectors RG174
        Centre conductor Crimp, captice
        Centre contact Crimp
        Component type Connector
        Connector BNC(F)
        Connector end a BNC (F)
        Coupling nut retention 100lbs Max
        Crimp set or tool E
        Durability 500 matings
        Height 2
        Impedance ohm 50
        Inner attachment Crimp
        Length 4
        Mating Two stud bayonet coupling
        Max frequency 4 GHz
        Max frequency mhz 4000
        Min frequency mhz 0
        Mounting angle Straight
        Outer contact Crimp
        Prep toolset RCT-58S
        Salt spray MIL-STD-101 Test Cond B
        Temperature range -65?to 165?C
        Thermal shock MIL-STD-107 Test Cond B
        Vibration MIL-STD-202 Test Cond B
        Width 2
