Pulse BNC-88 BNC-Female Connector, Crimp Bulkhead - RG141, RG303 and RG58 Cables

    Pulse BNC-88 BNC-Female Connector, Crimp Bulkhead - RG141, RG303 and RG58 Cables

      Product form
      Brand:
      Pulse
      Item ID:
      168018423
      MPN:
      BNC-88
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

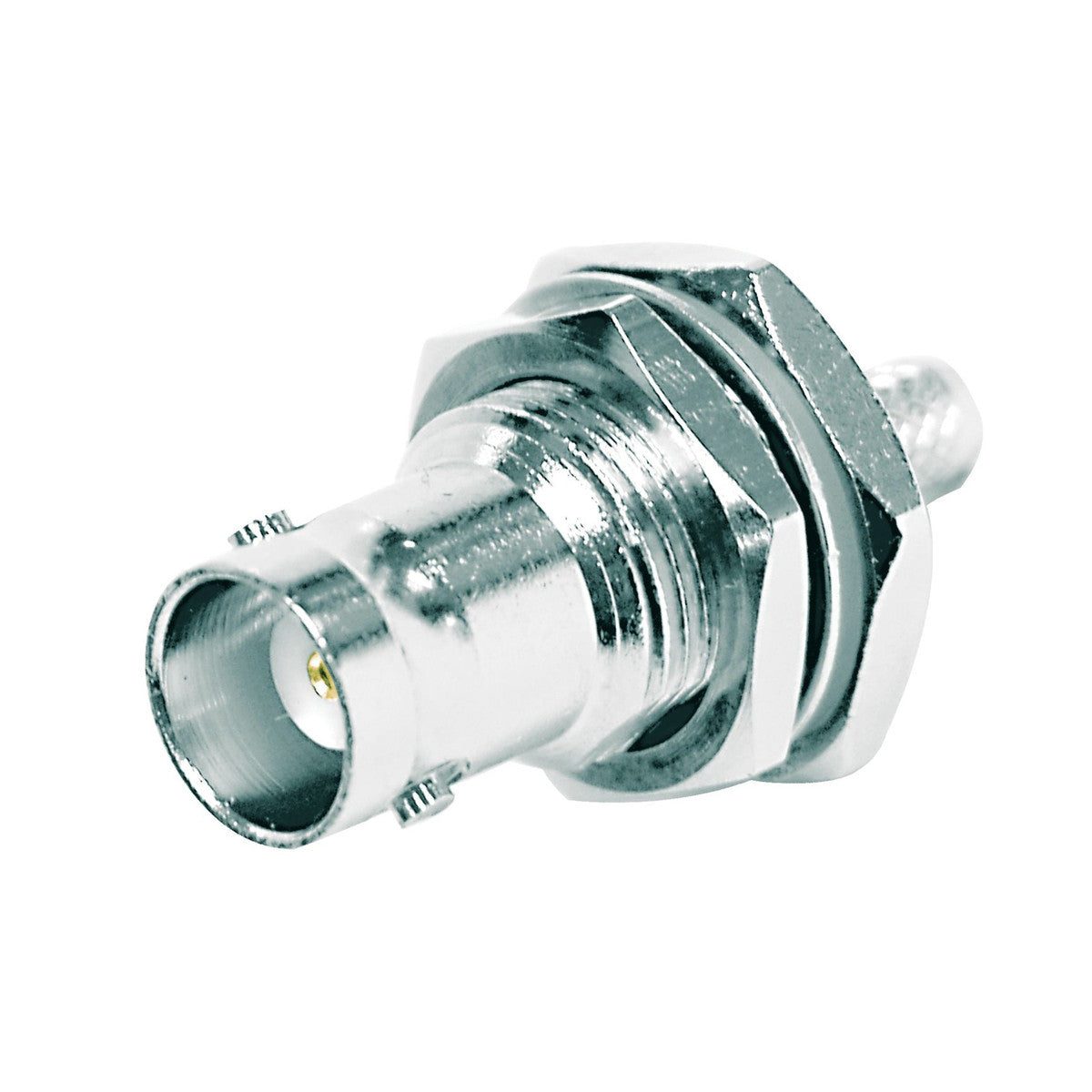

      The Pulse BNC-88 BNC-Female Connector is designed for versatile RF applications, providing a reliable connection for RG141, RG303, and RG58 cables.

      Available

      $13.18

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse BNC-88 BNC-Female Connector is designed for versatile RF applications, providing a reliable connection for RG141, RG303, and RG58 cables. This bulkhead connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

        Product Features:

        • This connector features a BNC-Female crimp for RG141, RG303, and RG58 cables.
        • It is designed for bulkhead mounting, providing a secure and stable installation.
        • The connector supports a frequency range from 0 MHz to 4000 MHz.
        • It has an impedance of 50 ohms.
        • Suggested prep toolset: RCT-58S.

        Application Areas:

        • This connector is ideal for use in RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable connections for RG141, RG303, and RG58 cables.

        In the Box:

        • 1 x BNC-88 BNC-Female Connector, Crimp Bulkhead.
        Pulse BNC-88 Connector - Datasheet

        Product Specifications

        Brand Pulse
        Length 4
        Width 2
        Height 2
        Cable Retention 40 lbs min
        Cable Supported RG58/U, RG141/U, RG303/U
        Cable Type RG58
        Cable Type Connectors RG174
        Centre Contact Solder
        Component Type Connector
        Connector BNC(F)
        Connector End A BNC (F)
        Coupling Nut Retention 100lbs Max
        Durability 500 matings
        Impedance [Ω] 50
        Inner Attachment Crimp
        Mating Two stud bayonet coupling
        Max Frequency 4 GHz
        Max Frequency (MHz) 4000
        Min Frequency (MHz) 0
        Mounting Angle Straight
        Outer Contact Clamp
        Prep Toolset RCT-58S
        Salt Spray MIL-STD-101 Test Cond B
        Temperature Range -65?to 165?C
        Thermal Shock MIL-STD-107 Test Cond B
        Vibration MIL-STD-202 Test Cond B
