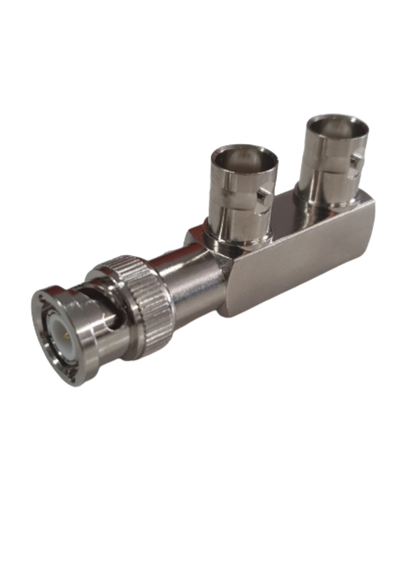

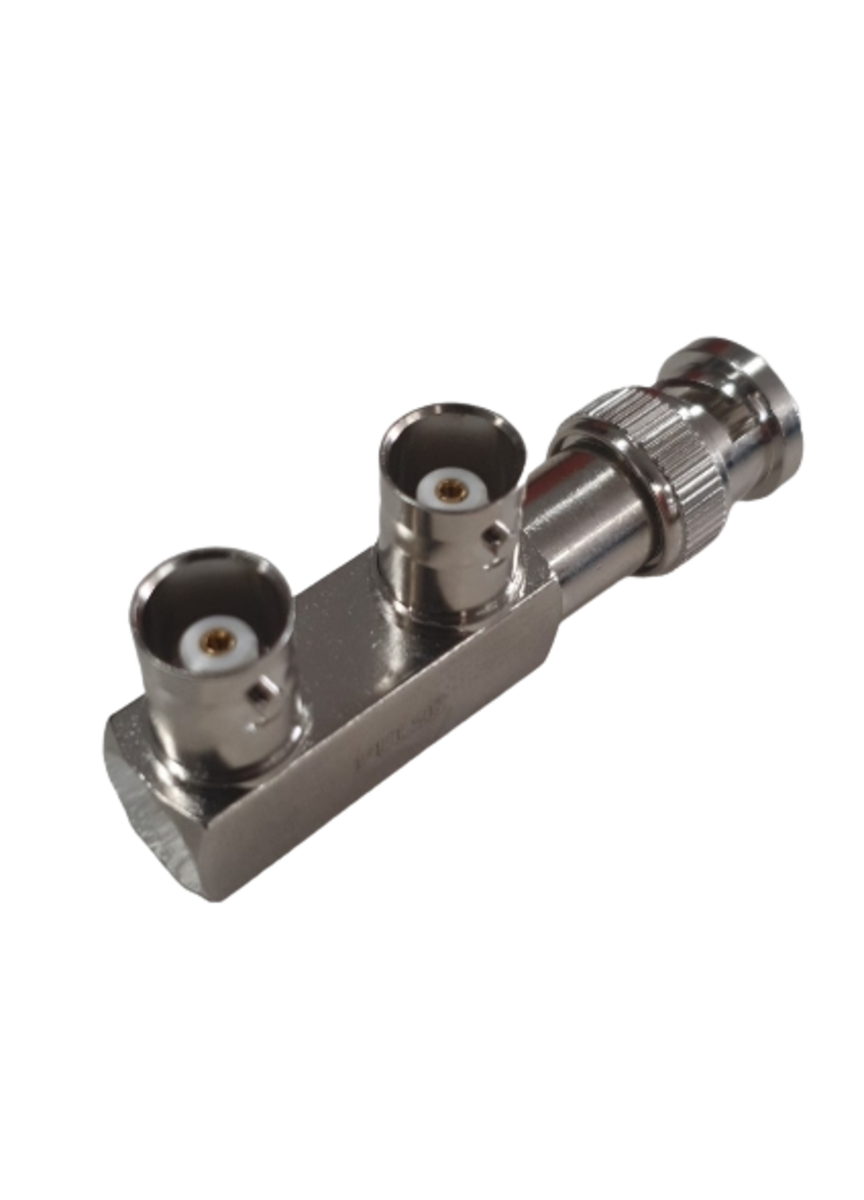

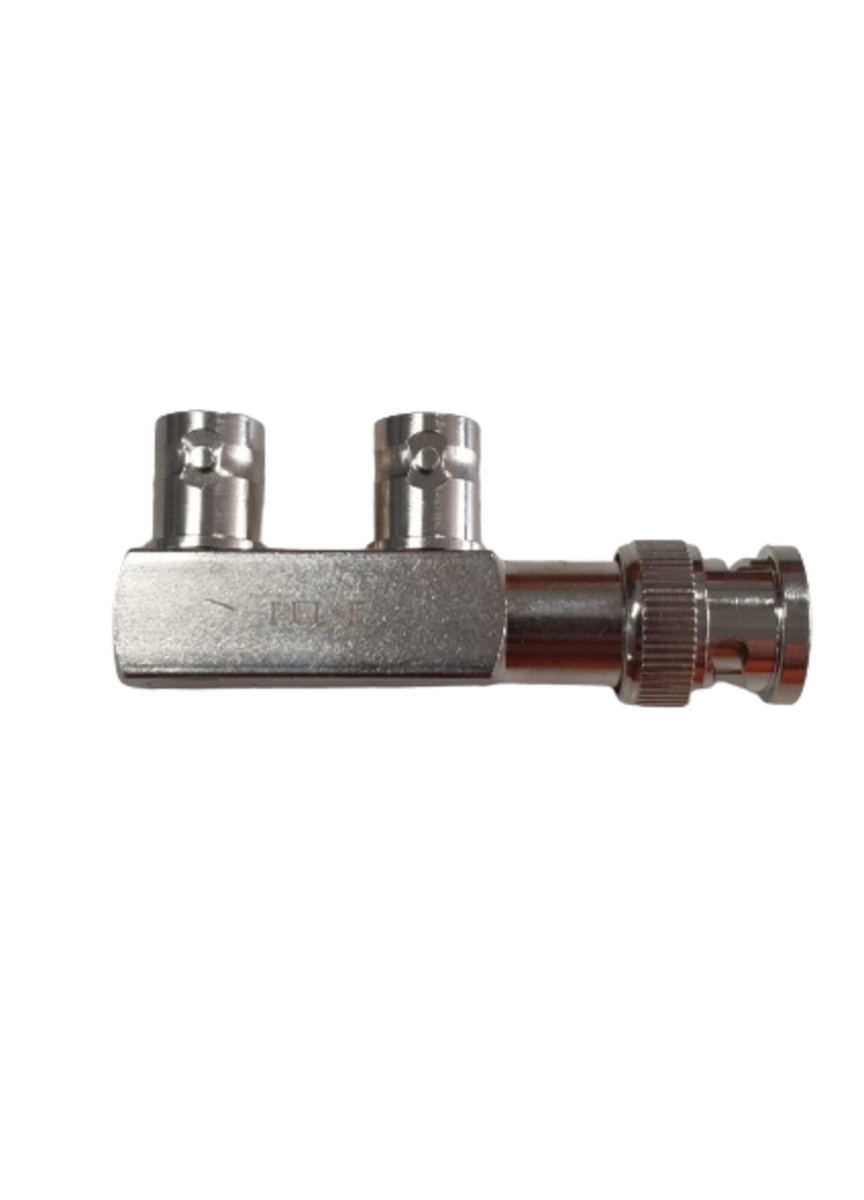

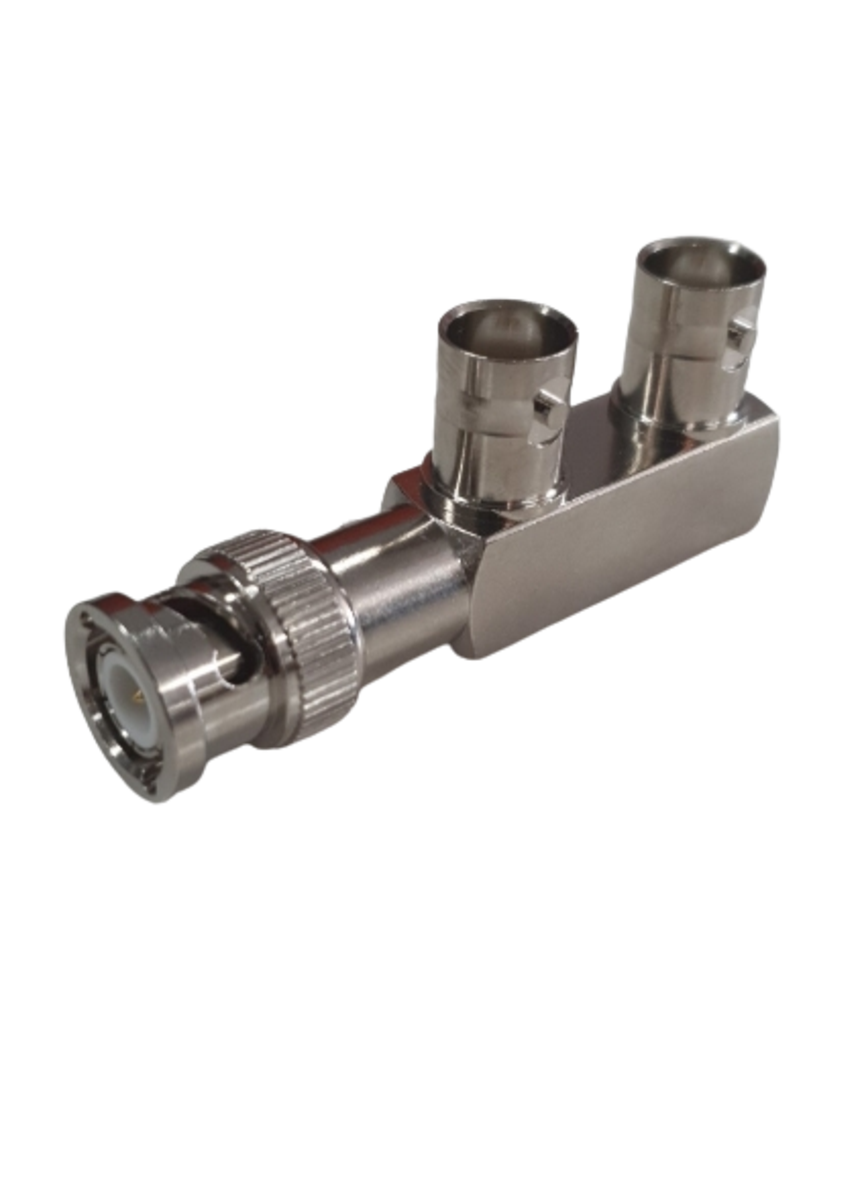

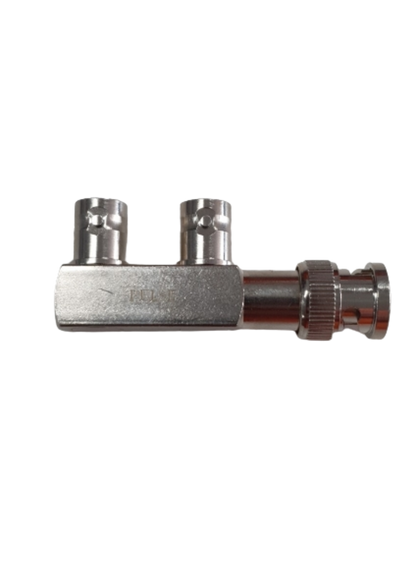

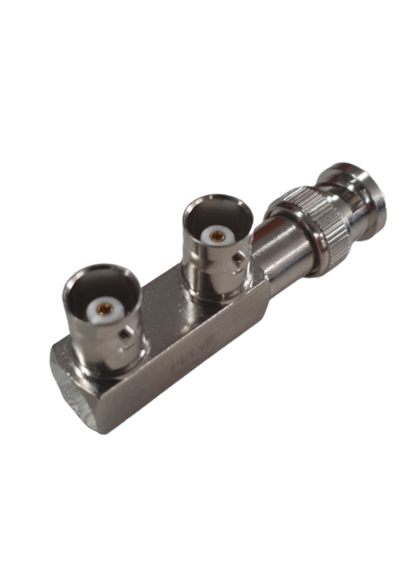

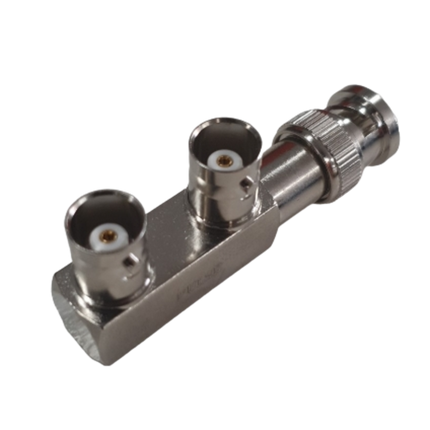

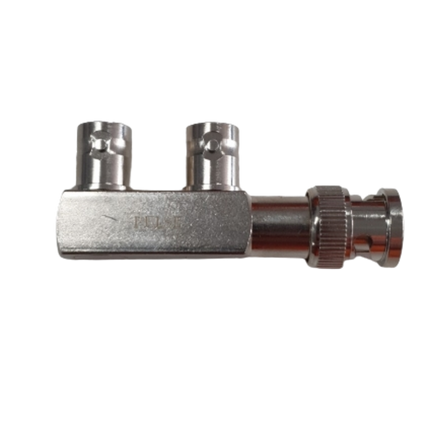

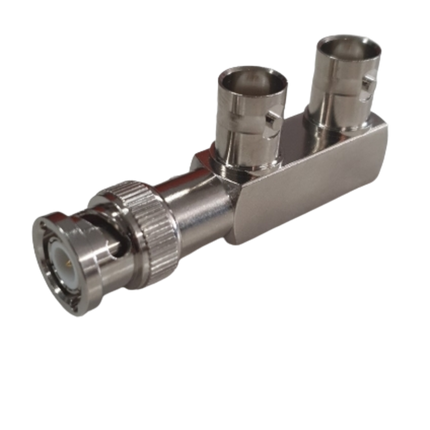

Pulse BNC-81 Tee Adaptor, BNC-Male and BNC-Female

Pulse BNC-81 Tee Adaptor, BNC-Male and BNC-Female

Available

Brand:
Item ID:
168018236
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
BNC-S363BNC-C73
Send Request for Quote (RFQ)
The Pulse BNC-81 Tee Adaptor is a versatile connector designed for various RF applications. This adaptor features a BNC-Male and two BNC-Female connectors.
Regular price $20.50
Regular price $0.00 Sale price $20.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse BNC-81 Tee Adaptor is a versatile connector designed for various RF applications. This adaptor features a BNC-Male and two BNC-Female connectors, making it suitable for splitting or combining signals.

Product Features:

  • This adaptor has a BNC-Male and two BNC-Female connectors.
  • It operates from DC to 4 GHz, providing a wide frequency range.
  • The impedance is 50 ohms, ensuring optimal signal transmission.
  • The mounting angle is a tee configuration, ideal for splitting or combining signals.

Application Areas:

  • This adaptor is perfect for RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The adaptor can be used in instrumentation and testing environments.
  • It is ideal for applications requiring secure and stable connections with BNC connectors.

In the Box:

  • 1 x BNC-81 Tee Adaptor

Documents:

Pulse BNC-81 Tee Adaptor - Datasheet

Product Specifications

MPN BNC-S363BNC-C73
Brands Pulse
Cable retention 40 lbs min
Component type Within Series Adapter
Coupling nut retention 100lbs Max
Durability 500 matings
Height 2
Impedance ohm 50
Length 4
Max frequency 4 GHz
Max frequency mhz 4000
Min frequency mhz 0
Mounting angle Tee
Salt spray MIL-STD-101 Test Cond B
Thermal shock MIL-STD-107 Test Cond B
Vibration MIL-STD-202 Test Cond B
Width 2
