Pulse D43-101 4.3-10-Male Connector, Crimp - RG214 Cable

Pulse D43-101 4.3-10-Male Connector, Crimp - RG214 Cable

Available

Brand:
Item ID:
168018426
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
D43-101
Send Request for Quote (RFQ)
The Pulse D43-101 4.3-10-Male Connector is designed for versatile RF applications, providing a reliable connection for RG214 cables.
Regular price $25.50
Regular price $0.00 Sale price $25.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

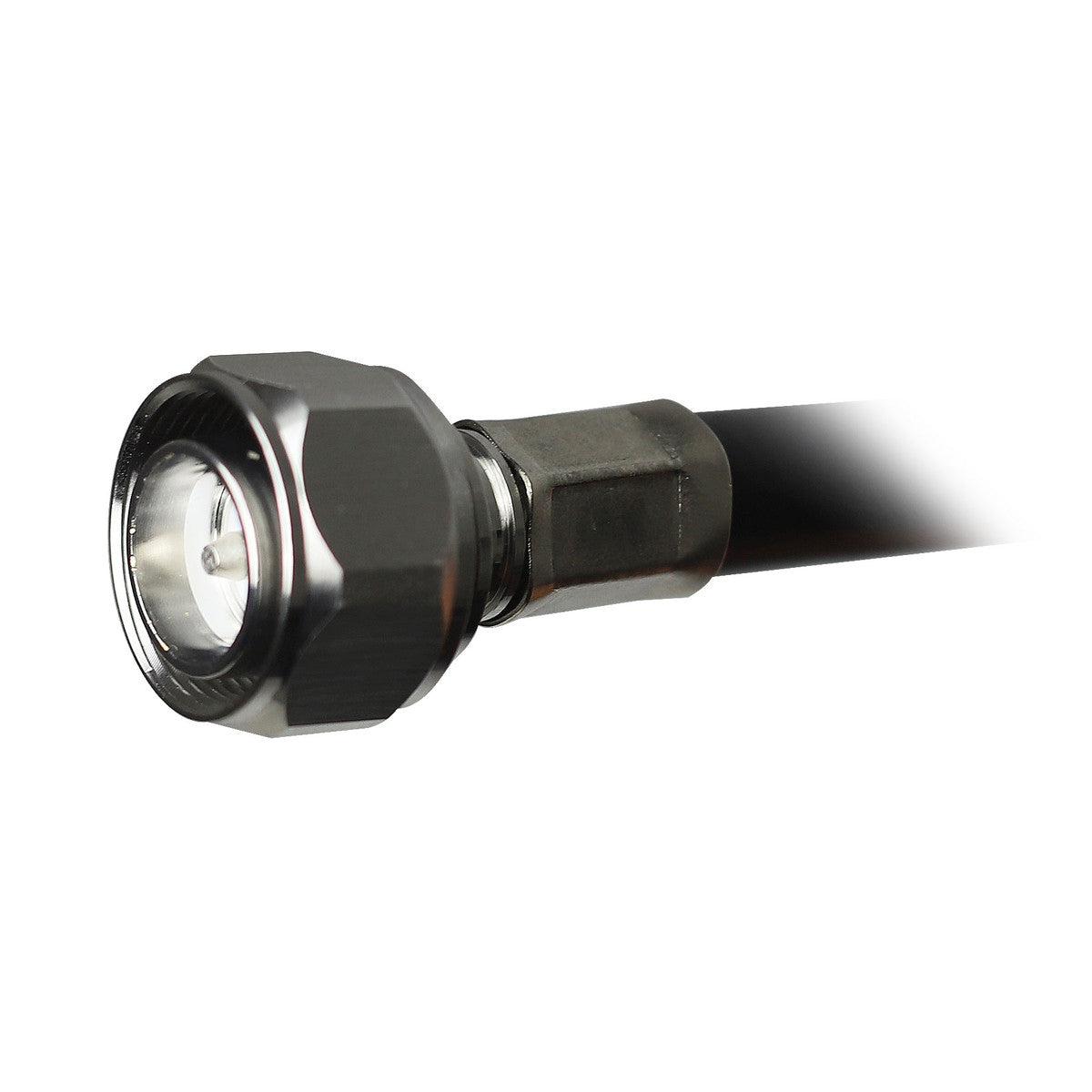

The Pulse D43-101 4.3-10-Male Connector is designed for versatile RF applications, providing a reliable connection for RG214 cables. This connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features a captive/crimp plug for RG214 cables.
  • It has a captive inner contact ('push fit') and an outer contact hex crimp size of 10.9.
  • The inner conductor is made of beryllium bronze with silver plating.
  • The outer conductor and body are made of brass with trimetal plating.
  • The insulator is made of PTFE.
  • The nut is made of brass with nickel plating.
  • The gasket is made of silicone.
  • The ferrule is made of brass with nickel plating.
  • It has an impedance of 50 ohms.
  • The frequency range is DC to 6 GHz.
  • The temperature range is -65°C to +165°C.
  • Suggested prep toolset: RCT-58S.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections for RG214 cables.

In the Box:

  • 1 x D43-101 4.3-10-Male Connector, Crimp.

Documents:

Pulse D43-101 Connector - Datasheet
