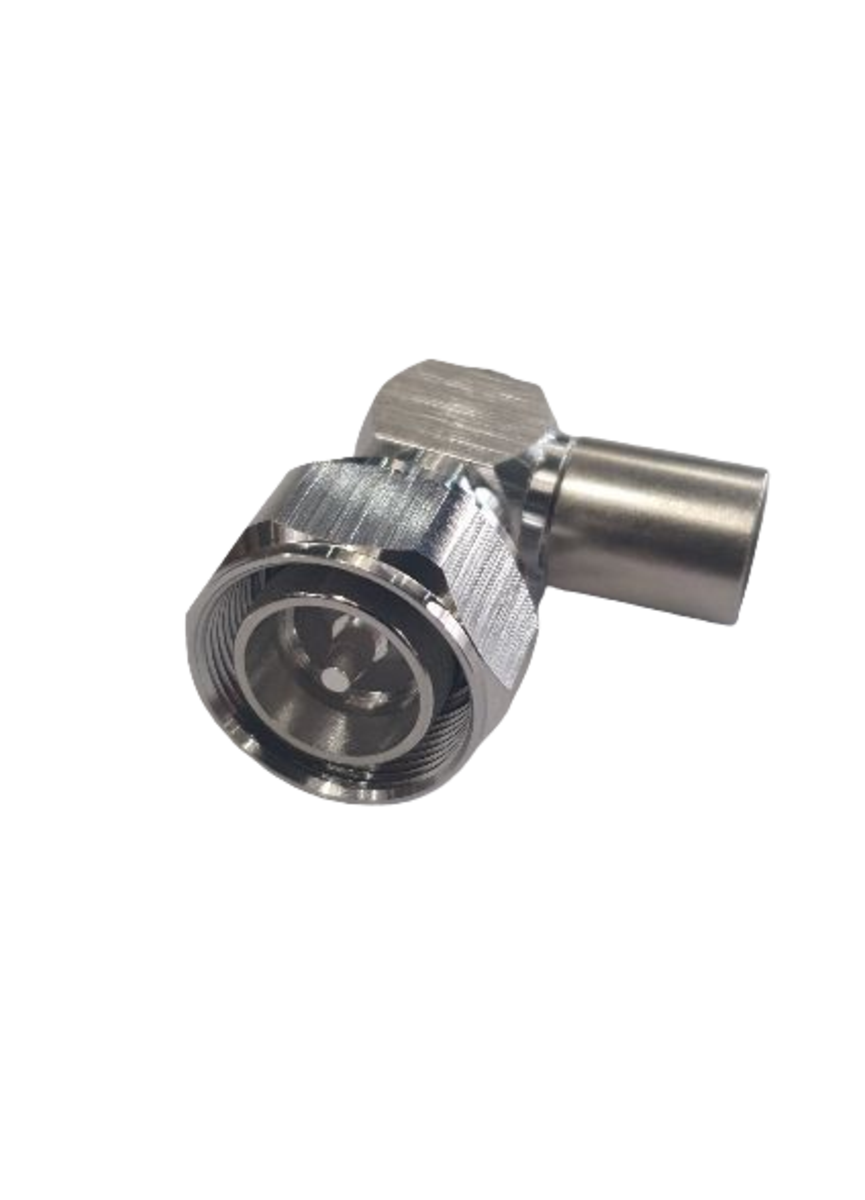

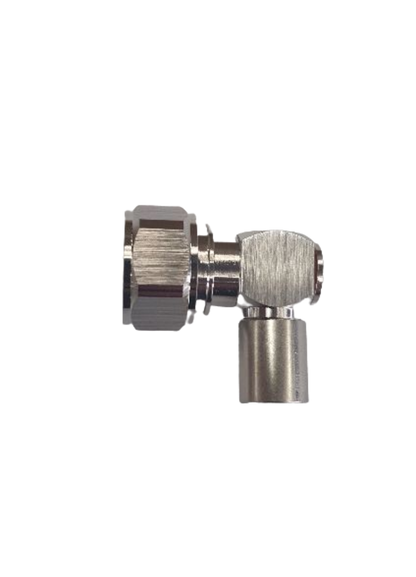

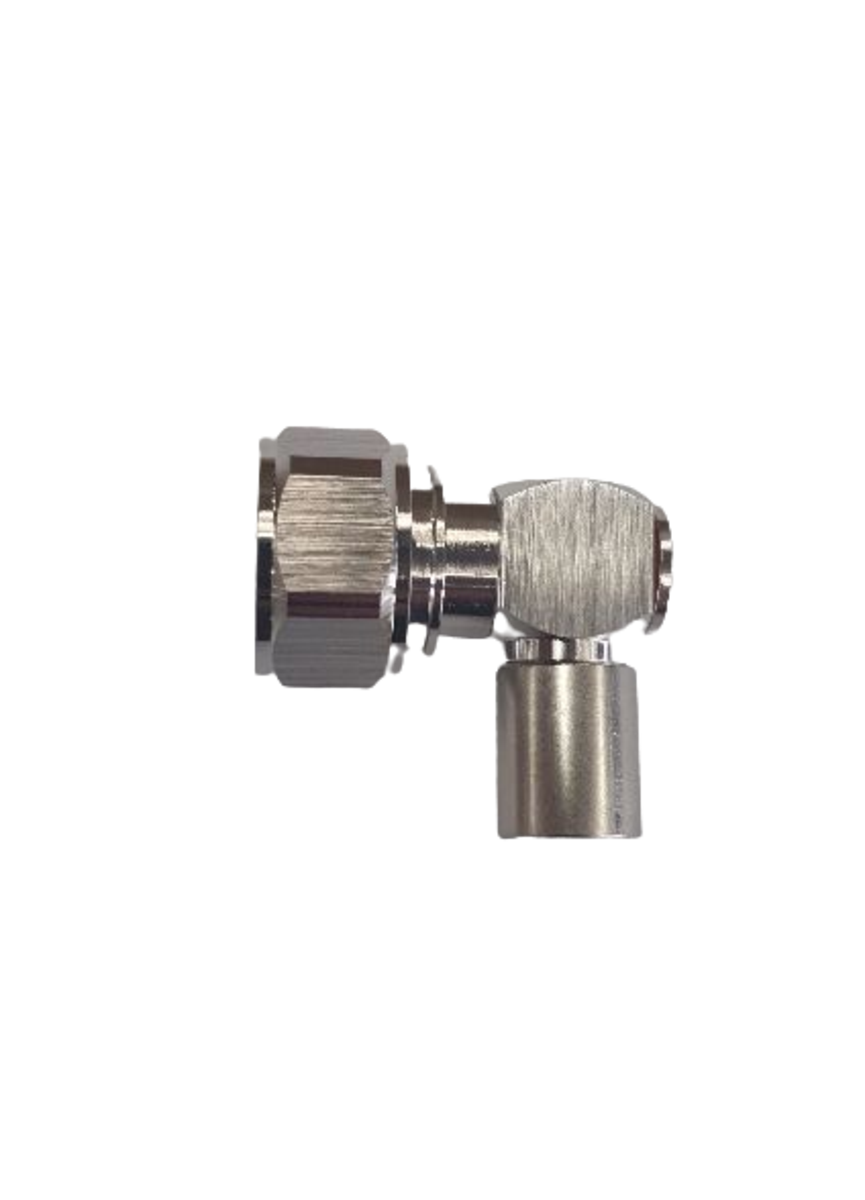

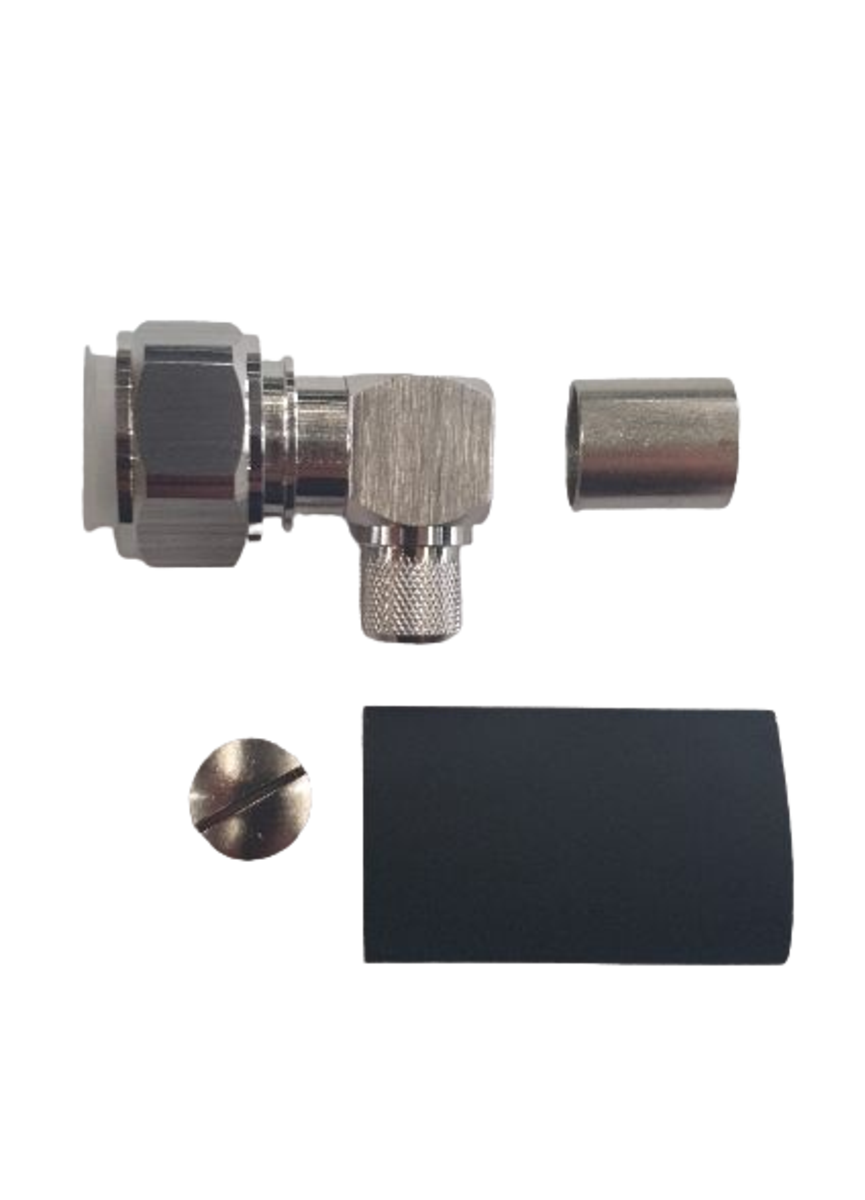

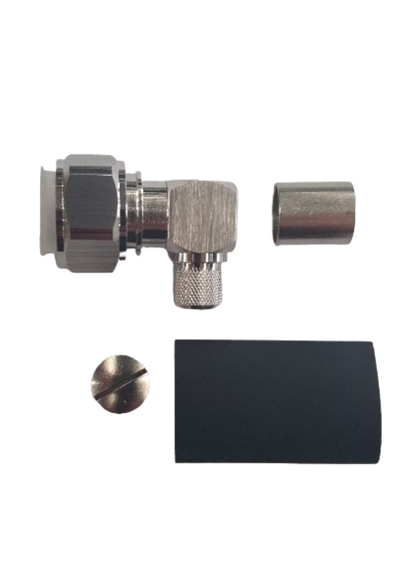

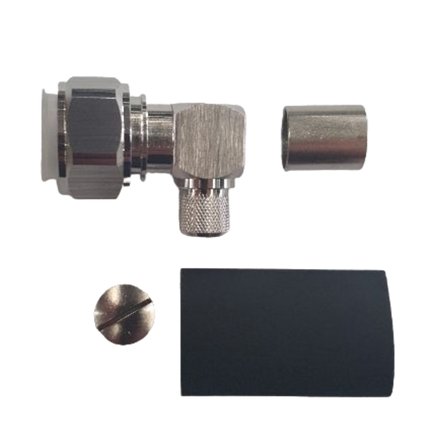

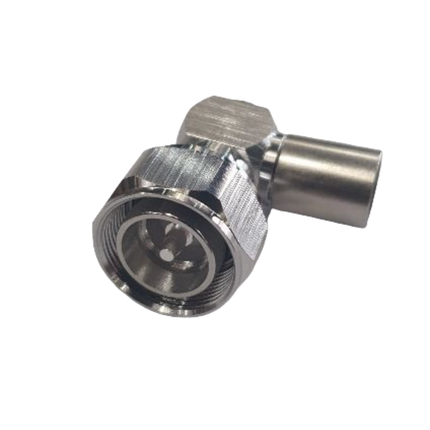

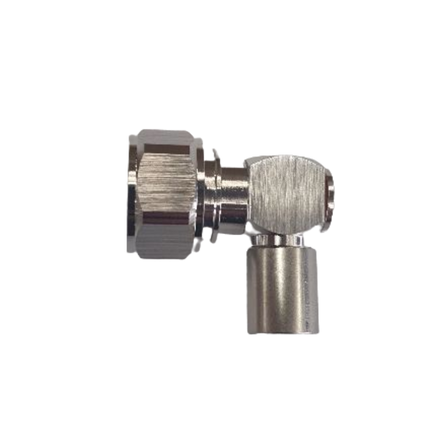

Pulse D43-103 4.3-10-Male Right Angle Connector, Solder/Crimp - RG214 Cable

Pulse D43-103 4.3-10-Male Right Angle Connector, Solder/Crimp - RG214 Cable

Sold out

Brand:
Item ID:
168018261
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
D43-103
Send Request for Quote (RFQ)
Pulse D43-103 4.3-10-Male Right Angle Connector, Solder/Crimp - RG214 Cable, specifically designed for mobile network equipment.
Regular price $16.95
Regular price $0.00 Sale price $16.95
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

Pulse D43-103 4.3-10-Male Right Angle Connector, Solder/Crimp - RG214 Cable, specifically designed for mobile network equipment, such as connecting the Remote Radio Unit (RRU) to the antenna. These connectors are known for their compact size, excellent electrical performance, low Passive Intermodulation (PIM), low coupling torque, and ease of installation.

Product Features:

  • This connector has a right-angle body style with a 4.3-10 Male interface.
  • It features an inner contact that is soldered and silver-plated.
  • The outer contact is hex crimped (size 10.9) and trimetal-plated.
  • It has an impedance of 50 ohms.
  • The frequency range is from DC to 6 GHz.
  • The insulation resistance is ≥10000 MΩ.
  • The dielectric withstanding voltage is 2500 V rms.
  • The operating voltage is 1400 V rms.
  • It has a durability of ≥500 cycles.
  • The installation mode of the center contact is pushing fit.
  • The temperature range is from -65°C to +85°C.

Application Areas:

  • It is ideal for use in mobile network equipment.
  • This connector is particularly suitable for connecting the Remote Radio Unit (RRU) to the antenna.
  • It is designed for various demanding applications in the telecommunications industry.

In the Box:

  • 1x Pulse D43-103 4.3-10-Male Right Angle Connector

Product Specifications

MPN D43-103
Brands Pulse
Cable supported RG214
Cable type RG214
Cable type connectors RG214
Component type Connector
Connector 4.3-10(M)
Connector end a 4.3-10 (M)
Height 2
Impedance ohm 50
Inner attachment Solder, Crimp
Length 4
Max frequency mhz 6000
Min frequency mhz 0
Mounting angle Right Angle
Prep toolset Other
Return loss db <0.1
Vswr <1.35:1
Width 2
