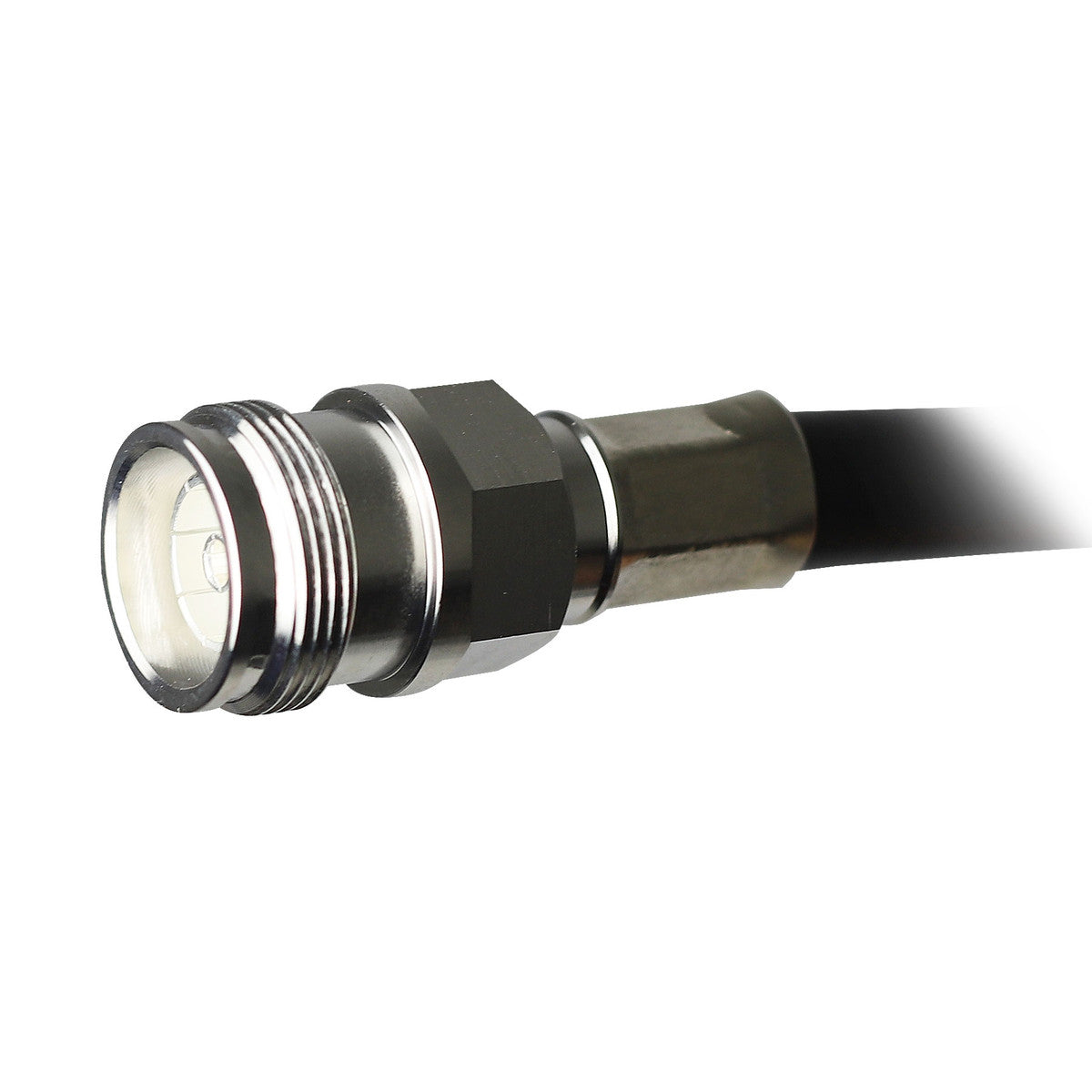

Pulse D43-112 4.3-10-Female Connector, Solder/Crimp - CNT-400 Cable

Pulse D43-112 4.3-10-Female Connector, Solder/Crimp - CNT-400 Cable

Available

Brand:
Item ID:
168018429
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
D43-112
Send Request for Quote (RFQ)
The Pulse D43-112 4.3-10-Female Connector is designed for versatile RF applications, providing a reliable connection for CNT-400 cables.
Regular price $26.30
Regular price $0.00 Sale price $26.30
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse D43-112 4.3-10-Female Connector is designed for versatile RF applications, providing a reliable connection for CNT-400 cables. This connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features a solder/crimp connection for CNT-400 cables.
  • The centre contact is made of brass with silver plating (solder pin).
  • The outer contact and body are made of brass with trimetal plating.
  • The dielectric is made of PTFE.
  • The gasket is made of silicon rubber.
  • The nut is made of brass with nickel plating.
  • It has an impedance of 50 ohms.
  • The frequency range is DC to 6 GHz.
  • The dielectric strength is 2500V rms (AC).
  • The model number is D43-112.
  • The temperature range is -45°C to +85°C.
  • Suitable cables include LMR400, CNT400, and RG8.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections for CNT-400 cables.

In the Box:

  • 1 x D43-112 4.3-10-Female Connector, Solder/Crimp.

Documents:

Pulse D43-112 Connector - Datasheet

Product Specifications

MPN D43-112
Brands Pulse
Cable supported LMR400, CNT400, RG8
Cable type CNT-400
Cable type connectors RG214
Component type Connector
Connector 4.3-10 (F)
Connector end a 4.3-10 (F)
Height 2
Impedance ohm 50
Inner attachment Solder, Crimp
Length 4
Max frequency mhz 6000
Min frequency mhz 0
Mounting angle Straight
Prep toolset Other
Return loss db <0.1
Vswr <1.35:1
Width 2
