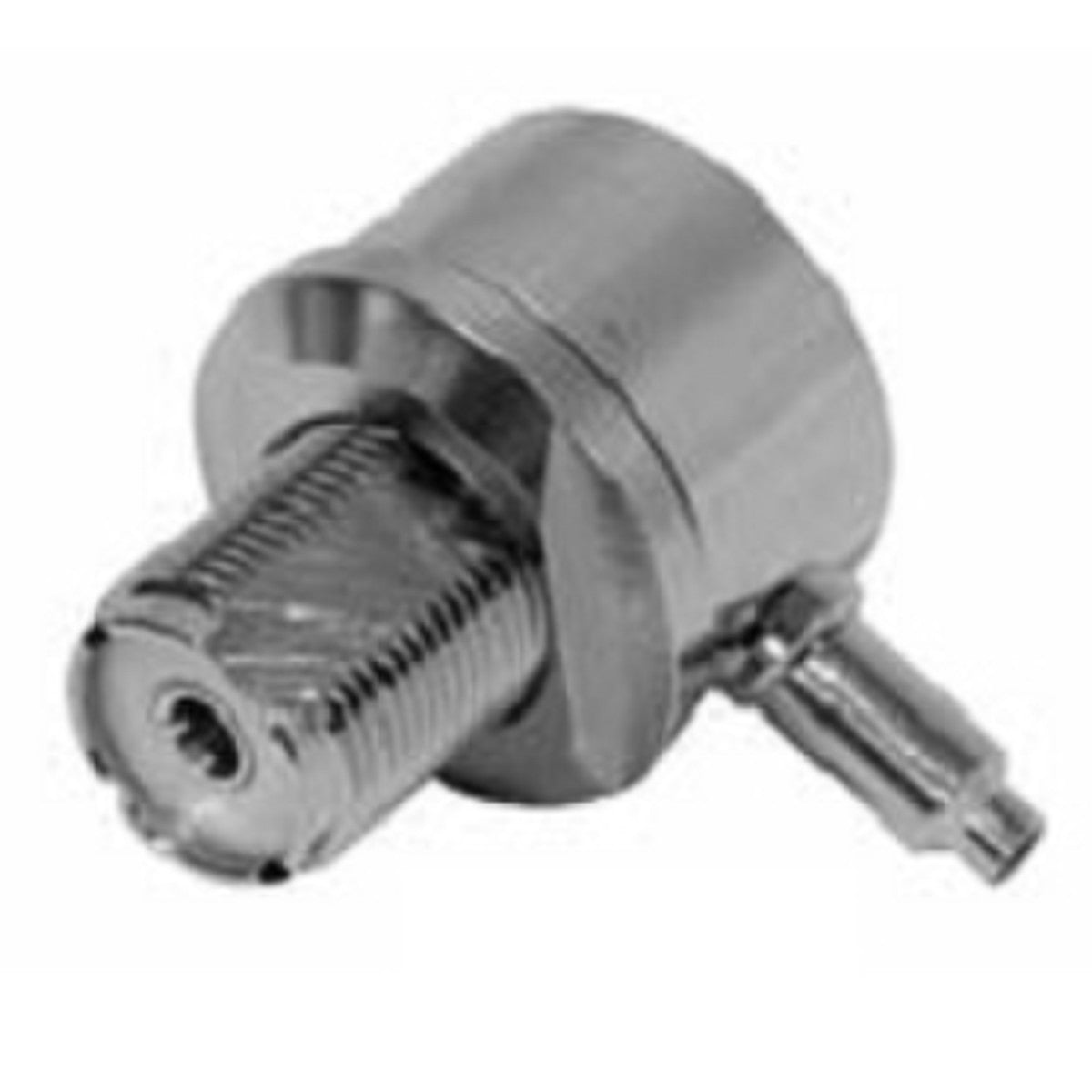

Pulse MBC-WD UHF-Female Mobile Base Connector with O-Ring for RG58, RG316 and RG174 Cables

    Pulse MBC-WD UHF-Female Mobile Base Connector with O-Ring for RG58, RG316 and RG174 Cables

      Product form
      Brand:
      Item ID:
      168018242
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      MBC-WD

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The Pulse MBC-WD UHF-Female Mobile Base Connector is designed for RG58, RG316 and RG174 Cables, reliable and secure RF connections in mobile applications.

      Available

      $13.40

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse MBC-WD UHF-Female Mobile Base Connector is designed for RG58, RG316 and RG174 Cables, reliable and secure RF connections in mobile applications. This connector is part of the MBC UHF Series, known for its robust construction and water-resistant features.

        Product Features:

        • This connector is a UHF-Female right-angle bulkhead mobile mount.
        • It is nickel-plated and water-resistant, ensuring durability in various environments.
        • The connector supports RG174/U, RG316/U, and RG58/U cables.
        • It operates from 0 to 300 MHz, suitable for low-frequency applications.
        • The impedance is 50 ohms, providing optimal signal transmission.
        • The centre conductor can be crimped or soldered for secure connections.
        • It requires a 16 mm hole for installation.
        • The suggested crimp tool for this connector is the RCT-58S.

        Application Areas:

        • This connector is ideal for mobile RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable connections with RG58 and RG174 cables.

        In the Box:

        • 1 x MBC-WD UHF-Female Mobile Base Connector

        Documents:

        Pulse MBC-WD UHF-Female Mobile Base with O-Ring - Datasheet

        Product Specifications

        MPN MBC-WD
        Brands Pulse
        Cable supported RG174/U, RG58/U, RG316/U
        Cable type connectors RG58, RG174
        Centre conductor Crimp/solder
        Connector end a UHF (F)
        Height 2
        Impedance ohm 50
        Inner attachment Other
        Length 4
        Max frequency mhz 300
        Min frequency mhz 0
        Mounting angle Right Angle
        Prep toolset RCT-58S
        Width 2
