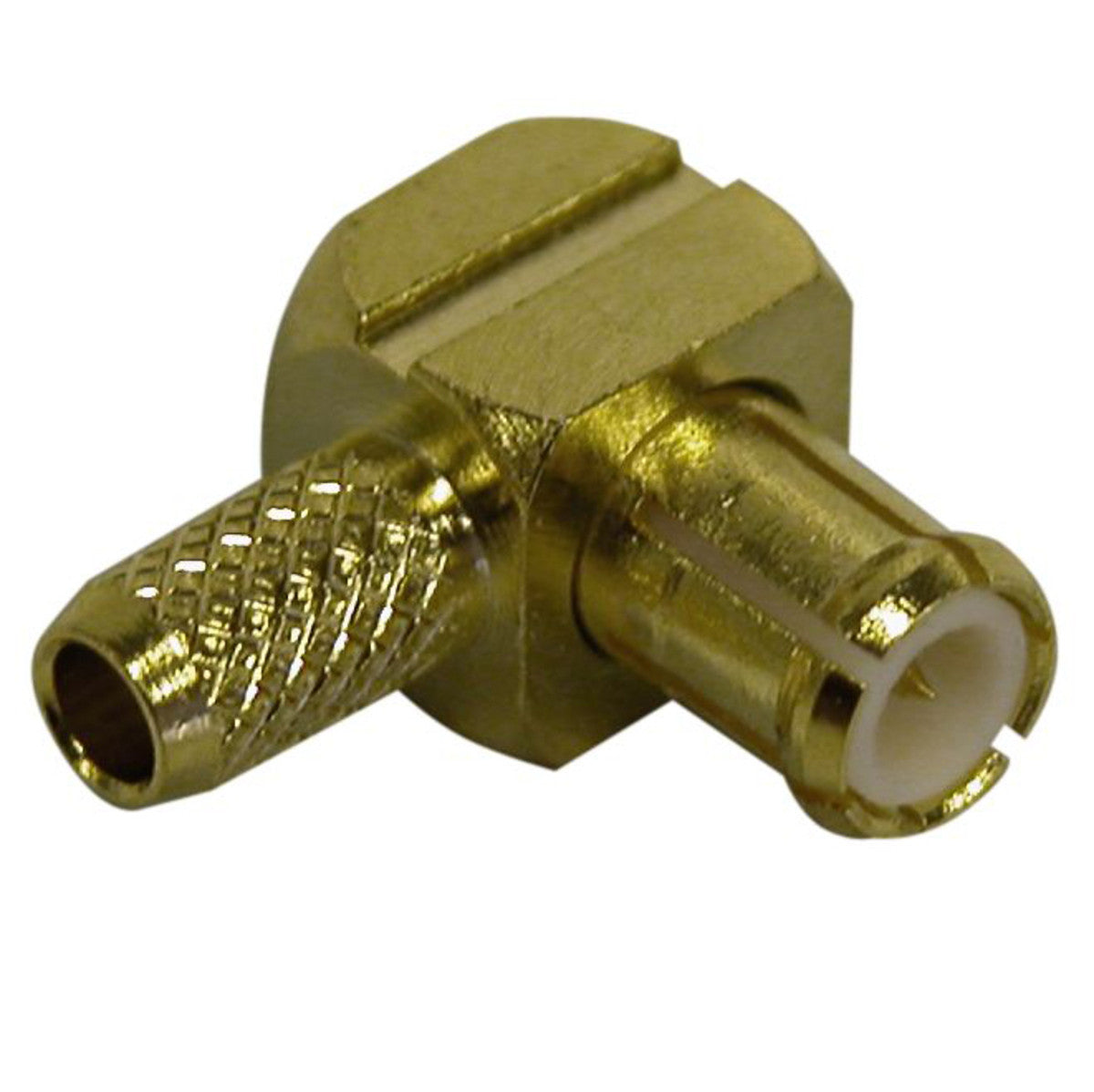

Pulse MCX-02 Right Angle MCX-Male Connector for RG174, RG188 and RG316 Cables

Pulse MCX-02 Right Angle MCX-Male Connector for RG174, RG188 and RG316 Cables

Sold out

Brand:
Item ID:
168018360
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
MCX-S3621101R5
Send Request for Quote (RFQ)
Pulse MCX-02 Right Angle MCX-Male Connector is designed for versatile RF applications, providing a reliable connection for RG174, RG188, and RG316 cables.
Regular price $8.60
Regular price $0.00 Sale price $8.60
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse MCX-02 Right Angle MCX-Male Connector is designed for versatile RF applications, providing a reliable connection for RG174, RG188, and RG316 cables. This right-angle connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features MCX-Male to RG174, RG188, and RG316 cable compatibility.
  • It is designed with a right-angle configuration for space-saving installations.
  • The connector ensures optimal signal transmission with minimal loss.
  • Centre contact is soldered for a robust connection.
  • Outer contact is crimped for ease of installation.
  • Durability rated for multiple matings.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG174, RG188, and RG316 cables.

In the Box:

  • 1 x MCX-02 Right Angle MCX-Male Connector

Documents:

Pulse MCX-02 Plug Connector - Datasheet

Product Specifications

MPN MCX-S3621101R5
Brands Pulse
Cable supported RG174/U, RG316/U, RG188A/U
Cable type RG174
Cable type connectors RG174
Centre conductor Solder
Component type Connector
Connector MCX(M)
Connector end a MCX (M)
Height 2
Impedance ohm 50
Inner attachment Other
Length 4
Max frequency mhz 6000
Min frequency mhz 0
Mounting angle Right Angle
Prep toolset RCT-174
Width 2
