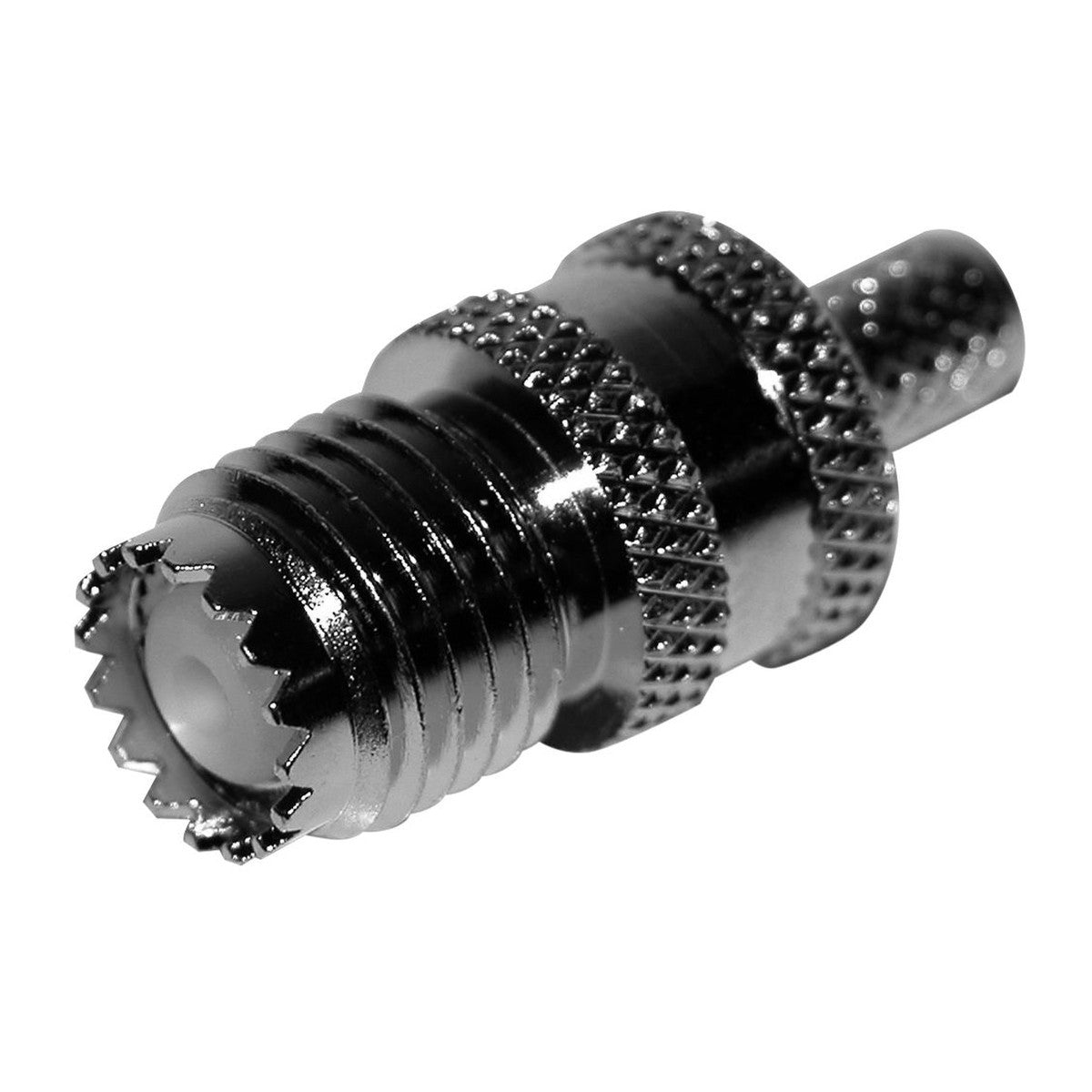

Pulse MPL-86 MPL-Female Connector, Crimp - RG58, RG141 and RG303 Cables

Pulse MPL-86 MPL-Female Connector, Crimp - RG58, RG141 and RG303 Cables

Available

Brand:
Item ID:
168018364
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
MPL-86
Send Request for Quote (RFQ)
The Pulse MPL-86 MPL-Female Connector is designed for versatile RF applications, providing a reliable connection for RG58, RG141, and RG303 cables.
Regular price $6.10
Regular price $0.00 Sale price $6.10
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse MPL-86 MPL-Female Connector is designed for versatile RF applications, providing a reliable connection for RG58, RG141, and RG303 cables. This connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features MPL-Female to RG58, RG141, and RG303 cable compatibility.
  • It is designed for crimping, providing a secure and stable installation.
  • The connector ensures optimal signal transmission with minimal loss.
  • Inner attachment is crimped for a robust connection.
  • Supports a frequency range from 0 to 2500 MHz.
  • Impedance of 50 ohms.
  • Mounting angle is straight for easy installation.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG58, RG141, and RG303 cables.

In the Box:

  • 1 x MPL-86 MPL-Female Connector

Documents:

Pulse MPL-86 Connector - Datasheet

Product Specifications

MPN MPL-86
Brands Pulse
Cable supported RG58/U, RG141/U, RG303/U
Cable type RG58
Cable type connectors RG58
Centre conductor Crimp
Component type Connector
Connector MPL(F)
Connector end a MPL (F)
Height 2
Impedance ohm 50
Inner attachment Crimp
Length 4
Max frequency mhz 2500
Min frequency mhz 0
Mounting angle Straight
Prep toolset RCT-58S
Width 2
