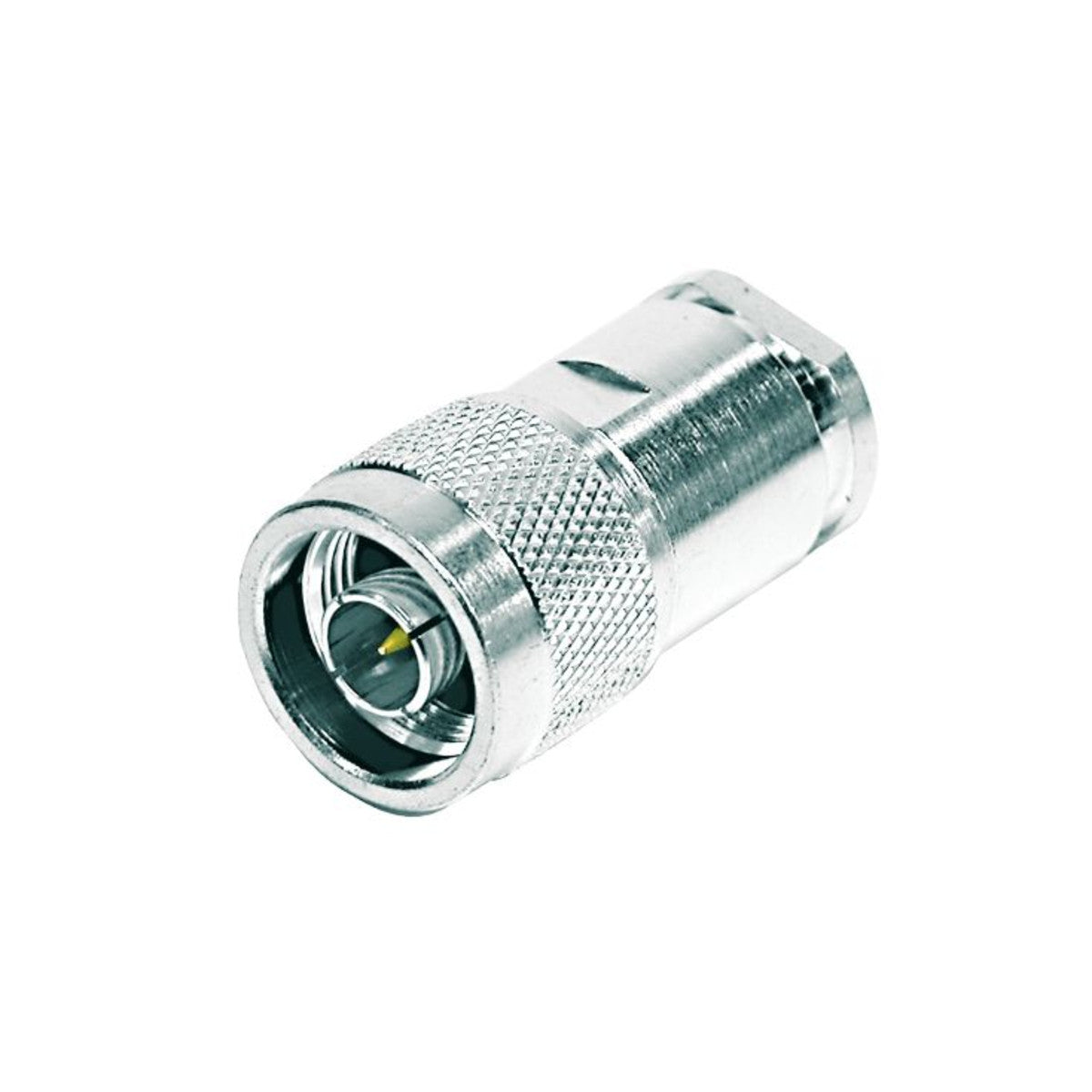

Pulse N-07 N-Male Connector, Solder - RG213 and RG214 Cables

Pulse N-07 N-Male Connector, Solder - RG213 and RG214 Cables

Available

Brand:
Item ID:
168018365
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
N-07
Send Request for Quote (RFQ)
The Pulse N-07 N-Male Connector is designed for high-performance RF applications, providing a reliable connection for RG213 and RG214 cables.
Regular price $18.55
Regular price $0.00 Sale price $18.55
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse N-07 N-Male Connector is designed for high-performance RF applications, providing a reliable connection for RG213 and RG214 cables. This straight connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • The connector features N-Male to RG213 and RG214 cable compatibility.
  • It is designed for soldering and clamping, providing a secure and stable installation.
  • The connector ensures optimal signal transmission with minimal loss.
  • The inner contact is soldered for a robust connection.
  • The outer contact is clamped for ease of installation.
  • Mating is achieved with a 5/8" - 24 threaded coupling.
  • The connector has a durability rating of 500 matings.
  • The coupling nut has a retention capacity of up to 100 lbs max.
  • The cable retention is 40 lbs min.
  • The temperature range is from -65° to 165°C.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG213 and RG214 cables.

In the Box:

  • 1 x N-07 N-Male Connector

Documents:

Pulse N-07 Connector - Product Overview Pulse N-07 Connector - Datasheet Pulse N-07 Connector - Installation Guide

Product Specifications

MPN N-07
Brands Pulse
Cable supported RG214/U, RG213/U
Cable type RG214
Cable type connectors RG213
Centre conductor Captive, Solder
Component type Connector
Connector N(M)
Connector end a N (M)
Crimp set or tool -
Height 2
Impedance ohm 50
Inner attachment Solder
Length 4
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Straight
Prep toolset Other
Width 2
