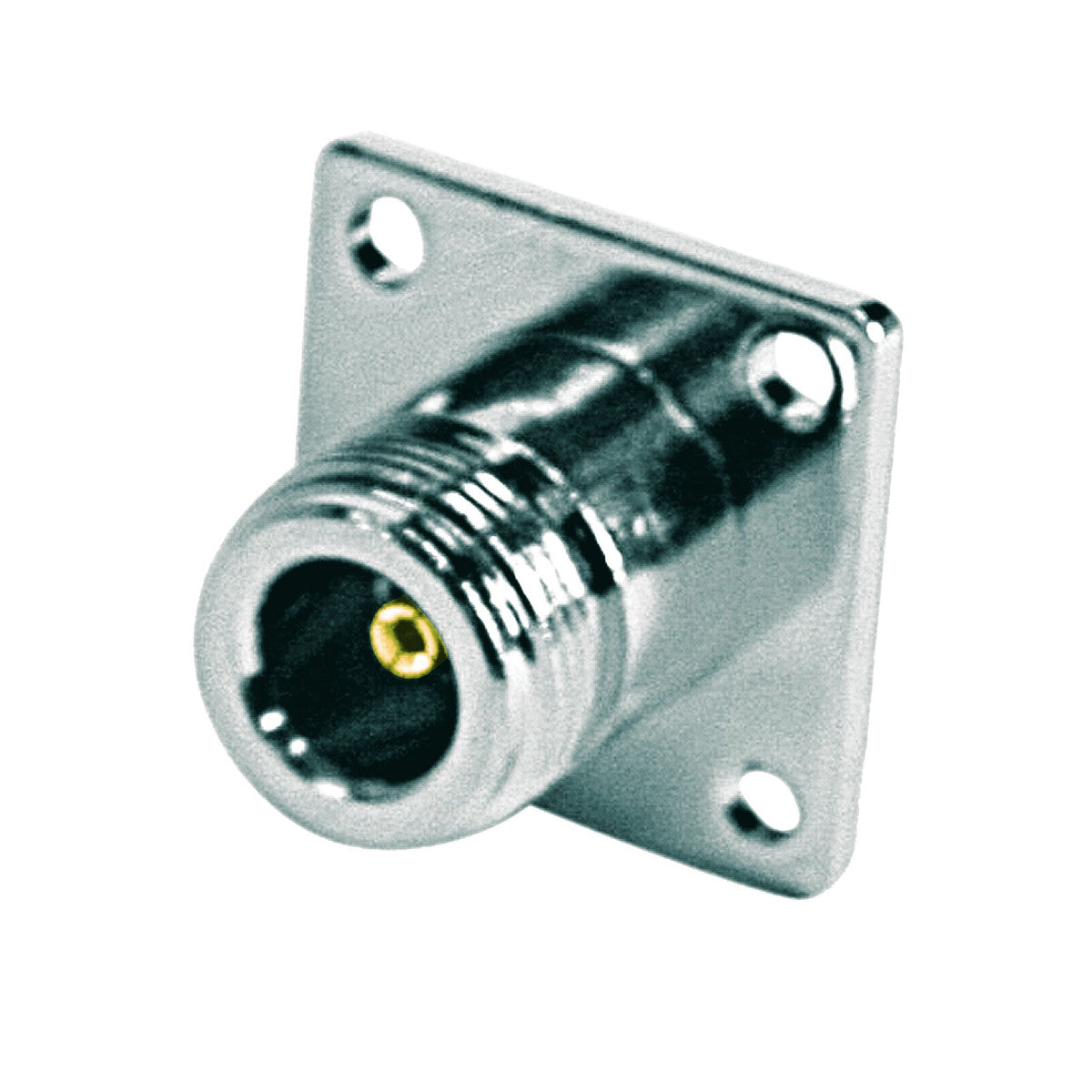

Pulse N-09 N-Female Connector, Solder Pot Square Flange

Pulse N-09 N-Female Connector, Solder Pot Square Flange

Available

Brand:
Item ID:
168018366
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
N-09
Send Request for Quote (RFQ)
The Pulse N-09 N-Female Connector is designed for high-performance RF applications, providing a reliable connection with a square flange mount.
Regular price $15.20
Regular price $0.00 Sale price $15.20
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse N-09 N-Female Connector is designed for high-performance RF applications, providing a reliable connection with a square flange mount. This connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • The connector features an N-Female interface with a solder pot.
  • It is designed for square flange mounting, providing a secure and stable installation.
  • The connector ensures optimal signal transmission with minimal loss.
  • The centre contact is soldered for a robust connection.
  • Mating is achieved with a 5/8" - 24 threaded coupling.
  • The connector has a durability rating of 500 matings.
  • The mounting hole diameter is Ø 3.2mm.
  • The temperature range is from -65° to 165°C.
  • The impedance is 50 ohms.
  • The maximum frequency is 11 GHz.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with a square flange mount.

In the Box:

  • 1 x N-09 N-Female Connector

Documents:

Pulse N-09 Connector - Product Overview Pulse N-09 Connector - Datasheet

Product Specifications

MPN N-09
Brands Pulse
Cable supported None - Solder Pot Terminal
Cable type connectors Solder Pot Terminal
Centre conductor Solder pot, Captive
Component type Connector
Connector N(F)
Connector end a N (F)
Height 2
Impedance ohm 50
Inner attachment Solder
Length 4
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Straight
Prep toolset Other
Width 2
