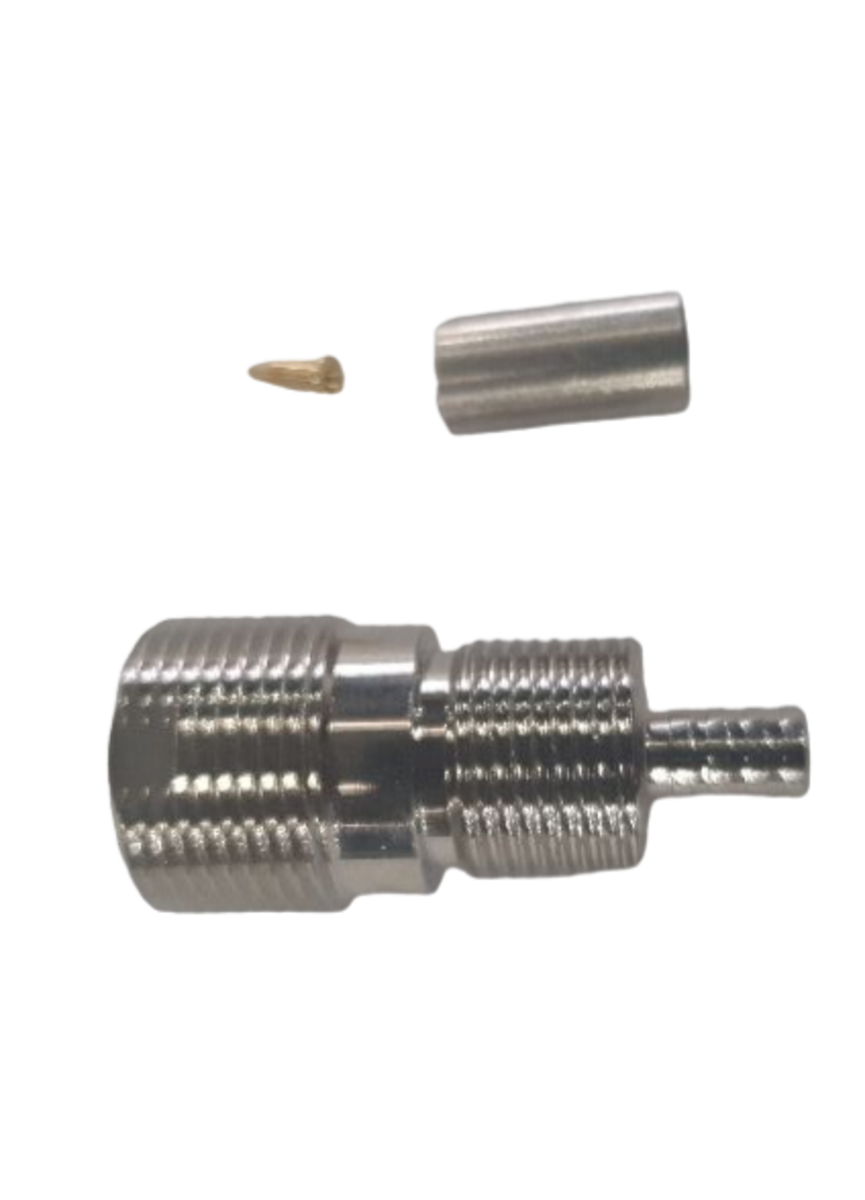

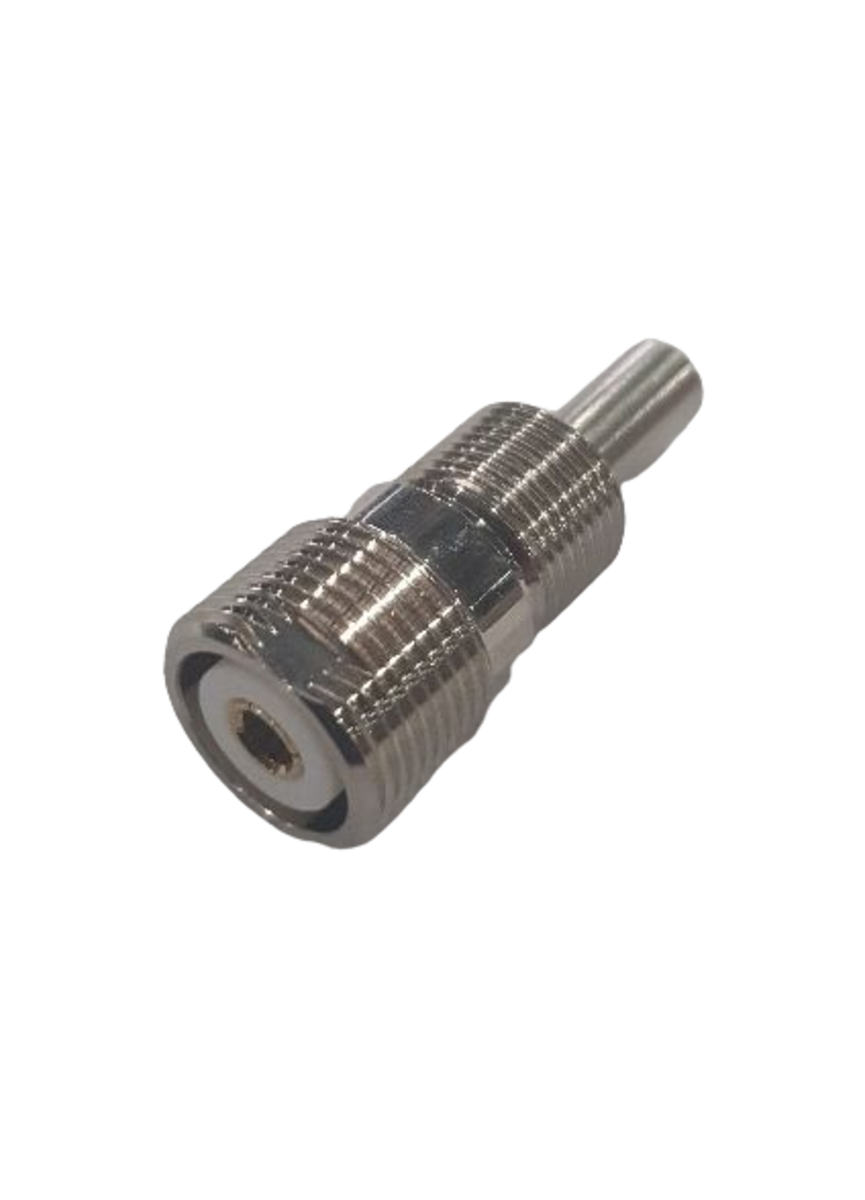

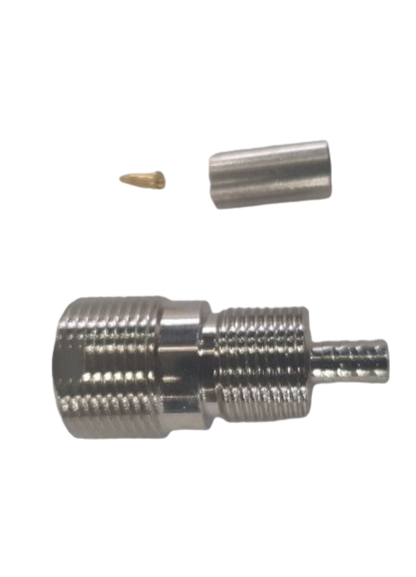

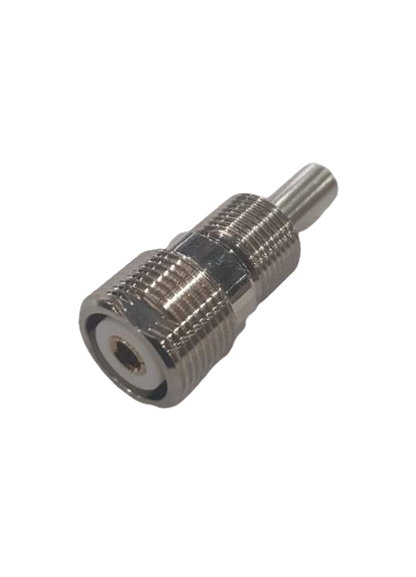

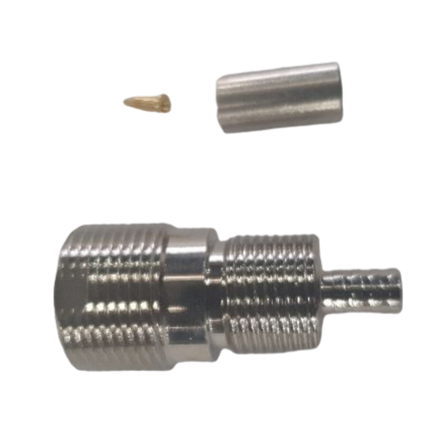

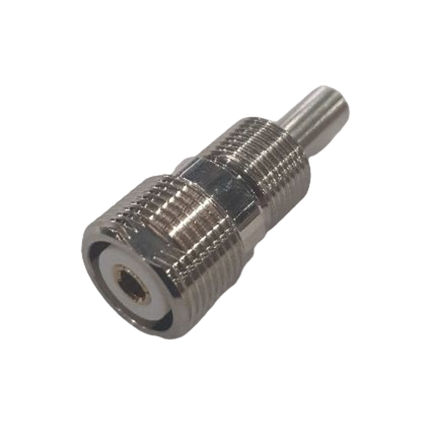

The Pulse N-100CDR N-Female Connector is designed for use with RG58, RG141, and RG303 cables and is compatible with CDR7100 and CDR8100 Series Spring Assemblies. Pulse is renowned for its high-quality RF coaxial connectors, offering a wide range of components for various applications.

Product Features:

• This connector is a Type-N straight female connector.
• It supports RG141/U, RG303/U, and RG58/U cables.
• The connector operates from 0 to 11000 MHz, making it suitable for a broad frequency range.
• It has an impedance of 50 ohms.
• The connector end is N (F) with a straight mounting angle.
• It features a crimp/crimp jack for RG58, RG141, and RG303 cables.
• The contact pin has a hex crimp size of 1.69 mm.
• The ferrule has a hex crimp size of 5.41 mm.
• The suggested crimp tool for this connector is the RCT-58S.

Application Areas:

• This connector is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The connector can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable connections with RG58 cables.

In the Box:

• 1 x N-100CDR N-Female Connector

Documents:

Pulse N(F) Connector for RG58 Cable - Datasheet
