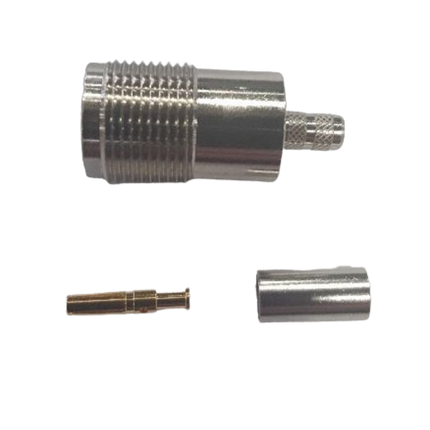

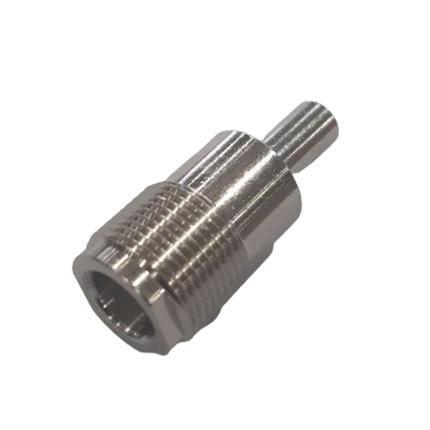

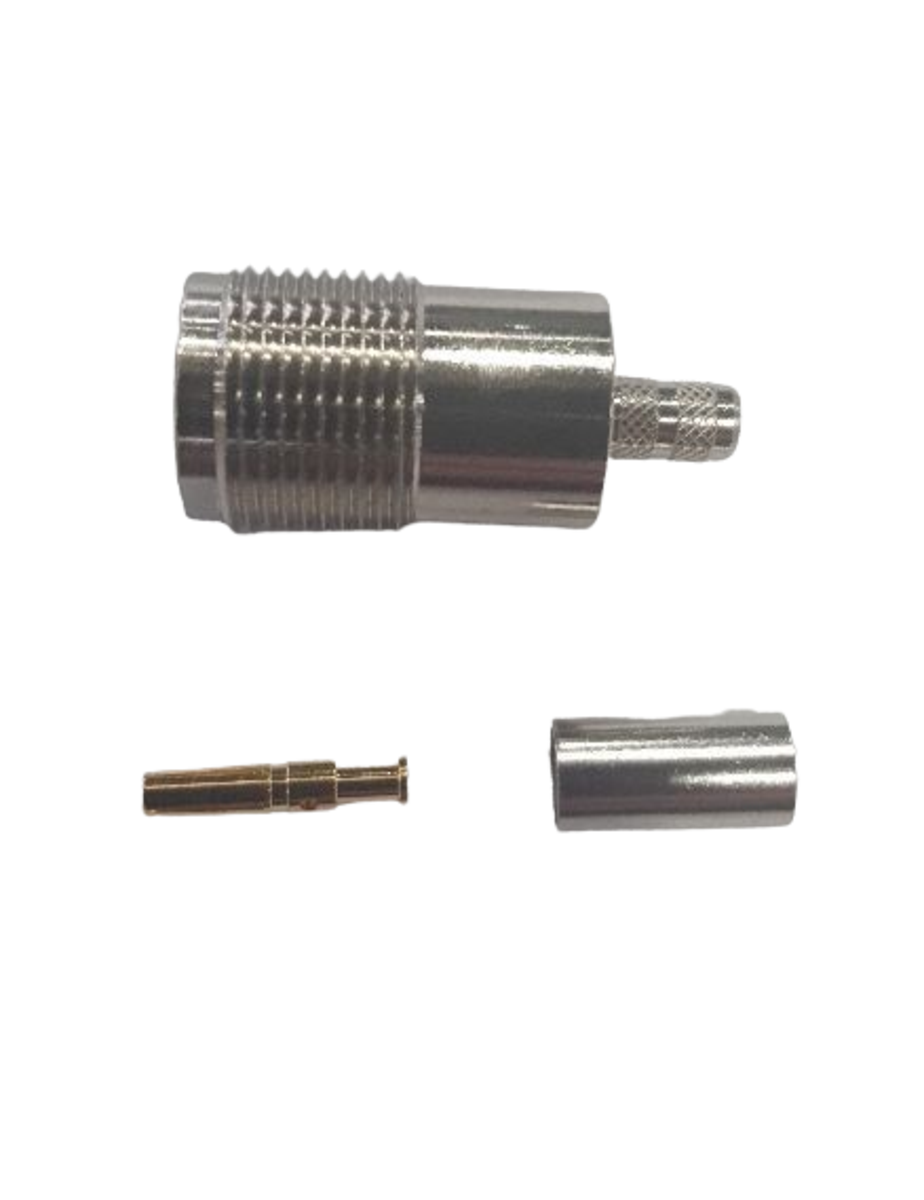

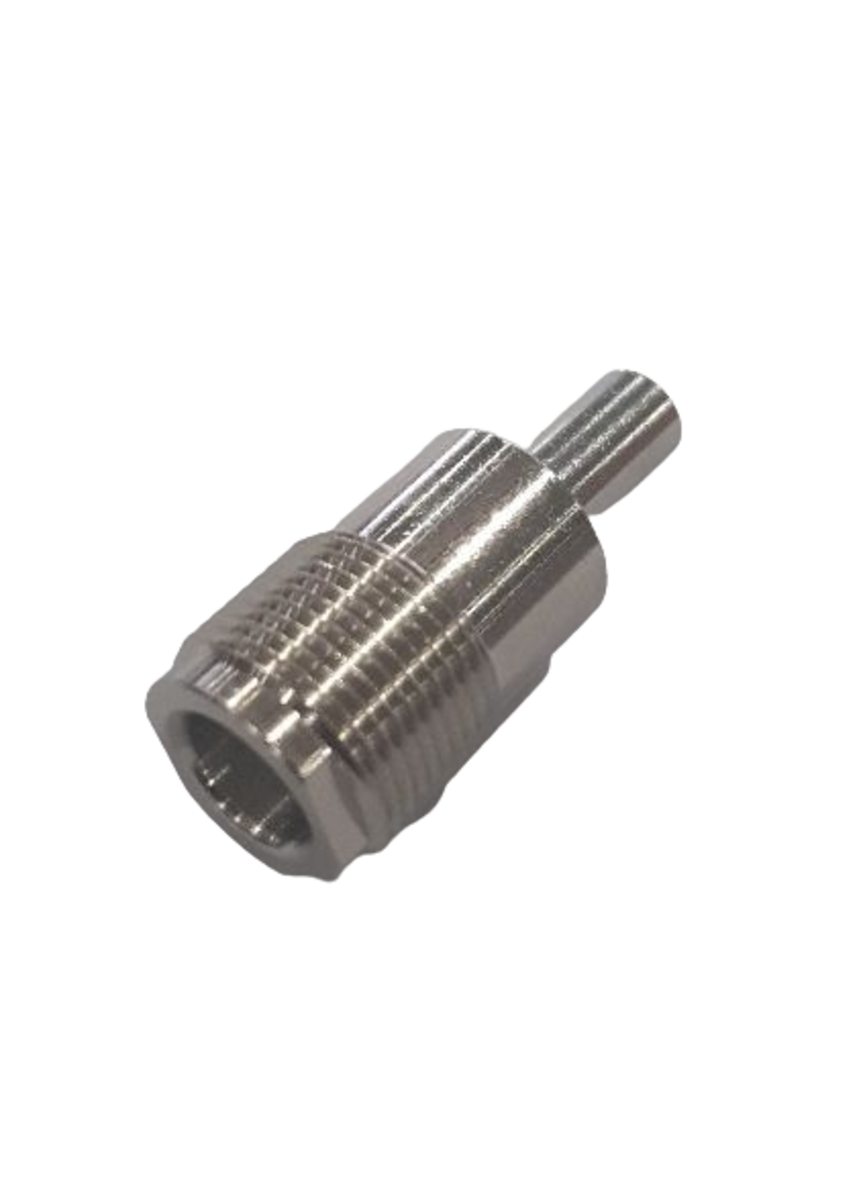

The Pulse N-100Q N-Female Connector is designed for use with CDQ Series Spring Assemblies, ensuring reliable and secure RF connections. Pulse® is renowned for its high-quality RF coaxial connectors, offering a wide range of components for various applications.

Product Features:

• This connector is a Type-N straight female connector.
• It features a crimp/crimp jack for RFI CDQ Series Spring Assemblies.
• The contact pin has a hex crimp size of 1.69 mm.
• The ferrule has a hex crimp size of 5.41 mm.
• The suggested crimp tool for this connector is the RCT-58S.
• It operates from 0 to 11000 MHz, making it suitable for a broad frequency range.
• The connector has an impedance of 50 ohms.
• The connector end is N (F) with a straight mounting angle.

Application Areas:

• This connector is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The connector can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable connections with CDQ Series Spring Assemblies.

In the Box:

• 1 x N-100Q N-Female Connector

Documents:

Pulse N-100Q N-Female Connector for CDQ Series Spring Assemblies - Datasheet
