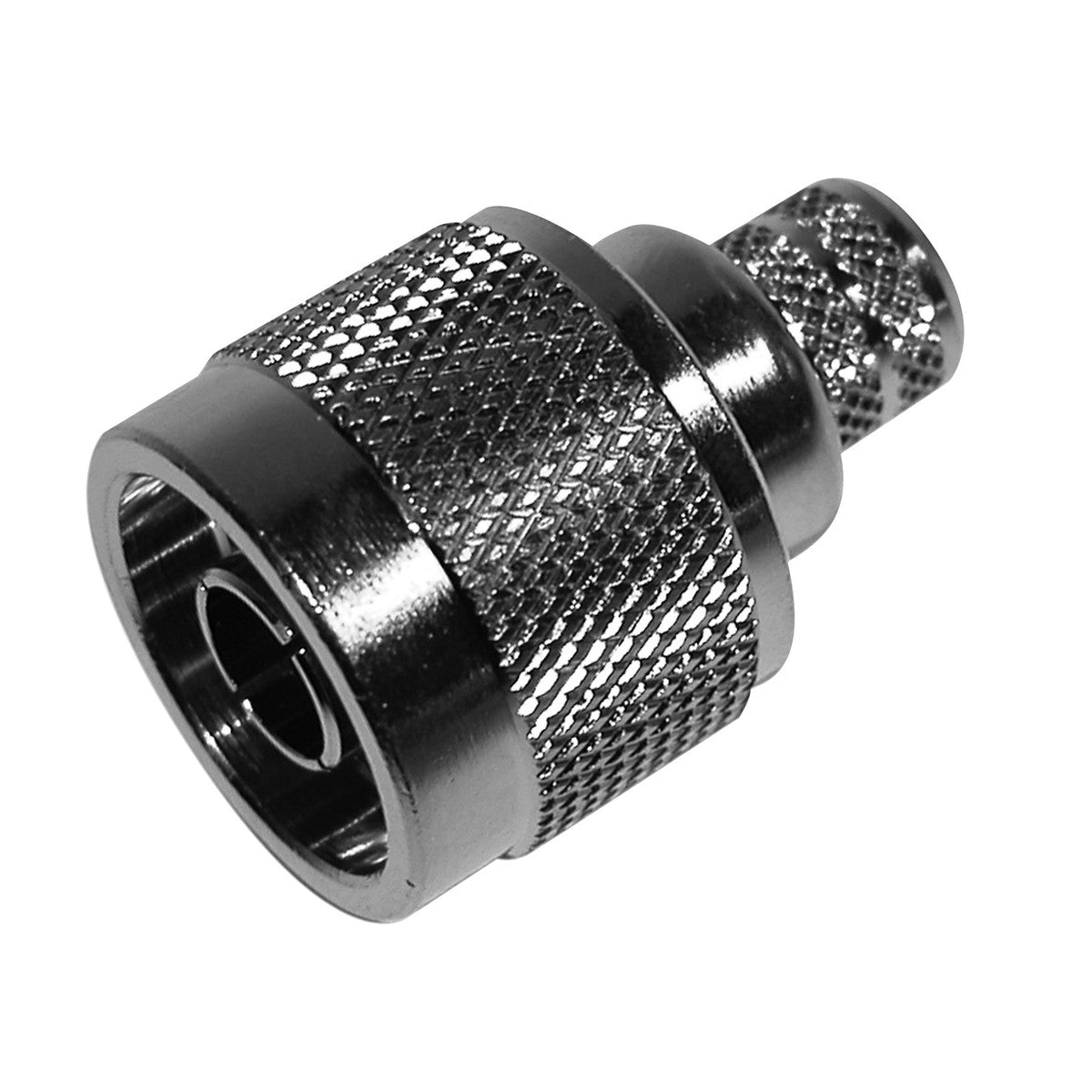

Pulse N-114 N-Male Connector, Crimp - RG213 Cable

Pulse N-114 N-Male Connector, Crimp - RG213 Cable

Available

Brand:
Item ID:
168018368
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
N-114
Send Request for Quote (RFQ)
The Pulse N-114 N-Male Connector is designed for high-performance RF applications, providing a reliable connection for RG213 cables.
Regular price $12.45
Regular price $0.00 Sale price $12.45
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse N-114 N-Male Connector is designed for high-performance RF applications, providing a reliable connection for RG213 cables. This straight connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • The connector features an N-Male interface for RG213 cables.
  • It is designed for crimping, providing a secure and stable installation.
  • The connector ensures optimal signal transmission with minimal loss.
  • The inner attachment is crimped for a robust connection.
  • The centre conductor is captive and crimped.
  • The connector supports a frequency range from 0 to 11000 MHz.
  • The impedance is 50 ohms.
  • The mounting angle is straight for easy installation.
  • Prep Toolset: RCT-213.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG213 cables.

In the Box:

  • 1 x Pulse N-114 N-Male Connector

Documents:

Pulse N-114 Connector - Datasheet Pulse N-114 Connector - Installation Guide

Product Specifications

MPN N-114
Brands Pulse
Cable supported RG213/U
Cable type RG213
Cable type connectors RG213
Centre conductor Captive, Crimp
Component type Connector
Connector N(M)
Connector end a N (M)
Crimp set or tool C
Height 2
Impedance ohm 50
Inner attachment Crimp
Length 4
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Straight
Prep toolset RCT-213
Width 2
