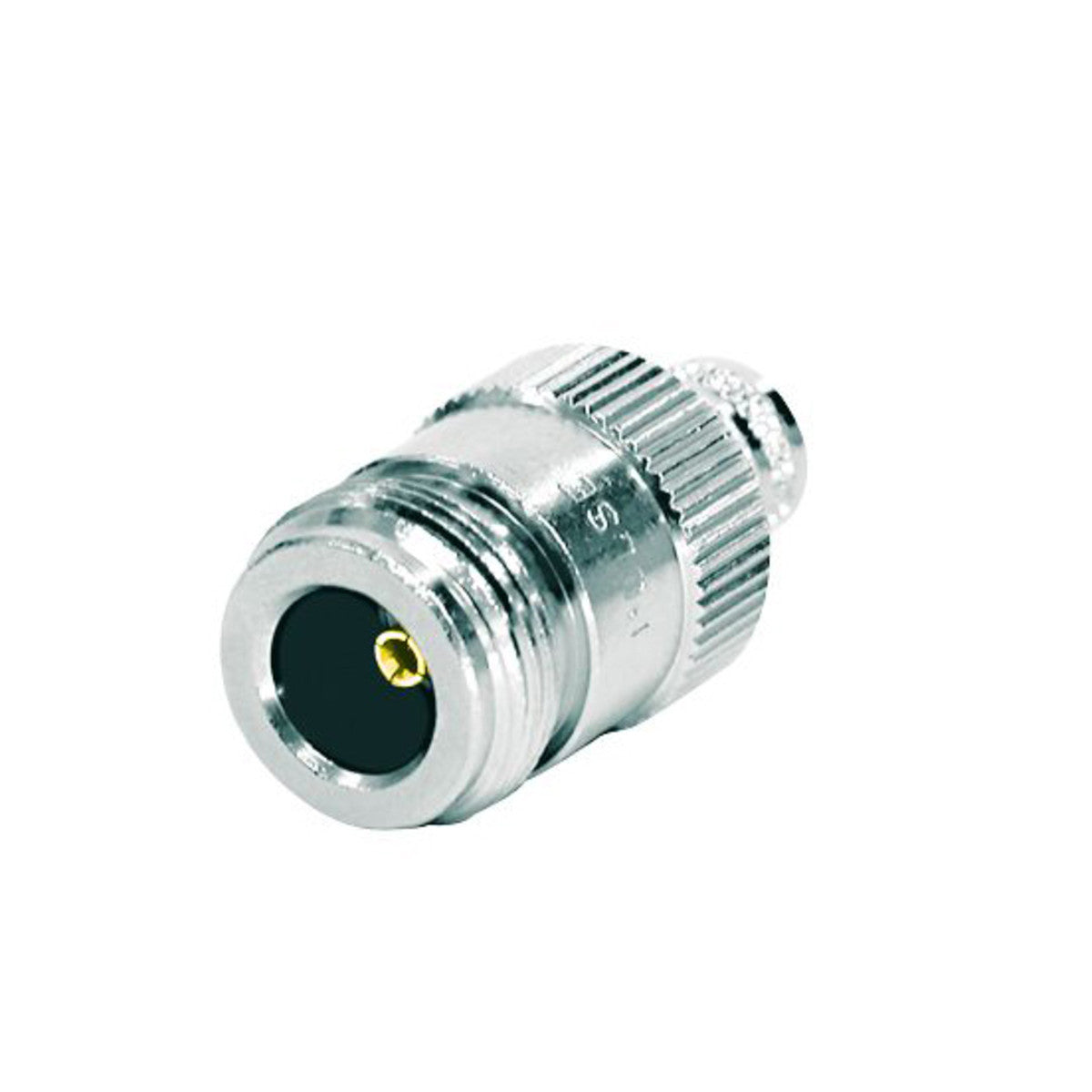

Pulse N-118 is an Type-N Female crimp connector featuring the standard 50 Ohm interface dimensions. This connector is suitable for RG213 cables. This straight connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

• The connector features an N-Female interface for RG213 cables.
• It is designed for crimping, providing a secure and stable installation.
• The connector ensures optimal signal transmission with minimal loss.
• The inner attachment is crimped for a robust connection.
• The connector supports a frequency range from 0 to 11000 MHz.
• The impedance is 50 ohms.
• The mounting angle is straight for easy installation.
• Prep Toolset: RCT-213.

Application Areas:

• This connector is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The connector can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable connections with RG213 cables.

In the Box:

• 1 x N-118 N-Female Connector

Documents:

Pulse N-118 Connector - Datasheet Pulse N-118 Connector - Installation Guide
