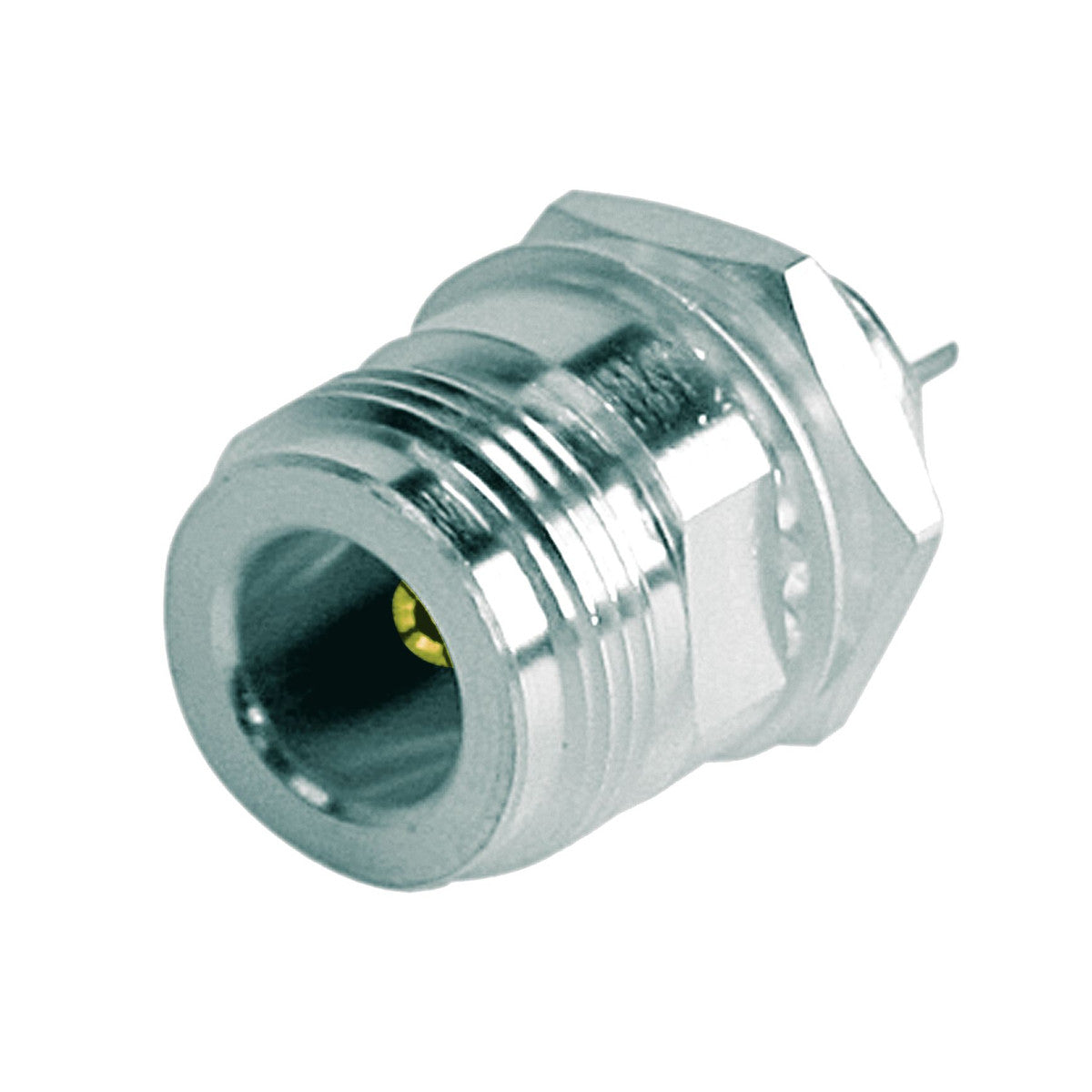

The Pulse N-20 N-Female Connector is a high-performance bulkhead connector designed for versatile RF applications. This connector features a solder attachment, ensuring secure and stable connections for a wide range of RF systems.

Product Features:

• The connector features an N-Female interface.
• It is designed for bulkhead mounting, providing a secure and stable installation.
• The inner attachment is soldered for a robust connection.
• The centre conductor is captive with a solder pot.
• The connector supports a frequency range from 0 to 11000 MHz.
• The impedance is 50 ohms.
• The mounting angle is straight for easy installation.

Application Areas:

• This connector is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The connector can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable bulkhead connections.

In the Box:

• 1 x N-20 N-Female Connector, Solder, Bulkhead.

Documents:

Pulse N-20 Connector - Datasheet
