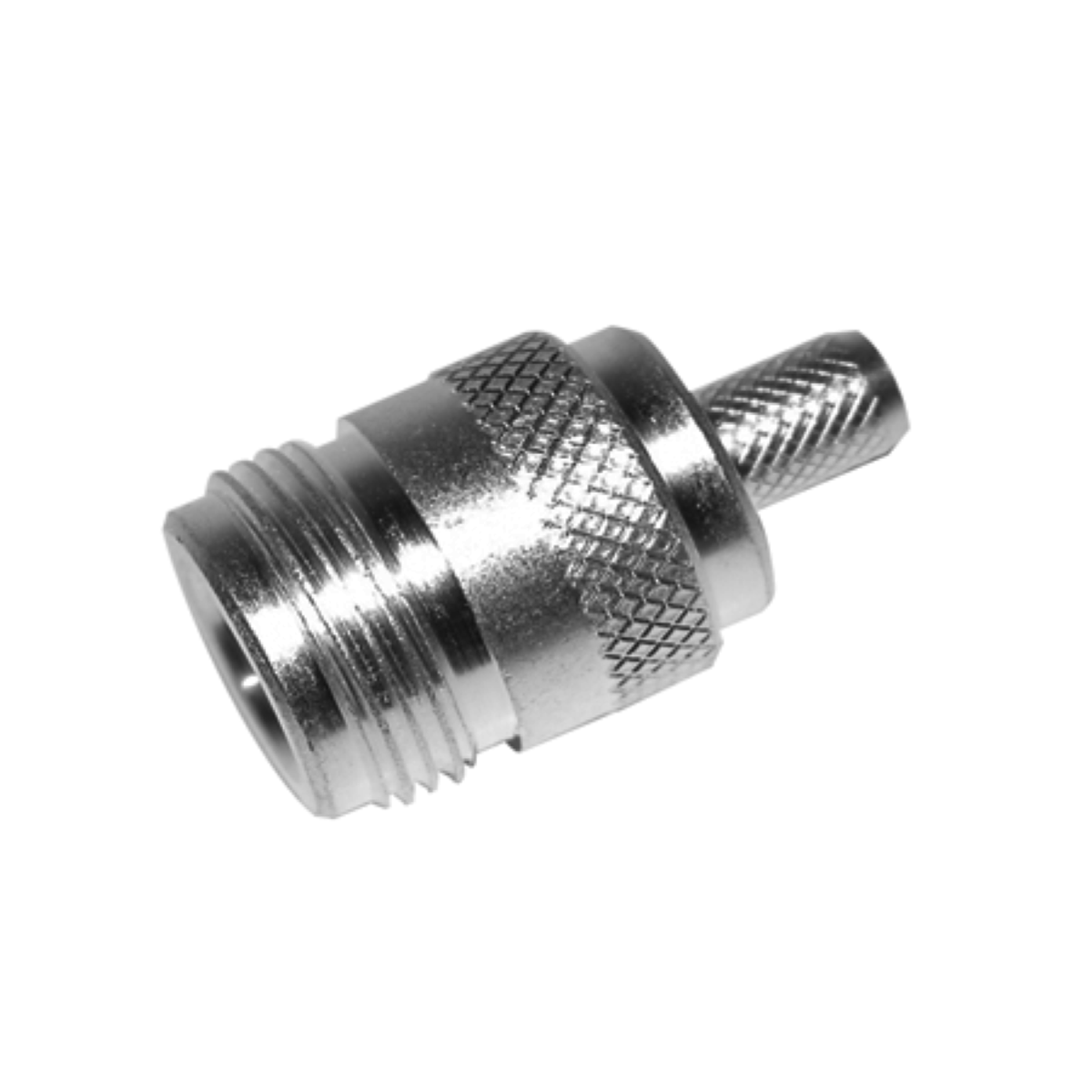

The Pulse N-210 N-Female Connector is a high-performance connector designed for use with RG59 cables. This connector features a crimp design, ensuring secure and stable connections for a wide range of RF applications.

Product Features:

• The connector features an N-Female interface for RG59 cables.
• It is designed for crimping, providing a secure and stable installation.
• The centre contact is crimped for a robust connection.
• The outer contact is crimped for ease of installation.
• Mating is achieved with a 5/8" - 24 threaded coupling.
• The connector has a durability rating of 500 matings.
• The coupling nut has a retention capacity of up to 100 lbs max.
• The cable retention is 40 lbs min.
• The temperature range is from -65° to 165°C.
• The impedance is 50 ohms.
• The maximum frequency is 1.5 GHz.

Application Areas:

• This connector is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The connector can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable connections with RG59 cables.

In the Box:

• 1 x N-210 N-Female Connector, Crimp - RG59 Cable.

Documents:

Pulse N-210 Connector - Datasheet
