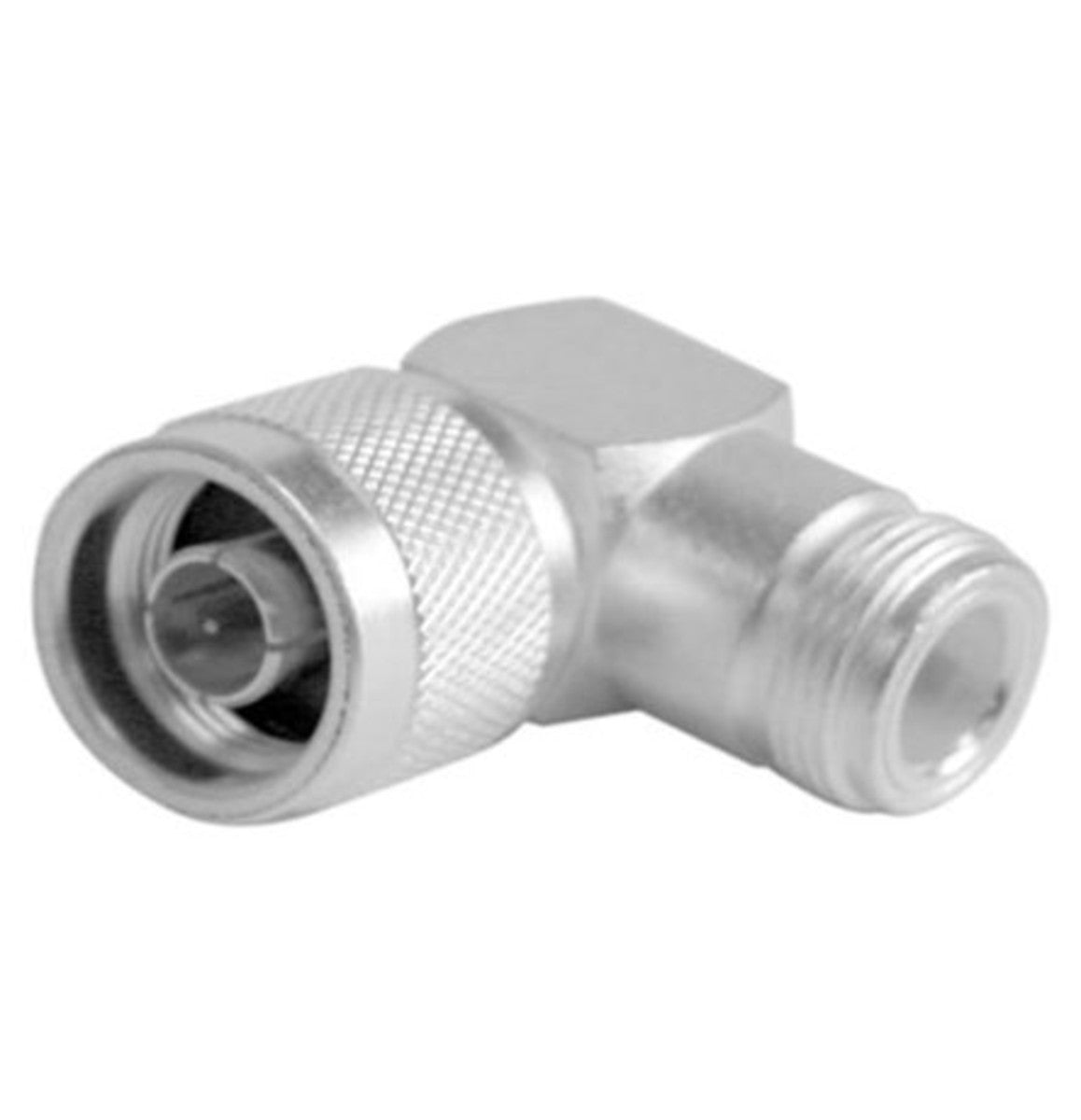

The Pulse N-246 N-Male to Right Angle N-Female Adaptor is designed for high-frequency RF applications, providing a reliable connection between N-Male and N-Female interfaces. This right-angle adaptor ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.
Product Features:
- This adaptor operates over a wide frequency range from 0 MHz to 11000 MHz.
- It has an impedance of 50 ohms, ensuring compatibility with standard RF systems.
- The connector ends are N-Male and N-Female, providing a secure and stable connection.
- The mounting angle is right, facilitating easy installation in tight spaces.
- This component is classified as a within-series adapter, making it versatile for various applications.
Application Areas:
- This adaptor is ideal for use in RF communication systems.
- It is suitable for broadcast, telecom, and networking applications.
- The adaptor can be used in instrumentation and testing environments.
- It is perfect for applications requiring secure and stable connections between N-Male and N-Female interfaces.
In the Box:
- 1 x N-246 N-Male to Right Angle N-Female Adaptor.
Please note that when specifying adaptors the specification of the lower frequency series connector over rides that of the higher frequency connector. eg; N Male – SMA Male, the N-type is used as the reference for the specification.
Documents:
Pulse N-246 Adaptor - Datasheet
