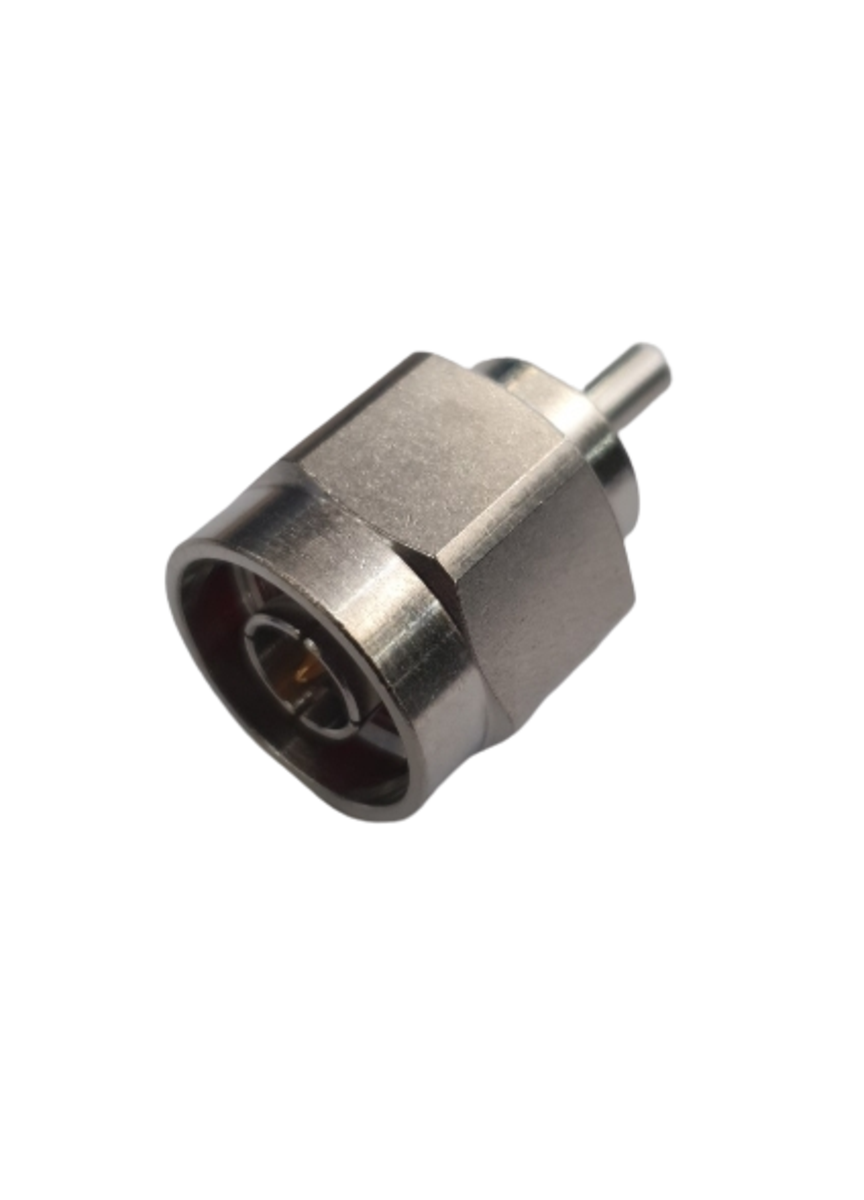

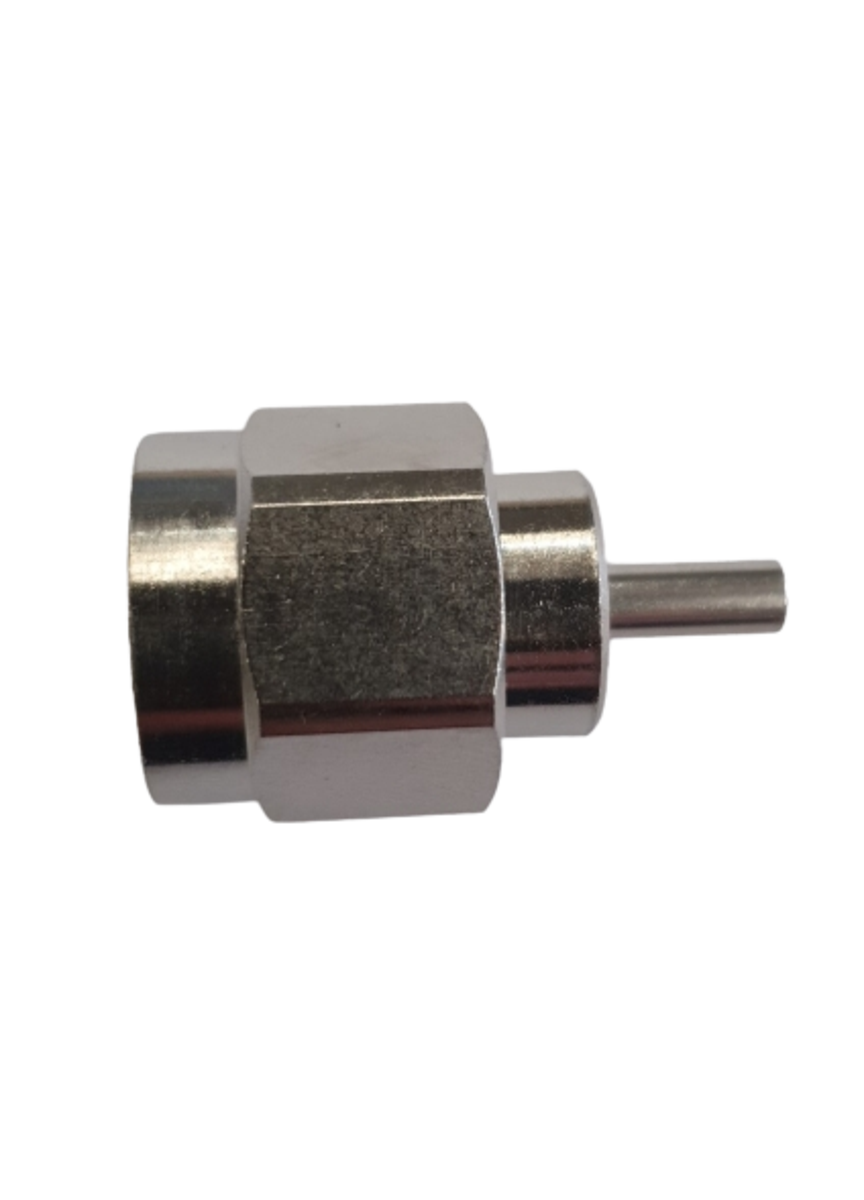

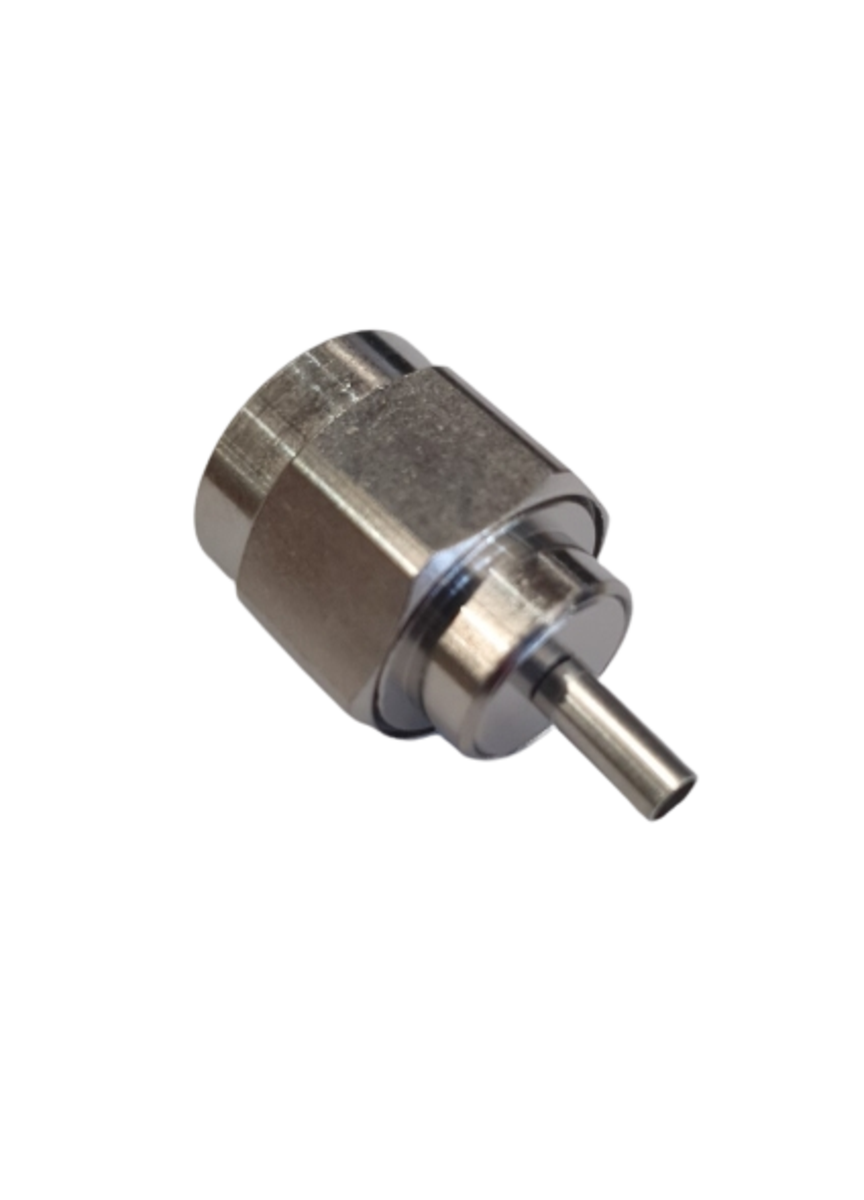

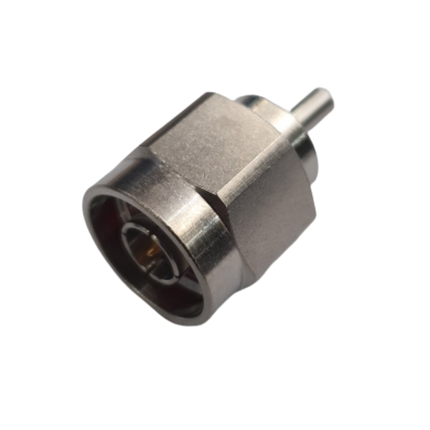

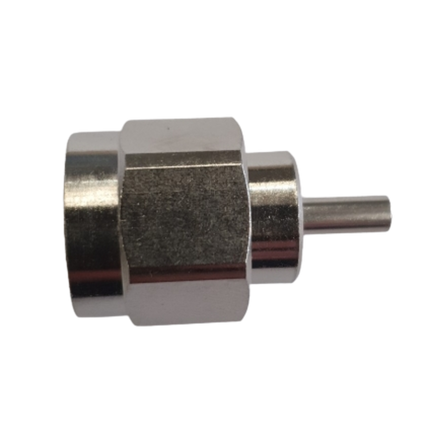

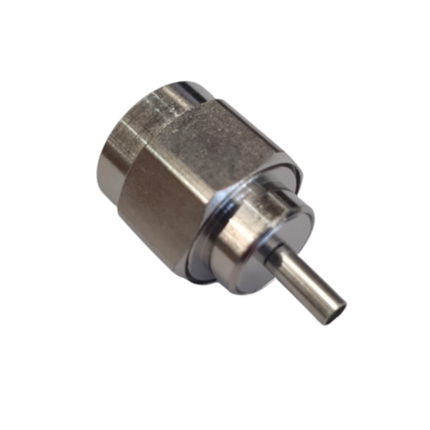

Pulse N-252 N-Male Connector, Crimp - RG174, RG188 and RG316 Cables

Pulse N-252 N-Male Connector, Crimp - RG174, RG188 and RG316 Cables

Sold out

Brand:
Item ID:
168018255
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
N-252
Send Request for Quote (RFQ) Discount Offers
The Pulse N-252 N-Male Connector is designed for high-performance RF connections. It features a crimp/crimp plug for RG174, RG188, and RG316 cables.
Regular price $17.25
Regular price $0.00 Sale price $17.25
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse N-252 N-Male Connector is designed for high-performance RF connections, suitable for a wide variety of applications. Known for its low PIM and low loss, the N-Type connector is the industry standard in many facets of wireless communications.

Product Features:

  • This connector is a Type-N straight male connector.
  • It features a crimp/crimp plug for RG174, RG188, and RG316 cables.
  • The connector has a hex for wrench tightening.
  • The contact pin has a hex crimp size of 0.72 mm.
  • The ferrule has a hex crimp size of 3.25 mm.
  • The suggested crimp tool for this connector is the RCT-174.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG174, RG188, and RG316 cables.

In the Box:

  • 1 x N-252 N-Male Connector

Documents:

Pulse N-252 N-Male Connector - Datasheet

Product Specifications

MPN N-252
Brands Pulse
Cable supported RG316/U, RG174, RG188A
Cable type RG174, RG316
Component type Connector
Connector N(M)
Connector end a N (M)
Height 2
Impedance ohm 50
Inner attachment Crimp
Length 4
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Straight
Prep toolset RCT-174
Width 2
