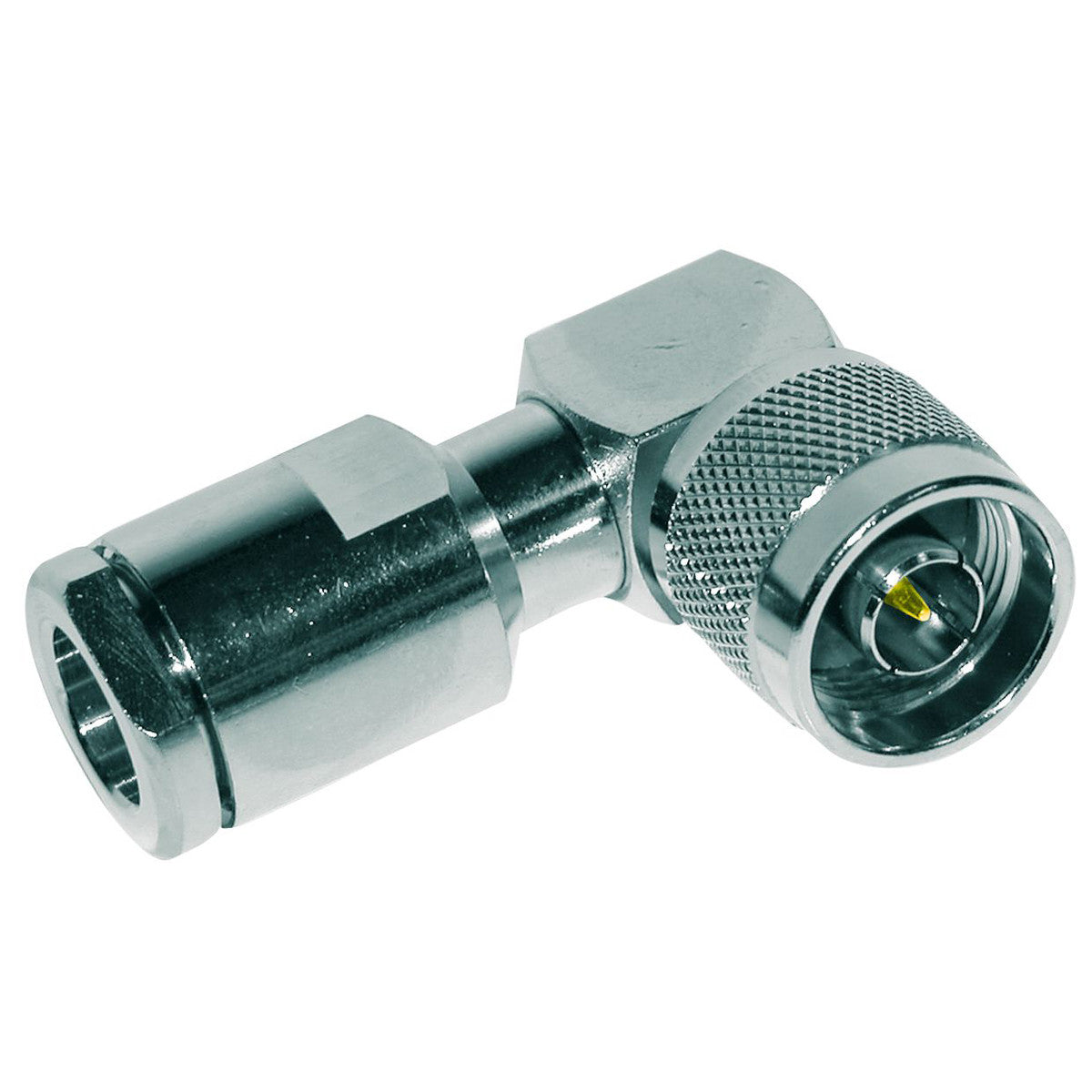

The Pulse N-258 Right Angle N-Male Connector is designed for high-frequency RF applications, providing a reliable connection for RG213 and RG214 cables. This right-angle connector ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

Product Features:

• This connector operates over a wide frequency range from 0 MHz to 11000 MHz.
• It has an impedance of 50 ohms, ensuring compatibility with standard RF systems.
• The inner attachment method is solder, providing a secure and stable connection.
• The connector end is N-Male, suitable for various RF applications.
• The mounting angle is right, facilitating easy installation in tight spaces.
• The centre conductor is captive and soldered, ensuring reliable performance.
• This connector supports RG213/U and RG214/U cables.
• It is compatible with RG174 and RG316 cable types.
• The prep toolset required is classified as "Other."

Application Areas:

• This connector is ideal for use in RF communication systems.
• It is suitable for broadcast, telecom, and networking applications.
• The connector can be used in instrumentation and testing environments.
• It is perfect for applications requiring secure and stable connections for RG213 and RG214 cables.

In the Box:

• 1 x N-258 Right Angle N-Male Connector

Documents:

Pulse N-258 Connector - Datasheet
