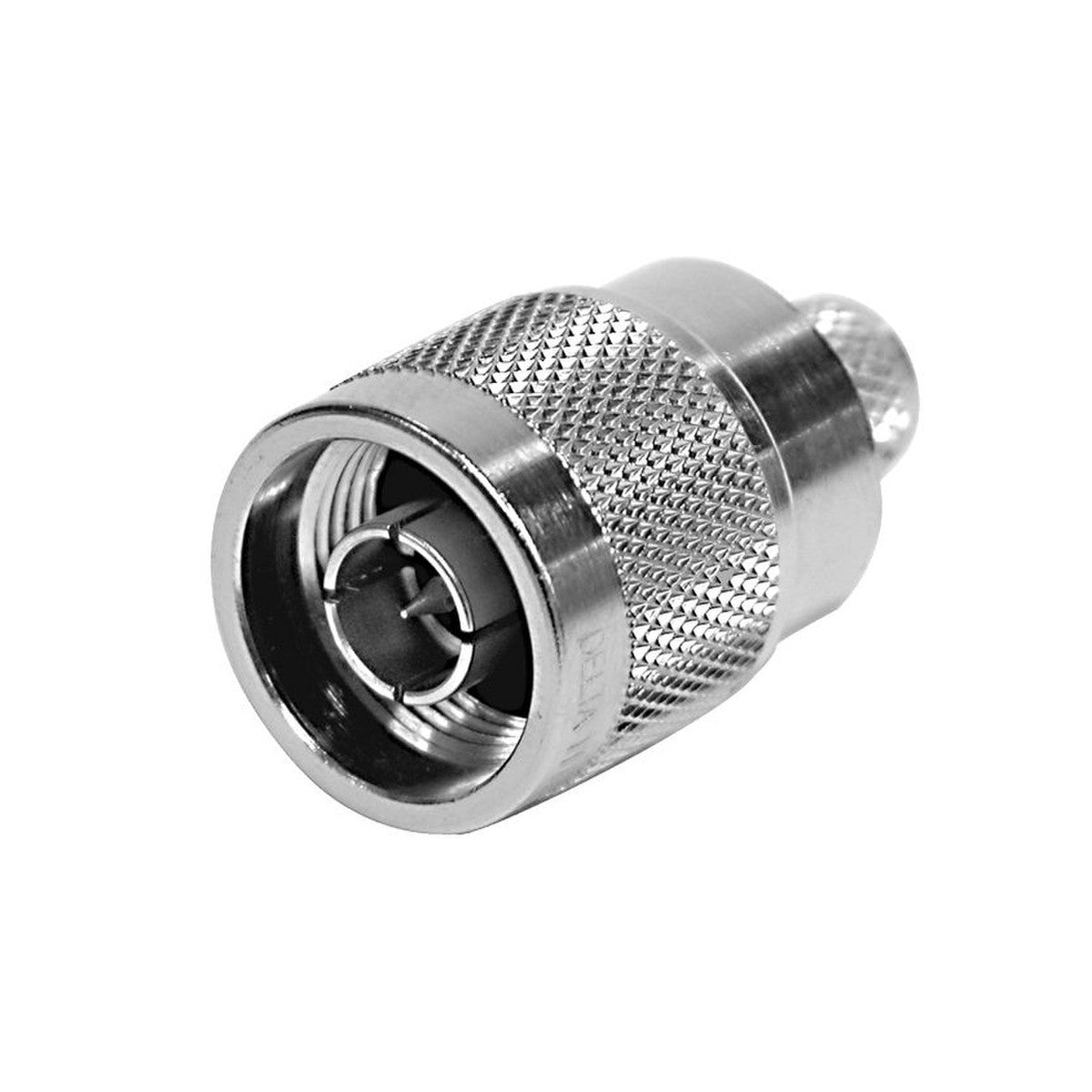

Pulse N-284-P N-Male Connector, Crimp, Knurled Body - RG214 Cable

    Pulse N-284-P N-Male Connector, Crimp, Knurled Body - RG214 Cable

      Product form
      Brand:
      Item ID:
      168018250
      MPN:
      N-284-P
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The Pulse N-284-P N-Male Connector is designed for use with RG214 cables, providing a high-performance connection with low PIM and low loss.

      Available

      $16.76

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse N-284-P N-Male Connector is designed for use with RG214 cables, providing a high-performance connection with low PIM and low loss. Pulse is renowned for its high-quality RF coaxial connectors, offering a wide range of components for various applications.

        Product Features:

        • This connector is a Type-N straight male connector.
        • It features a crimp/crimp plug for RG214 cables.
        • The connector has a knurled body for easy finger tightening.
        • The contact pin has a hex crimp size of 2.54 mm.
        • The ferrule has a hex crimp size of 10.9 mm.
        • The suggested crimp tool for this connector is the RCT-214.

        Application Areas:

        • This connector is ideal for use in RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable connections with RG214 cables.

        In the Box:

        • 1 x N-284-P N-Male Connector,

        Documents:

        Pulse N-284-P Connector - Datasheet

        Product Specifications

        Brand Pulse
        Length 4
        Width 2
        Height 2
        Cable Supported RG214/U
        Cable Type RG214
        Cable Type Connectors RG214
        Centre Conductor Captive, Crimp
        Component Type Connector
        Connector N(M)
        Connector End A N (M)
        Crimp Set or Tool D
        Impedance [Ω] 50
        Inner Attachment Crimp
        Max Frequency (MHz) 11000
        Min Frequency (MHz) 0
        Mounting Angle Straight
        Prep Toolset RCT-214
