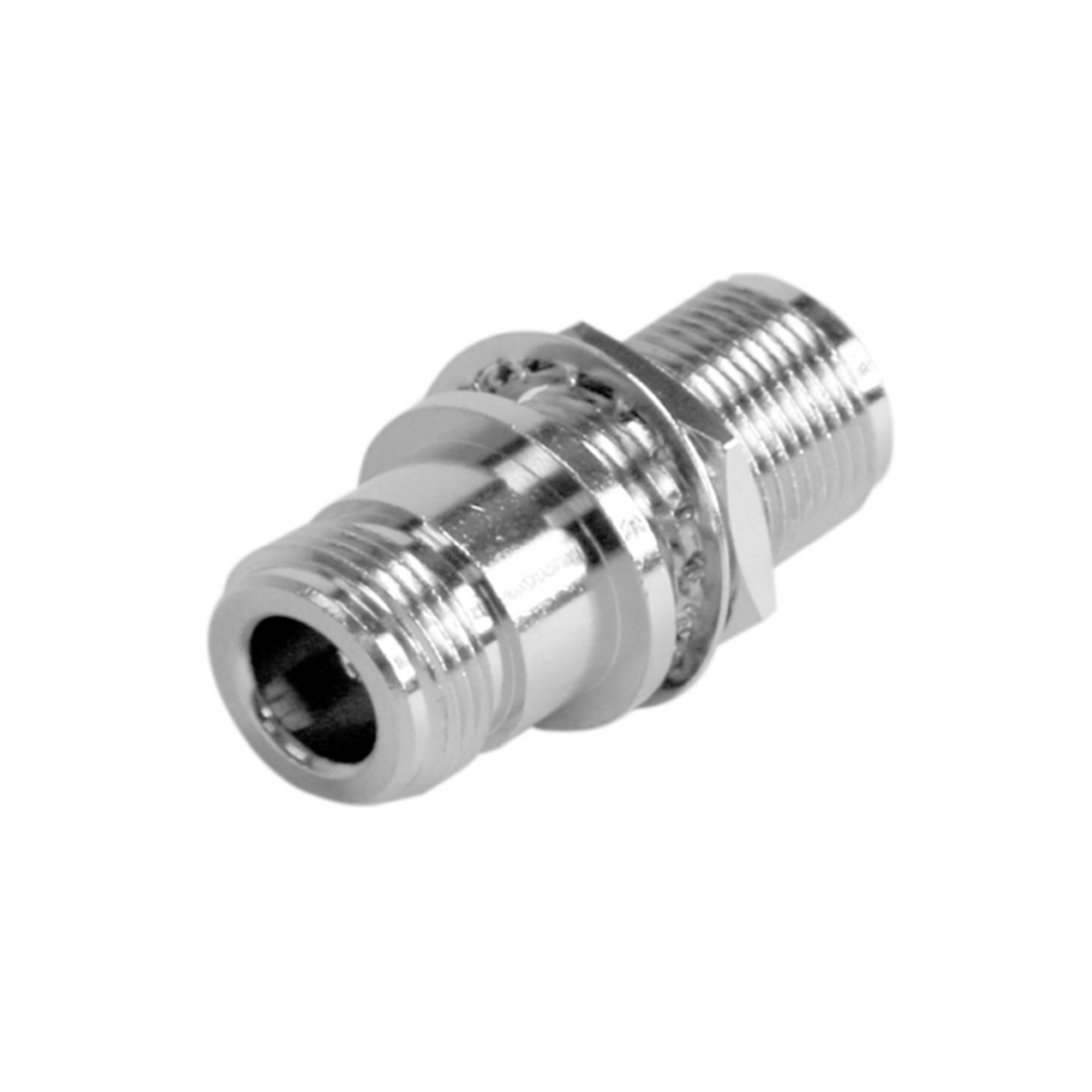

Pulse N-46 N-Female to N-Female Adaptor, Bulkhead

Pulse N-46 N-Female to N-Female Adaptor, Bulkhead

Available

Brand:
Item ID:
168018390
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
N-C371N-C76
Send Request for Quote (RFQ) Discount Offers
The Pulse N-46 N-Female to N-Female Adaptor is designed for versatile RF applications, providing a reliable connection between two N-Female interfaces. This bulkhead adaptor ensures secure and stable connections, making it suitable for a wide range of RF systems.
Regular price $13.80
Regular price $0.00 Sale price $13.80
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse N-46 N-Female to N-Female Adaptor is designed for versatile RF applications, providing a reliable connection between two N-Female interfaces. This bulkhead adaptor ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This adaptor features N-Female to N-Female connectors.
  • It is designed for bulkhead mounting, providing a secure and stable installation.
  • The adaptor ensures optimal signal transmission with minimal loss.

Application Areas:

  • This adaptor is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The adaptor can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections between N-Female interfaces.

In the Box:

  • 1 x N-46 N-Female to N-Female Adaptor, Bulkhead.
Please note that when specifying adaptors the specification of the lower frequency series connector over rides that of the higher frequency connector. eg; N Male – SMA Male, the N-type is used as the reference for the specification.

Documents:

Pulse N-46 Adaptor - Datasheet

Product Specifications

MPN N-C371N-C76
Brands Pulse
Centre contact Brass
Component type Within Series Adapter
Connector N(F)
Connector end a N (F)
Connector end b N (F)
Durability 500 matings
Height 2
Impedance ohm 50
Length 4
Mating 5/8" - 24 threaded coupling
Max frequency 11 GHz
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Straight
Salt spray MIL-STD-101 Test Cond B
Temperature range -65?to 165?C
Thermal shock MIL-STD-107 Test Cond B
Vibration MIL-STD-202 Test Cond B
Width 2
