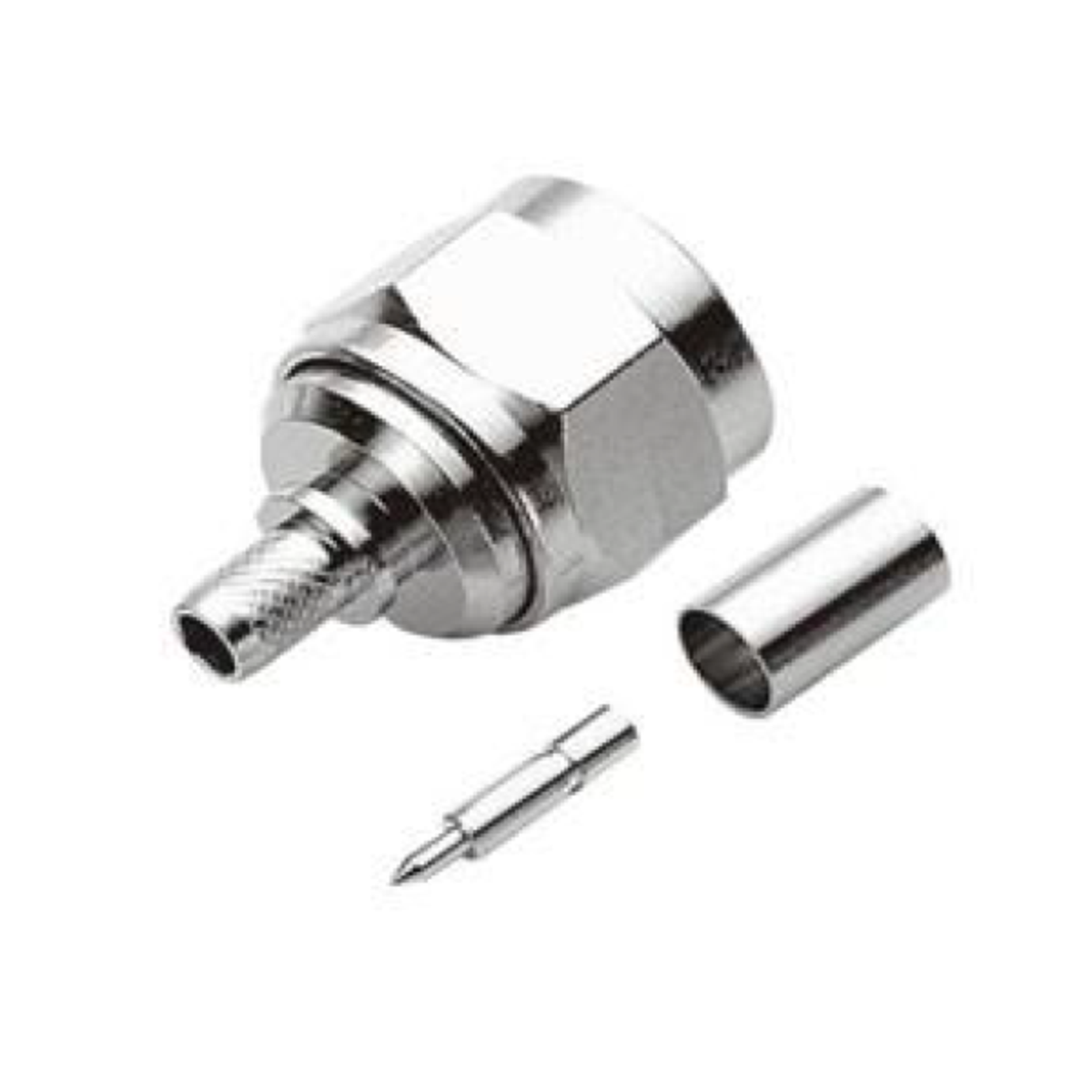

Pulse N-87H N-Male Connector, RG142A, RG223, RG400 and RG55 Cables

Pulse N-87H N-Male Connector, RG142A, RG223, RG400 and RG55 Cables

Available

Brand:
Item ID:
168018393
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
N-87H
Send Request for Quote (RFQ)
The Pulse N-87H N-Male Connector is designed for high-frequency RF applications, providing a reliable connection for RG142A, RG223, RG400, and RG55 cables.
Regular price $14.60
Regular price $0.00 Sale price $14.60
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse N-87H N-Male Connector is designed for high-frequency RF applications, providing a reliable connection for RG142A, RG223, RG400, and RG55 cables. This connector ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

Product Features:

  • This connector is a crimp/crimp plug for RG142A, RG223, RG400 and RG55 Cables.
  • It features a hex for wrench tightening, ensuring a secure and stable connection.
  • The contact pin hex crimp size is 1.69.
  • The ferrule hex crimp size is 5.41.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections for RG142A, RG223, RG400, and RG55 cables.

In the Box:

  • 1 x N-87H N-Male Connector

Documents:

Pulse N-87H Connector - Datasheet

Product Specifications

MPN N-87H
Brands Pulse
Cable supported RG223/U, RG55/U, RG400/U, RG142A/U
Cable type RG142, RG223
Cable type connectors RG142
Centre conductor Captive, Crimp
Component type Connector
Connector N(M)
Connector end a N (M)
Crimp set or tool A
Height 2
Impedance ohm 50
Inner attachment Other
Length 4
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Straight
Prep toolset RCT-58S
Width 2
