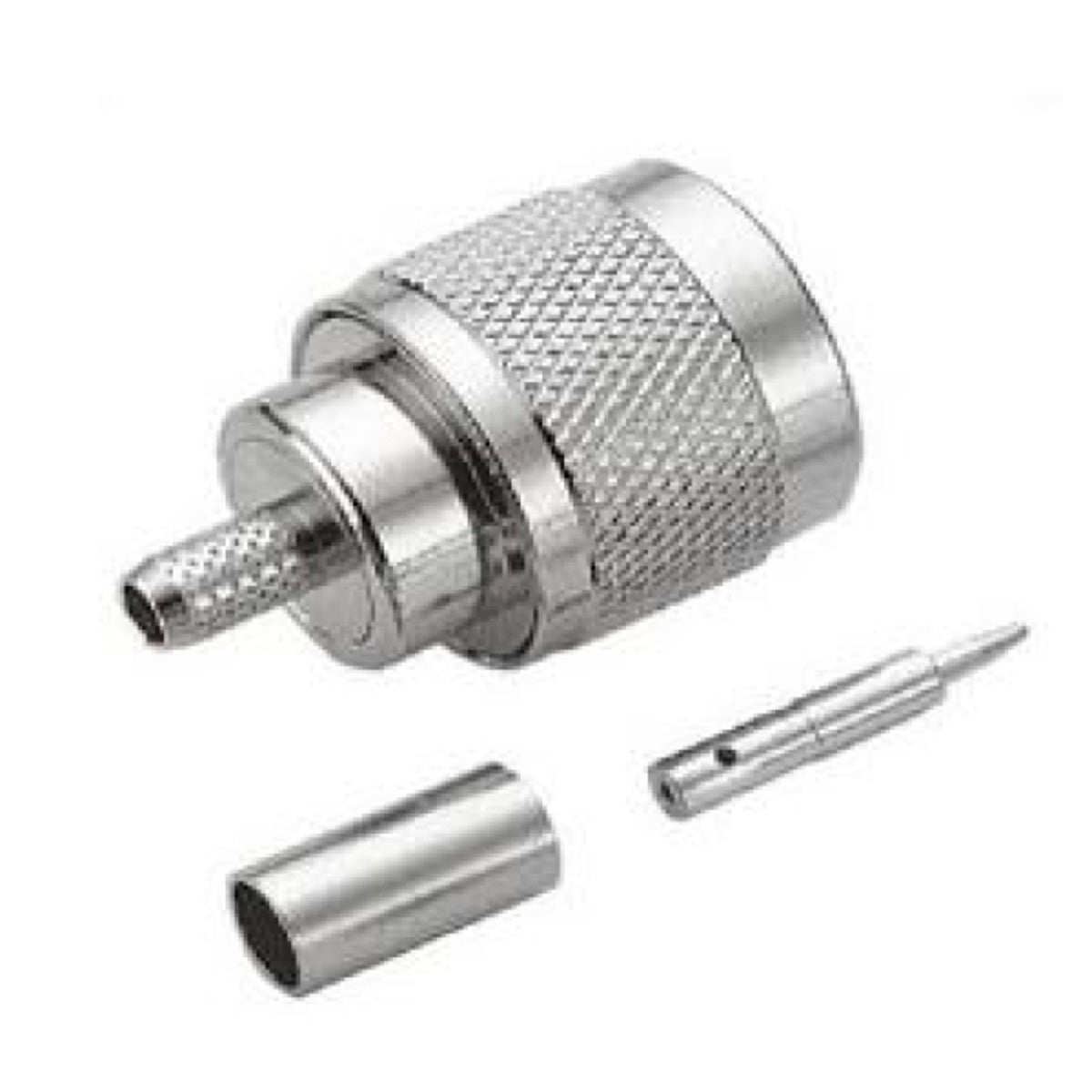

Pulse N-88 N-Male Connector, Crimp, Nickel - RG141, RG303 and RG58 Cables

Pulse N-88 N-Male Connector, Crimp, Nickel - RG141, RG303 and RG58 Cables

Available

Brand:
Item ID:
168018394
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
N-88
Send Request for Quote (RFQ)
The Pulse N-88 N-Male Connector is designed for high-frequency RF applications, providing a reliable connection for RG141, RG303, and RG58 cables.
Regular price $9.65
Regular price $0.00 Sale price $9.65
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse N-88 N-Male Connector is designed for high-frequency RF applications, providing a reliable connection for RG141, RG303, and RG58 cables. This connector ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

Product Features:

  • This connector is a crimp/crimp plug for RG58, RG141, and RG303 cables.
  • It features a knurled design for finger tightening, ensuring a secure and stable connection.
  • The connector is nickel-plated, providing durability and corrosion resistance.
  • The contact pin hex crimp size is 1.69.
  • The ferrule hex crimp size is 5.41.
  • Suggested crimp tool: RCT-58S.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections for RG141, RG303, and RG58 cables.

In the Box:

  • 1 x N-88 N-Male Connector, Crimp, Nickel

Documents:

Pulse N-88 Connector - Datasheet

Product Specifications

MPN N-88
Brands Pulse
Cable supported RG58/U, RG141/U, RG303/U
Cable type RG58
Cable type connectors RG58
Centre conductor Captive, Crimp
Component type Connector
Connector N(M)
Connector end a N (M)
Crimp set or tool A
Height 2
Impedance ohm 50
Inner attachment Crimp
Length 4
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Straight
Prep toolset RCT-58S
Width 2
