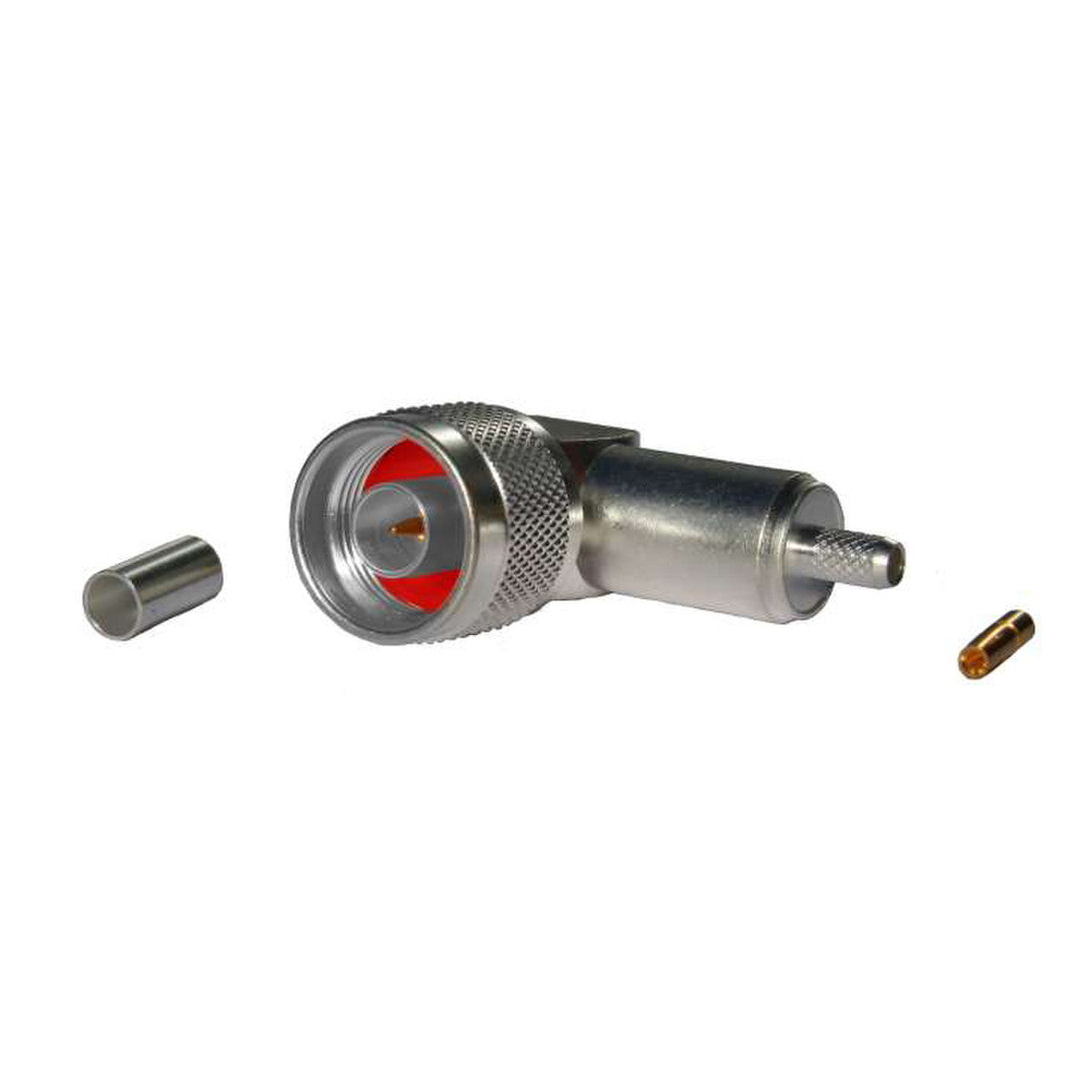

Pulse N-95 Right Angle N-Male Connector, Crimp - RG58 Cable

Pulse N-95 Right Angle N-Male Connector, Crimp - RG58 Cable

Sold out

Brand:
Item ID:
168018396
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
N-95
The Pulse N-95 Right Angle N-Male Connector is designed for high-frequency RF applications, providing a reliable connection for RG58 and LMR-195 cables.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

The Pulse N-95 Right Angle N-Male Connector is designed for high-frequency RF applications, providing a reliable connection for RG58 and LMR-195 cables. This right-angle connector ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

Product Features:

  • The Pulse N-95 is a right-angle cable plug crimp, suitable for RG58 and LMR-195 cables.
  • It operates over a wide frequency range from 0 MHz to 6000 MHz.
  • The connector has an impedance of 50 ohms, ensuring compatibility with standard RF systems.
  • The connector end is N-Male, providing a secure and stable connection.
  • The mounting angle is right, facilitating easy installation in tight spaces.
  • The centre conductor is captive and crimped, ensuring reliable performance.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections for RG58 and LMR-195 cables.

In the Box:

  • 1 x Pulse N-95 Right Angle N-Male Connector

Product Specifications

MPN N-95
Brands Pulse
Cable supported RG58, LMR-195
Cable type RG58
Cable type connectors RG58
Centre conductor Captive, Crimp
Component type Connector
Connector N(M)
Connector end a N (M)
Crimp set or tool A
Height 2
Impedance ohm 50
Inner attachment Crimp
Length 4
Max frequency mhz 6000
Min frequency mhz 0
Mounting angle Right Angle
Prep toolset Crimp Set A
Width 2
