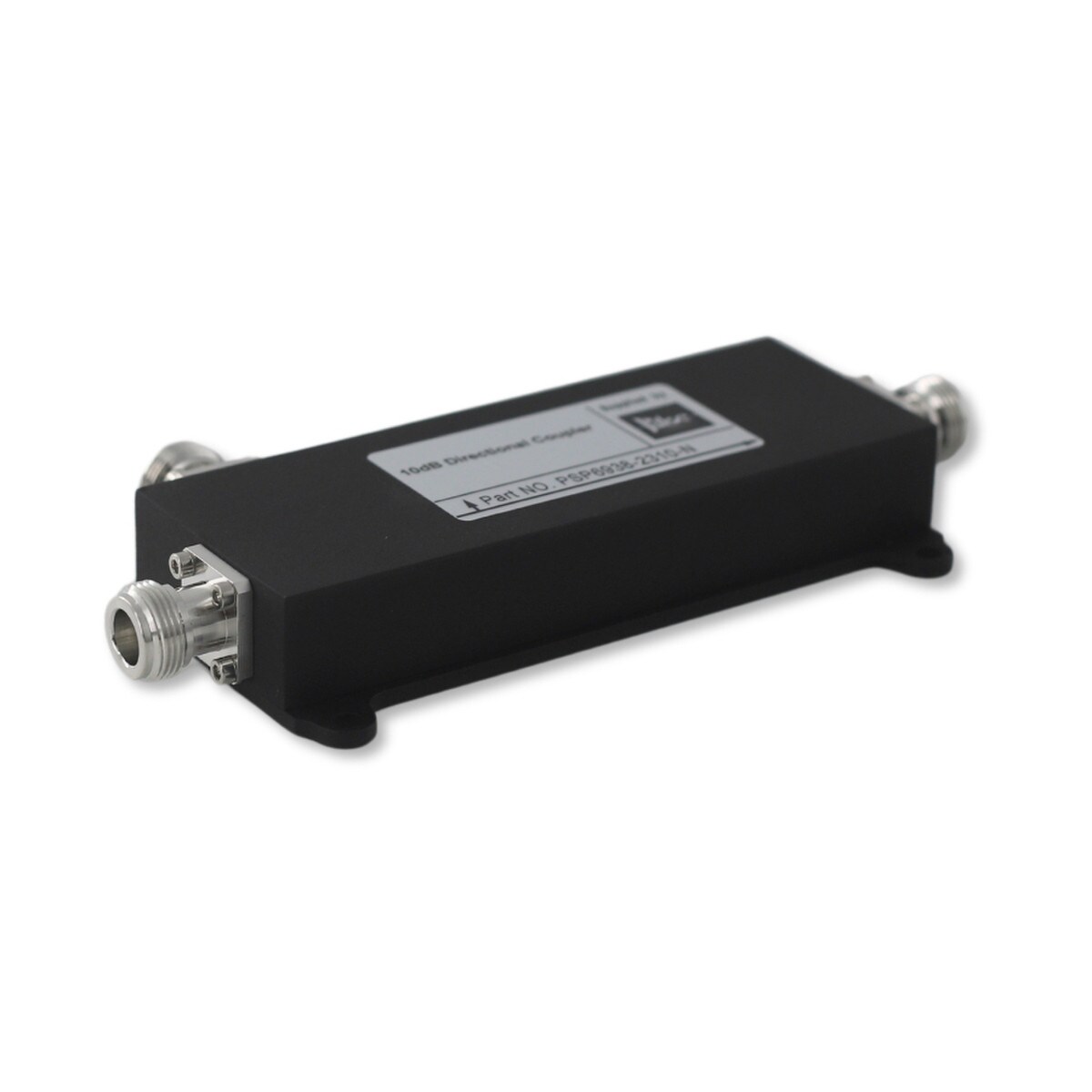

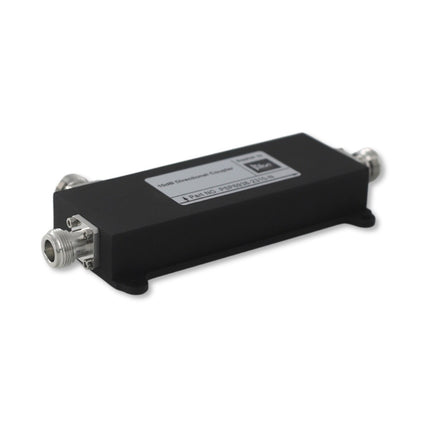

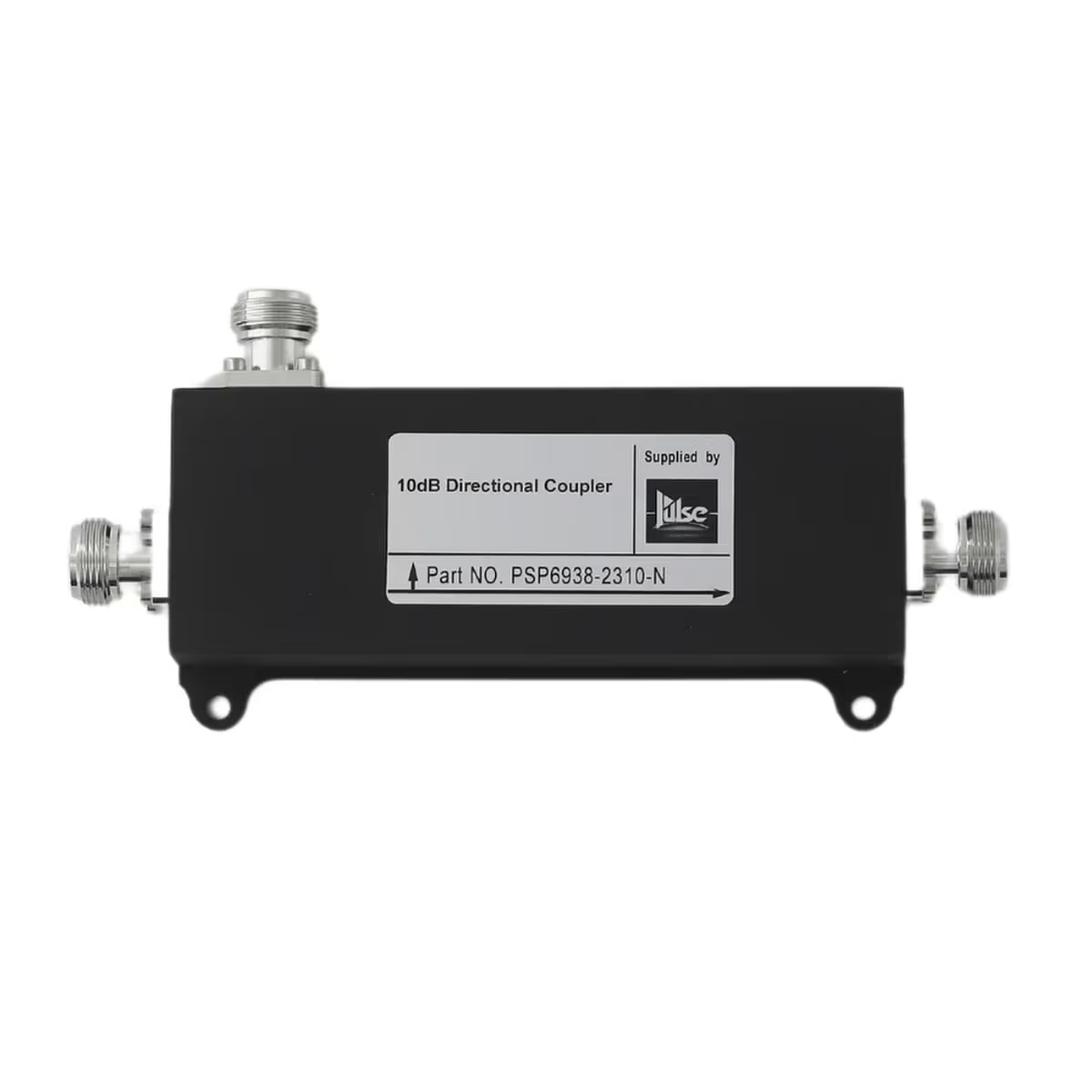

Pulse PSP6938-2310-N 3-Port Directional Coupler, 10dB, 698-3800 MHz, N-Female

    Pulse PSP6938-2310-N 3-Port Directional Coupler, 10dB, 698-3800 MHz, N-Female

      Product form
      Brand:
      Pulse
      Item ID:
      168073242
      MPN:
      PSP6938-2310-N
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Pulse PSP6938-2310-N is a wideband 10dB 3-port directional coupler designed for the 698-3800 MHz frequency range, featuring N-female connectors.

      Available

      $73.83

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse PSP6938-2310-N is a wideband 10dB 3-port directional coupler designed for the 698-3800 MHz frequency range, featuring N-female connectors. It is allowing a small portion of the main transmission line signal to be tapped for monitoring or redistribution.

        Product Features:

        • Directional coupler for controlled RF signal splitting.
        • 10dB coupling factor for precise signal tapping.
        • Wideband frequency range (698-3800 MHz) for versatile applications.
        • N-female connectors for secure and reliable connections.
        • Low insertion loss and excellent return loss characteristics.

        Application Areas:

        • Wireless communication networks (5G, LTE, Wi-Fi, DAS).
        • Public safety and emergency radio systems.
        • RF power monitoring and signal sampling.
        • Broadcast and telecommunication infrastructure.
        • Test and measurement applications in RF systems.

        In the Box:

        • 1 x Pulse PSP6938-2310-N Wideband 10dB Directional Coupler

        Documents:

        Pulse PSP6938-2310-N Coupler - Datasheet

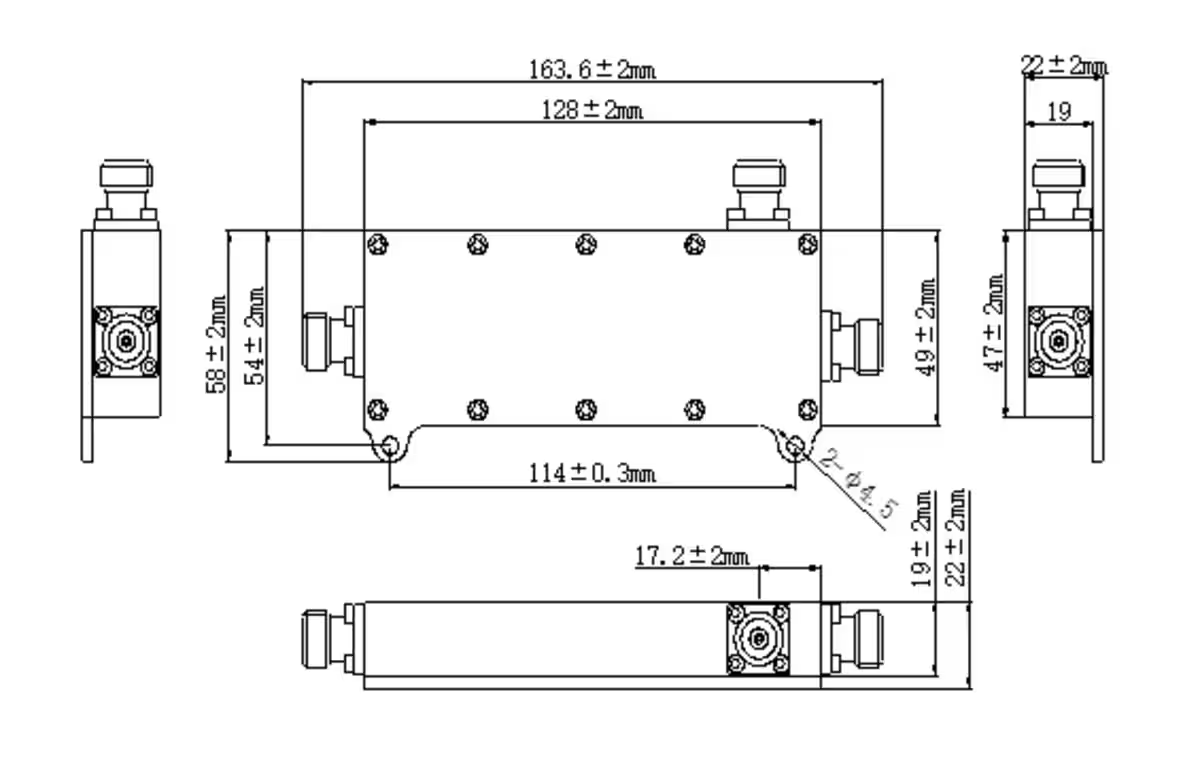

        Product Specifications

        Brand Pulse
        Length 5
        Width 15
        Height 10
        Component Type Directional Coupler
        Connector N(F)
        Coupled Loss [dB] 10
        Frequency Range [MHz] 698 - 3800
        Impedance 50 Ohm
        IP Rating IP65
        Operating Temperature [°C] -25 to +65
        Power [W] 300
        Return Loss [dB] > 19
        VSWR ≤ 1.25
