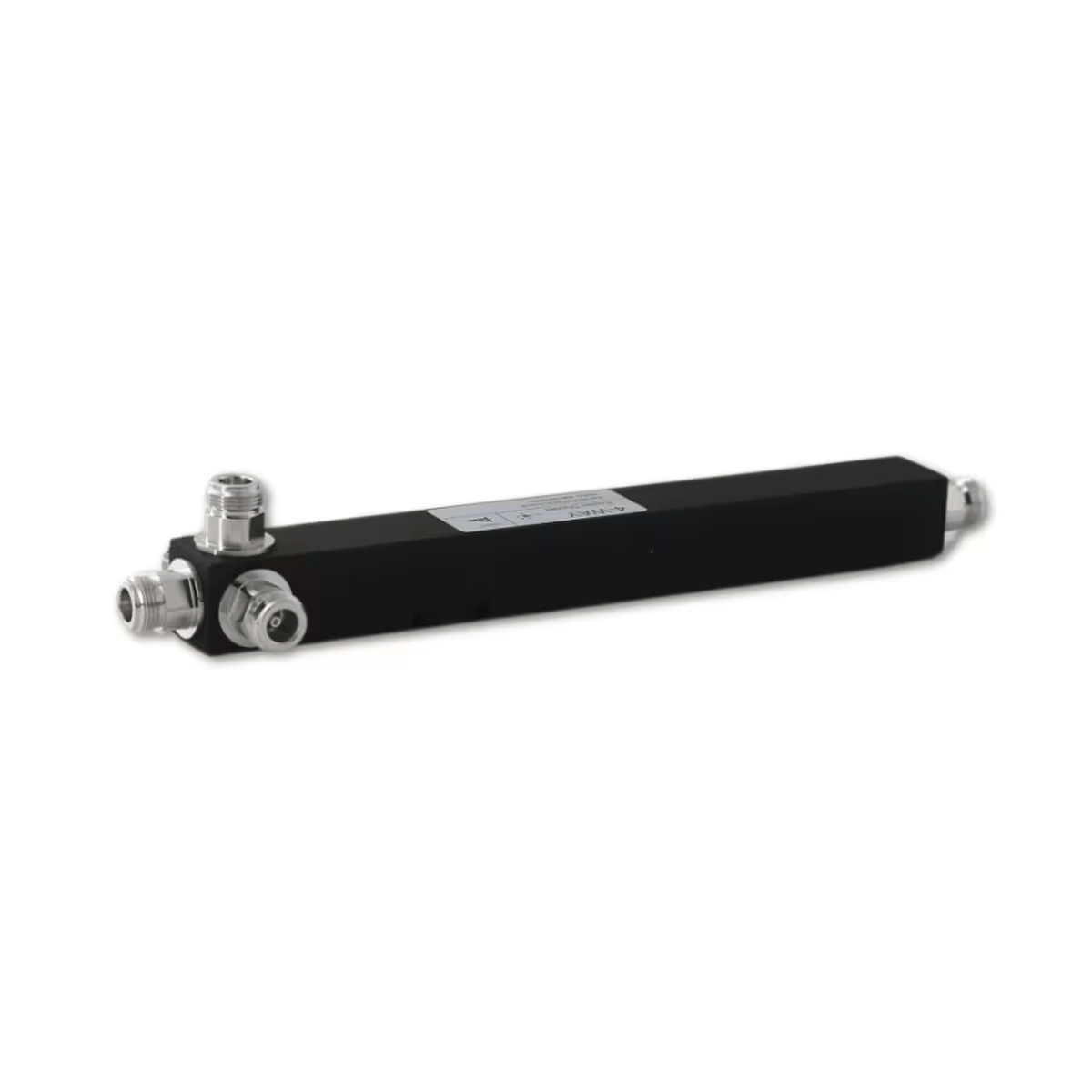

Pulse PSP6938-5104-N Wideband 4-Way Reactive Power Divider is designed for splitting RF input signals evenly into four ports. Operating within the frequency range of 698–3800 MHz, it features N (F) connectors and offers reliable performance for applications requiring signal distribution without providing isolation between output ports. All ports need to be connected to 50 Ohms. Any unused ports should terminate with a “dummy” resistive coaxial load or cable load.

Product Features:

• It is suitable for a variety of RF applications with wide frequency range 698–3800 MHz.
• Four output ports to evenly split RF input signals.
• N (F) connectors for secure and reliable RF connections.
• Does not provide isolation between output ports, suitable for signal distribution.
• Ideal for splitting RF signals for test setups, testing equipment, and research applications.

Application Areas:

• Signal splitting for RF testing and measurement applications.
• Ideal for communication systems requiring multiple signal paths.
• Used in research, development, and signal distribution for various telecom and broadcast systems.

In the Box:

• 1 x Pulse PSP6938-5104-N Wideband 4-Way Reactive Power Divider.

Documents:

Pulse PSP6938-5104-N 4-way Power Divider - Datasheet
